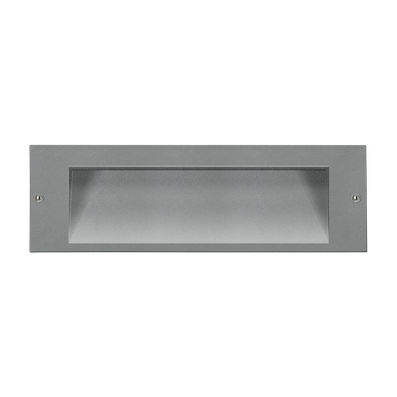

Part number 071405
Lampholder: LED
Wattage: 11 W
Finish: GR-94 / ALUMINUM METALLIC / TEXTURED
Degree of protection: IP 65
CRI: 80
Kelvin: 3000
Optic: Asymmetric Wide Reflector
Luminaire lumen output: 503 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277V

Description

  • Recessed wall or step light series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and trim.
  • - Frosted, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - IESNA Type III light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired cable is factory sealed to housing with a cable gland allowing external electrical connections.
  • - Stainless steel recessed rough-in kit available (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

PHOTOMETRIC DATA

Photometric Lvk INSERT+ 2    [11.18”] 1
Photometric Lvk INSERT+ 2    [11.18”] 2

TECHNICAL DRAWINGS

Tech Design INSERT+ 2    [11.18”]

MANDATORY ACCESSORIES

INSERT+ 2

Rough In kit Insert+ 2
310486
Rough In kit Insert+ 2
