SPILLO

IN
SPILLO
SPILLO
SPILLO
SPILLO - 1
SPILLO - 2
SPILLO - 3
Part number 071427
Lampholder: LED
Wattage: 65 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 70
Kelvin: 3000
IESNA Type: Type II
BUG Rating: B2-U0-G1
Luminaire lumen output [lm]: 4177 lm
L: L90
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 35

Description

  • Area and site lighting series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and top cap.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - The "Secure Light Distribution" system can bypass individual diodes in the event of a single LED failure to ensure continuous uniform light distribution.
  • - Type II light distribution.
  • - Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Ø3” and Ø4” post top adapters, and poles in 8’ / 10’ / 12 ’/ 14’ options available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

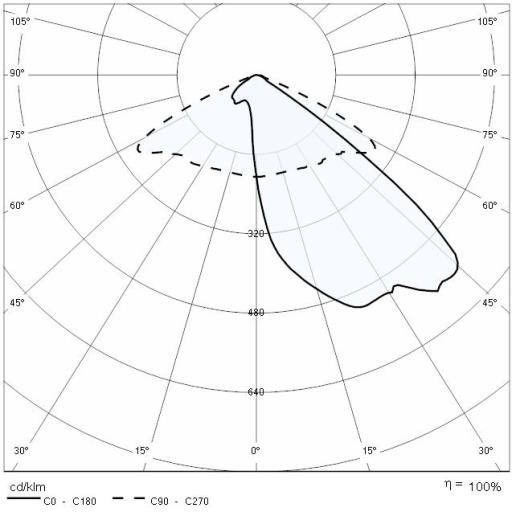

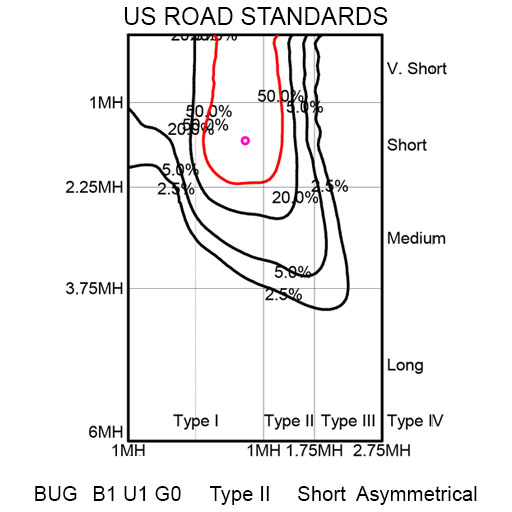

Photometric data

Technical drawings

Tech Design SPILLO 1++

OPTIONAL ACCESSORIES

SPILLO

90013
Adapter pole top 3"
Iron gray
DownloadDownloads

Documentation: SPILLO - 90013

90014
Adapter pole top 4"
Iron gray
DownloadDownloads

Documentation: SPILLO - 90014

POLES

71408
Pole 8' (4" diameter)
Iron gray
71410
Pole 10' (4" diameter)
Iron gray
71412
Pole 12' (4" diameter)
Iron gray
71414
Pole 14' (4" diameter)
Iron gray
