MIMIK 10 FLAT M

IN
MIMIK 10 FLAT M
MIMIK 10 FLAT M
MIMIK 10 FLAT M
MIMIK 10 FLAT M
MIMIK 10 FLAT M - 1
MIMIK 10 FLAT M - 2
MIMIK 10 FLAT M - 3
MIMIK 10 FLAT M - 4
Part number 071498
Lampholder: LED
Wattage: 10 W
Finish: WH-87 / WHITE / TEXTURED
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Luminaire lumen output: 810 lm
L: L80
B: B10
Lifetime: 54000 h
cULus:
Voltage: 120-277V

Description

  • Wall sconce series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, flat, tempered silk screened soda-lime glass diffuser (FLAT versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Single (M) or dual (B) light emission.
  • - IESNA Type III light distribution (FLAT).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

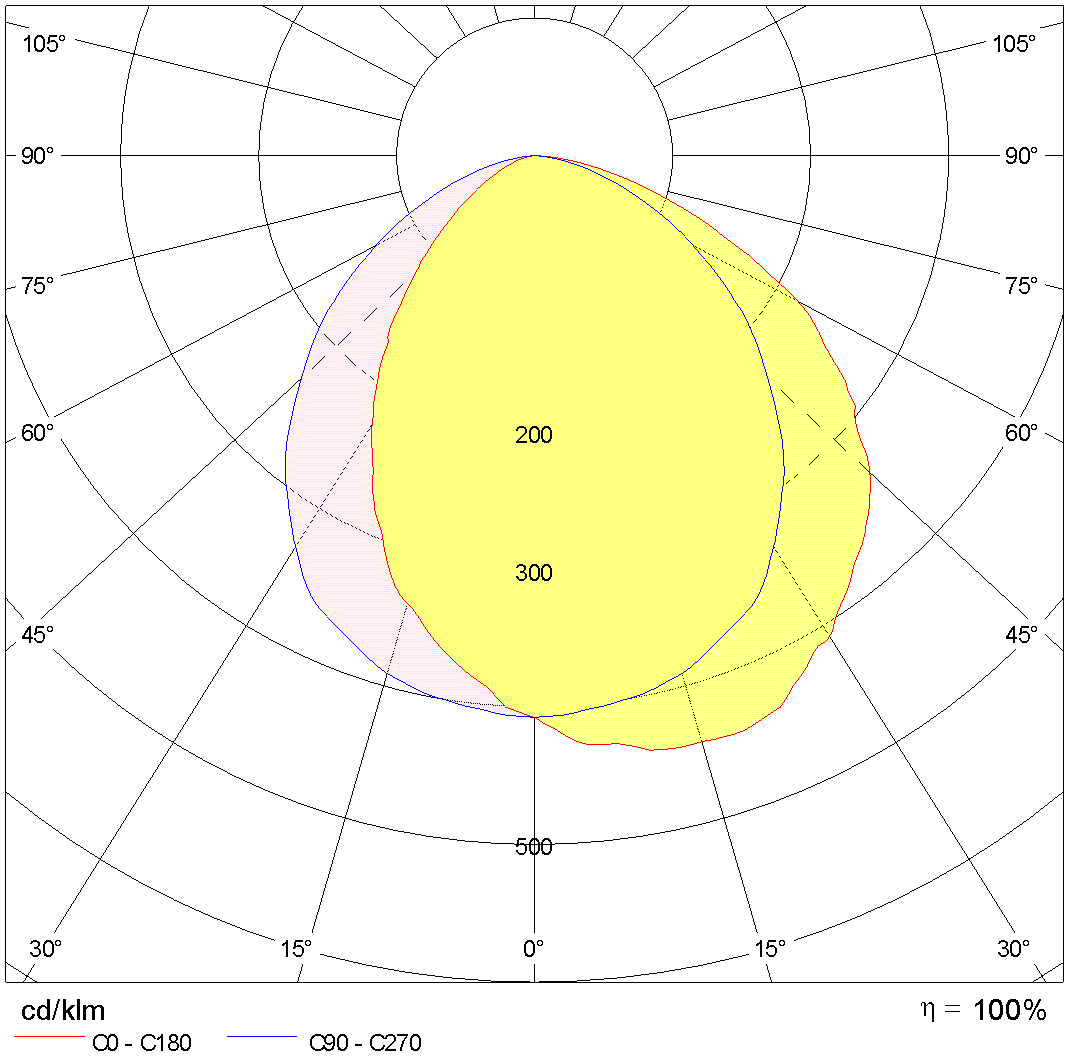

Photometric data

Photometric Lvk MIMIK 10 FLAT M 1

Technical drawings

Tech Design MIMIK 10 FLAT M
