Part number 071520
Lampholder: LED
Wattage: 10 W
Finishing: WH-87 / White / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Luminaire lumen output [lm]: 925 lm
L: L80
B: B10
Lifetime: 54000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -20
Max. ambient temperature [°C]: 45

Description

  • Wall sconce series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, tempered, silk-screened, flat glass diffuser (FLAT versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Single (M) or dual (B) light emission.
  • - Type III light distribution (FLAT).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Customizing facade faceplate available for various versions (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

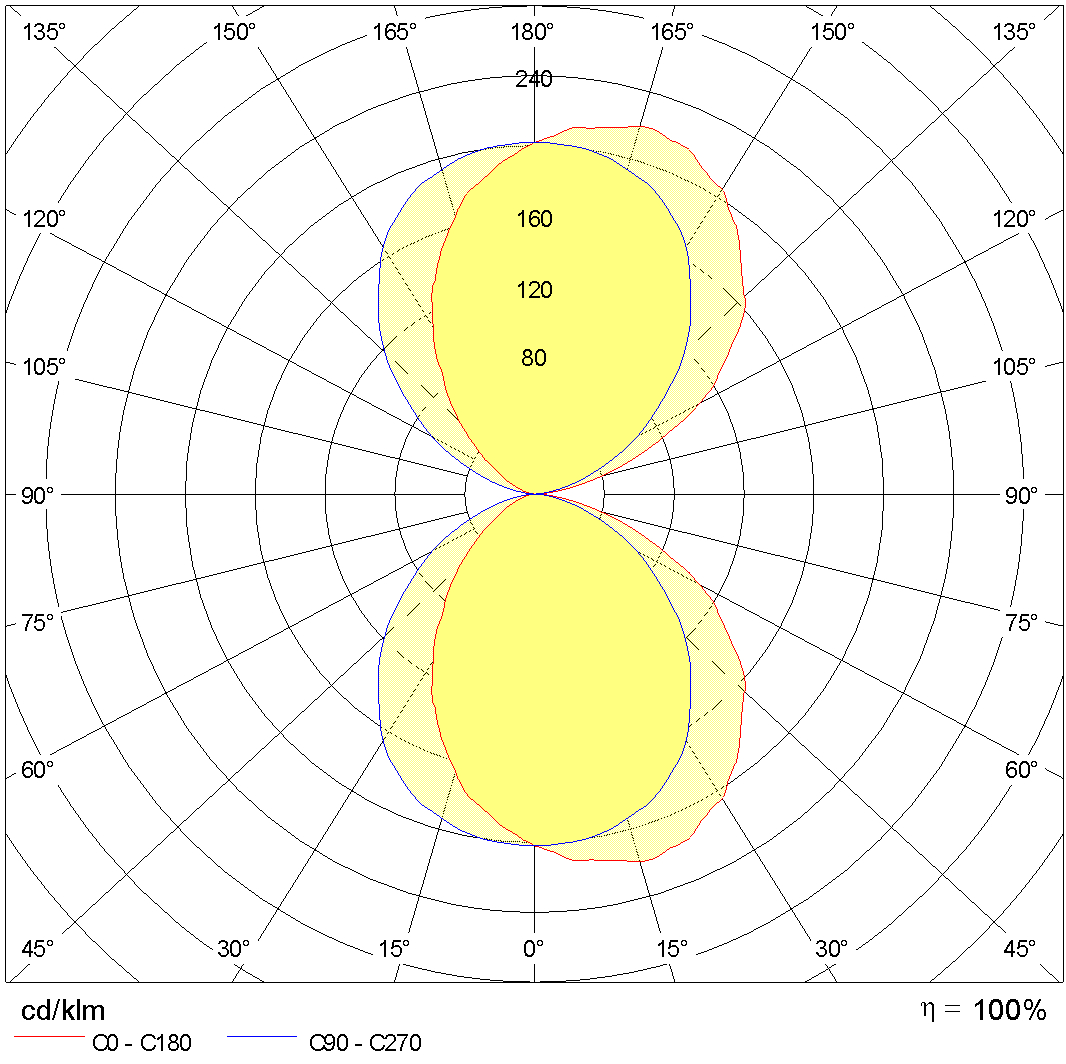

Photometric data

Technical drawings

Tech Design MIMIK 10 FLAT B 1++

OPTIONAL ACCESSORIES

MIMIK FLAT B

3106889
Customising ring / Facade Accessory
White
DownloadDownloads

Documentation: MIMIK 10 - 3106889
