MIMIK 10 BOLLARD 600

IN
MIMIK 10 BOLLARD 600
MIMIK 10 BOLLARD 600
MIMIK 10 BOLLARD 600
MIMIK 10 BOLLARD 600 - 1
MIMIK 10 BOLLARD 600 - 2
MIMIK 10 BOLLARD 600 - 3
Part number 071794
Lampholder: LED
Wattage: 11 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 70
Kelvin: 4000
Optic: Asymmetric intensive reflector
Luminaire lumen output: 915 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120-277 V

Description

  • Pathway bollard series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and ring/faceplate.
  • - Copper-free aluminum extruded post.
  • - Extra-clear, flat, tempered silk-screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - IESNA Type II light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Steel ground base plate included for bollards.
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options.
  • - Consult factory for custom post height options.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

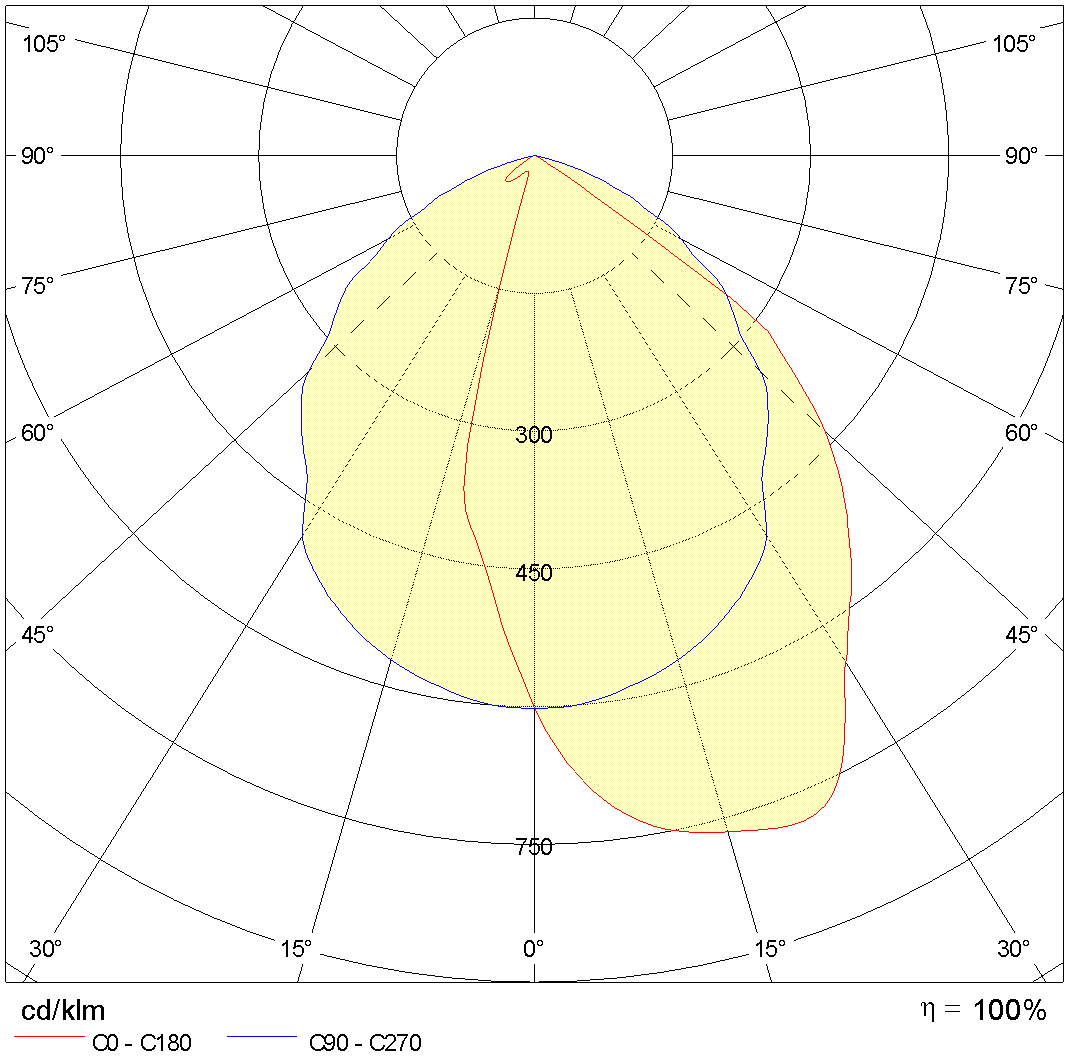

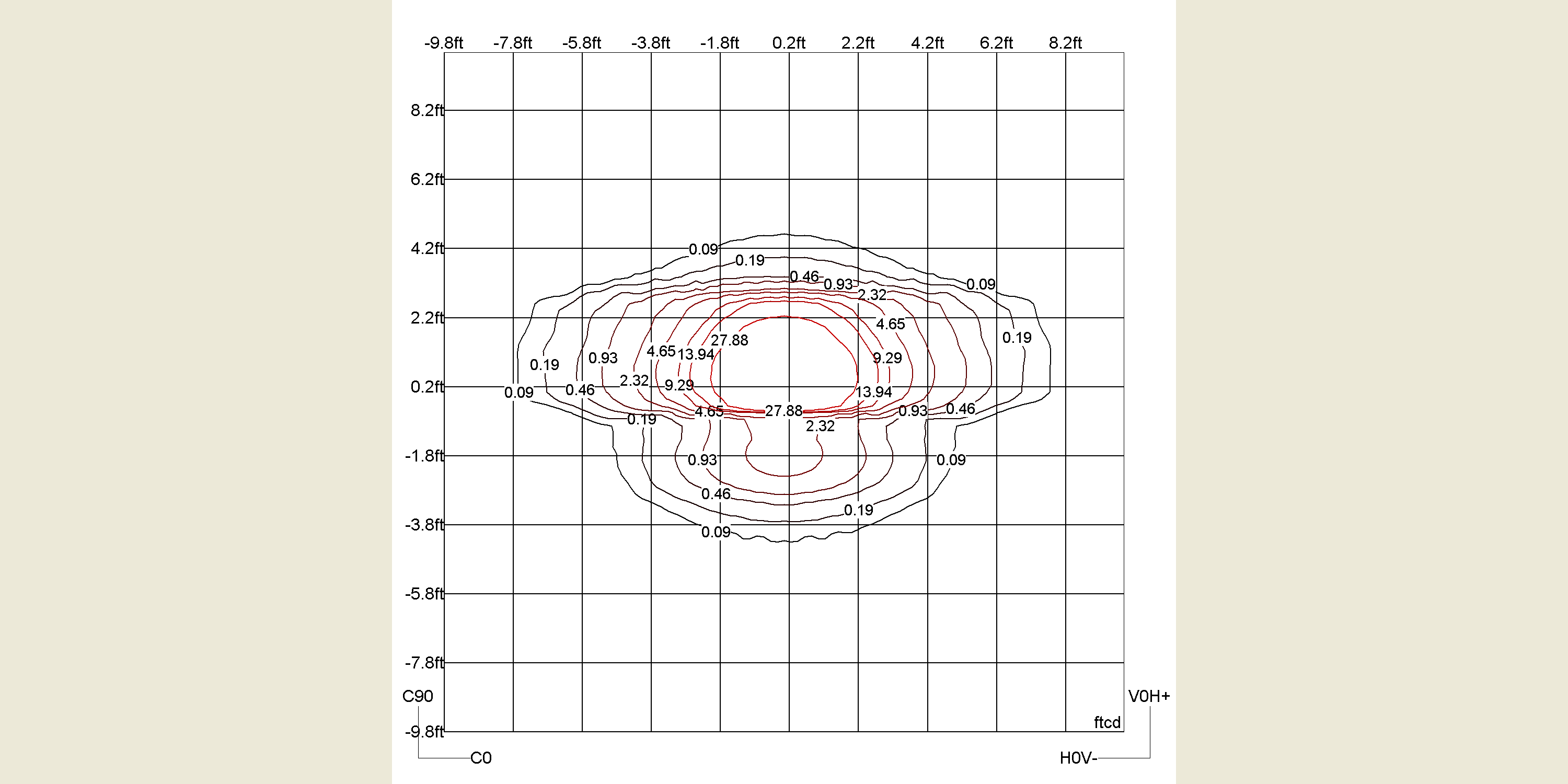

Photometric data

Photometric Lvk MIMIK 10 BOLLARD 600 1
Photometric Lvk MIMIK 10 BOLLARD 600 2

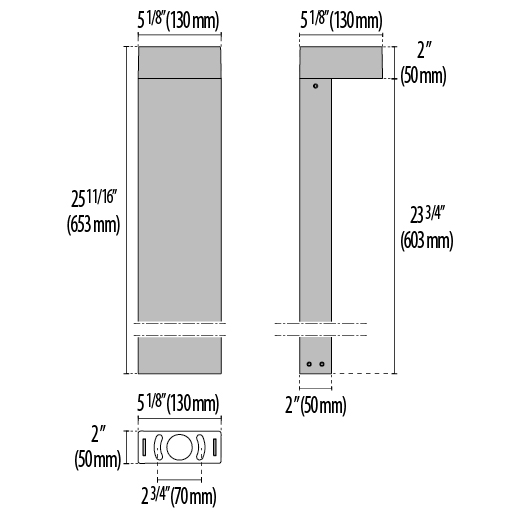

Technical drawings

Tech Design MIMIK 10 BOLLARD 600
