FOCUS+ 2 C/I

IN
FOCUS+ 2 C/I
FOCUS+ 2 C/I
FOCUS+ 2 C/I
FOCUS+ 2 C/I
FOCUS+ 2 C/I - 1
FOCUS+ 2 C/I - 2
FOCUS+ 2 C/I - 3
FOCUS+ 2 C/I - 4
Part number 071850
Lampholder: LED
Wattage: 27 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 70
Kelvin: 4000
Optic: Circular Intensive
Beam angle: 17°
Nema Type: 3H x 3V
Luminaire lumen output [lm]: 2189 lm
L: L70
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 25

Description

  • Long-lasting energy-efficient floodlight series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing, ring/faceplate, and adjustable mounting arm.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Circular Intensive optics (C/I).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Matching junction box plate optional accessory available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

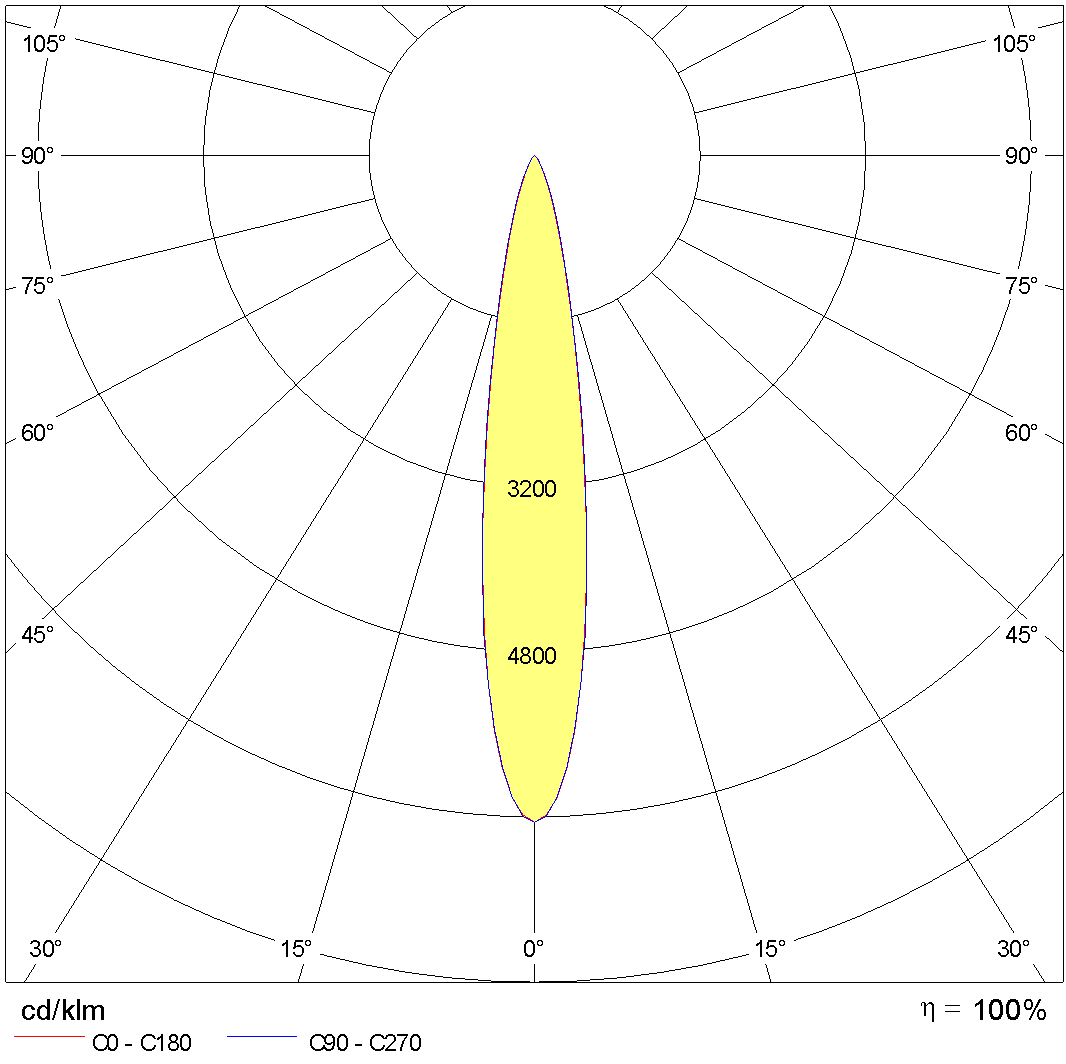

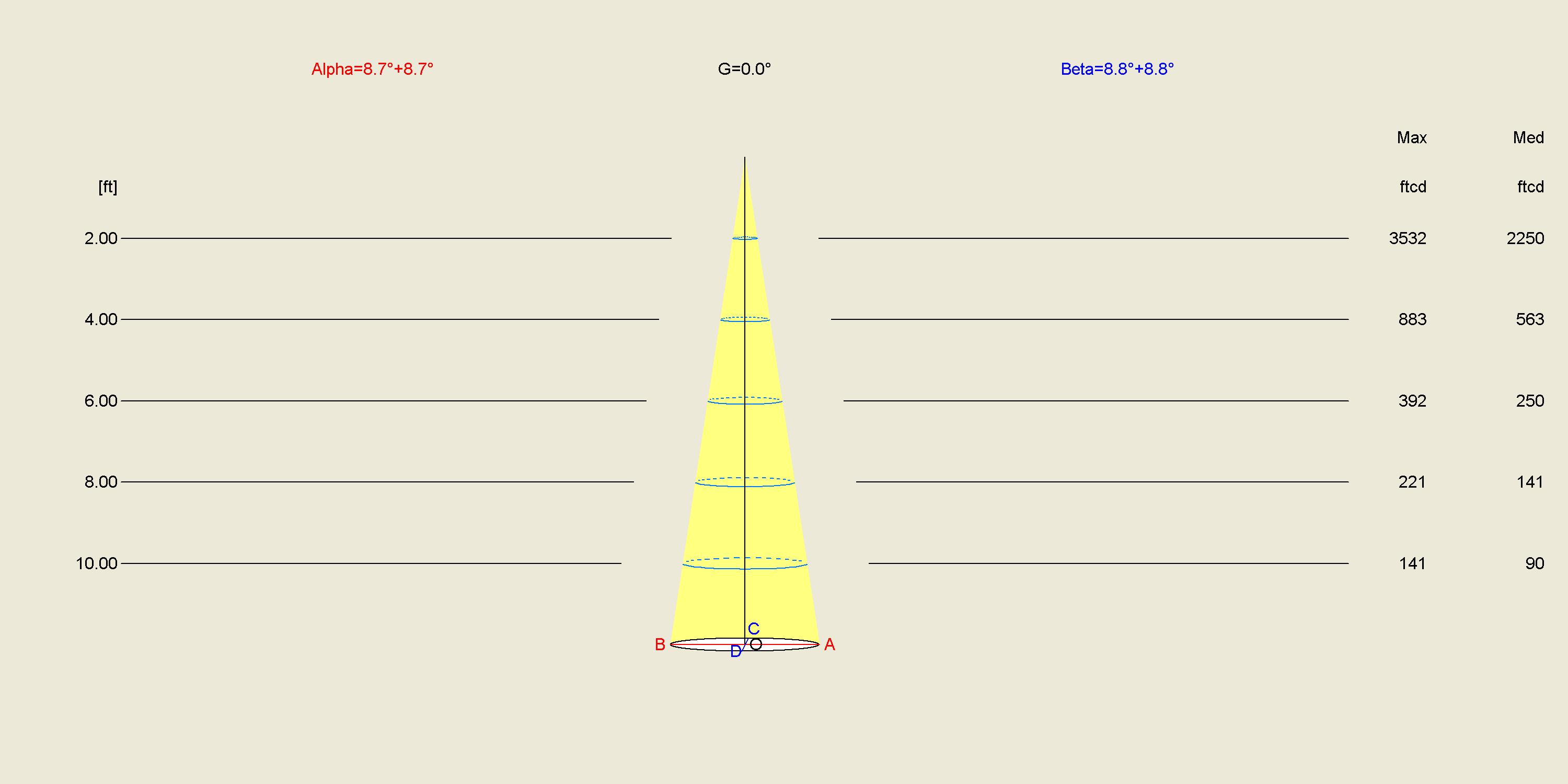

Photometric data

Technical drawings

Tech Design FOCUS+ 2 C/I 1++

OPTIONAL ACCESSORIES

FOCUS+ 2

07959
JBox cover plate - Iron gray
Iron gray
DownloadDownloads

Documentation: FOCUS+ 2 - 07959
