INSERT+3 TYPE II

IN
INSERT+3 TYPE II
INSERT+3 TYPE II
INSERT+3 TYPE II
INSERT+3 TYPE II - 1
INSERT+3 TYPE II - 2
INSERT+3 TYPE II - 3
Part number 071978
Lampholder: LED
Wattage: 26 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 70
Kelvin: 4000
Optic: Asymmetric Wide
IESNA Type: Type II
Luminaire lumen output [lm]: 1399 lm
L: L80
B: B10
Lifetime: 125000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 35

Description

  • Recessed wall steplight series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and ring/faceplate.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Extra-clear, tempered, flat glass diffuser.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Type II light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Stainless steel recessed rough-in kit to be ordered separately.
  • - Suitable for concrete or hollow wall applications.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

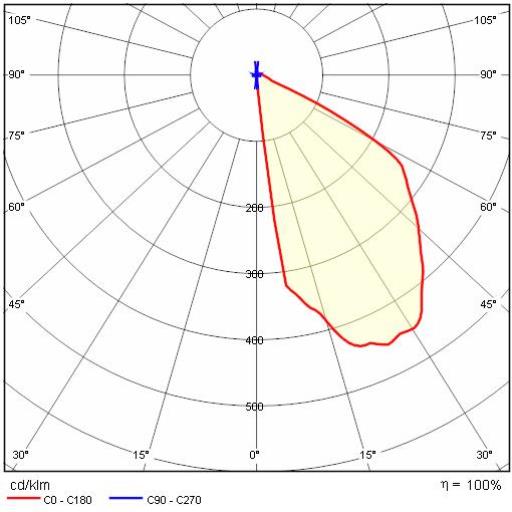

Photometric data

Photometric Lvk INSERT+3 TYPE II 1

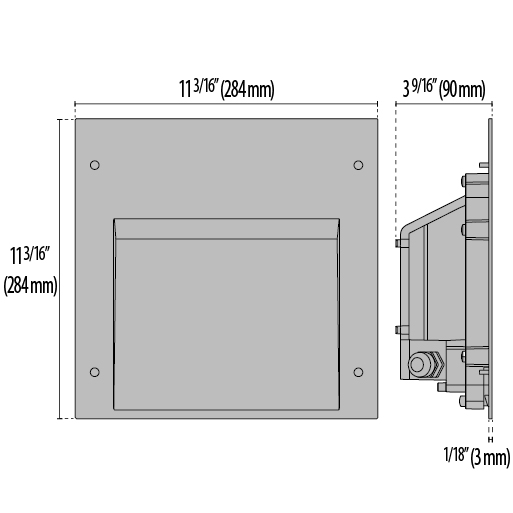

Technical drawings

Tech Design INSERT+3 TYPE II

REQUIRED FOR INSTALLATION

INSERT+3

Rough-In kit INSERT+3
3100883
Rough-In kit INSERT+3
Stainless steel
