MIMIK 10 BOLLARD 1000 HU

MIMIK 10 BOLLARD 1000 HU
MIMIK 10 BOLLARD 1000 HU
MIMIK 10 BOLLARD 1000 HU

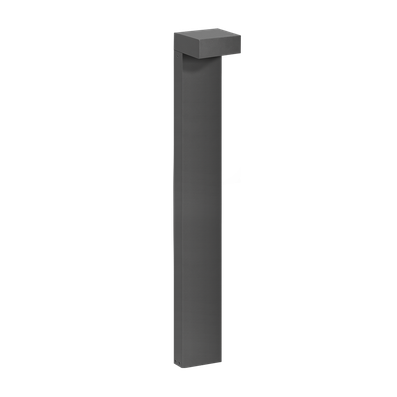

MIMIK 10 BOLLARD 1000 HU - 1

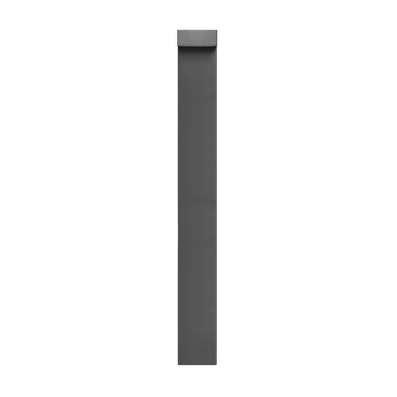

MIMIK 10 BOLLARD 1000 HU - 2

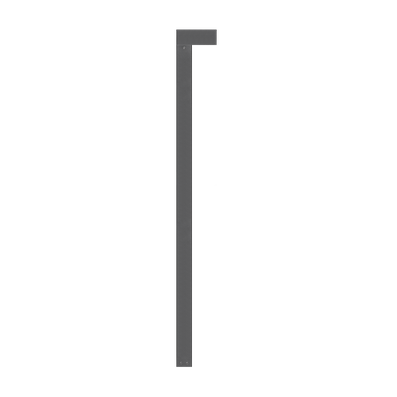

MIMIK 10 BOLLARD 1000 HU - 3
Part number 072012
Lampholder: LED
Wattage: 10 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 70
Kelvin: 3000
Optic: Cycle/Pedestrian Type III
IESNA Type: Type III
BUG Rating: B0-U0-G0
Luminaire lumen output [lm]: 633 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 35

Description

  • Pathway bollard series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and ring/faceplate.
  • - Copper-free (<1%) aluminum extruded post.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Type III light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Steel ground base plate available as accessory for HU versions (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
  • - 5-year warranty.

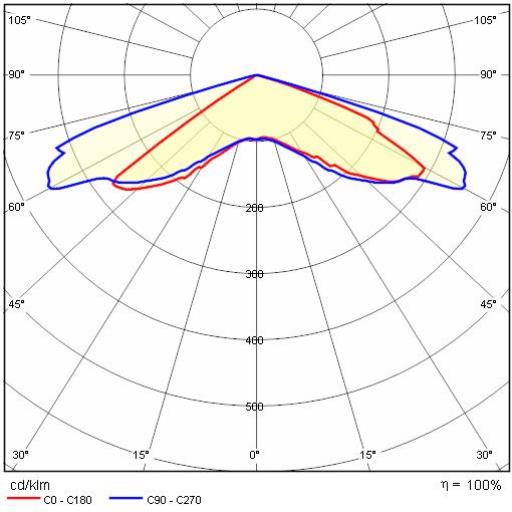

Photometric data

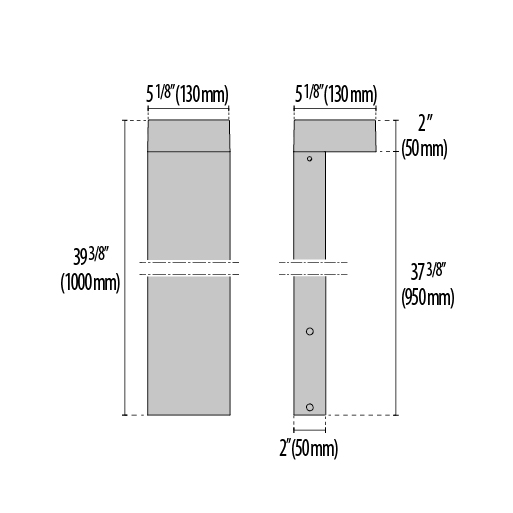

Technical drawings

Tech Design MIMIK 10 BOLLARD 1000 HU 1++

REQUIRED FOR INSTALLATION

MIMIK 10 BOLLARD 1000

3112992

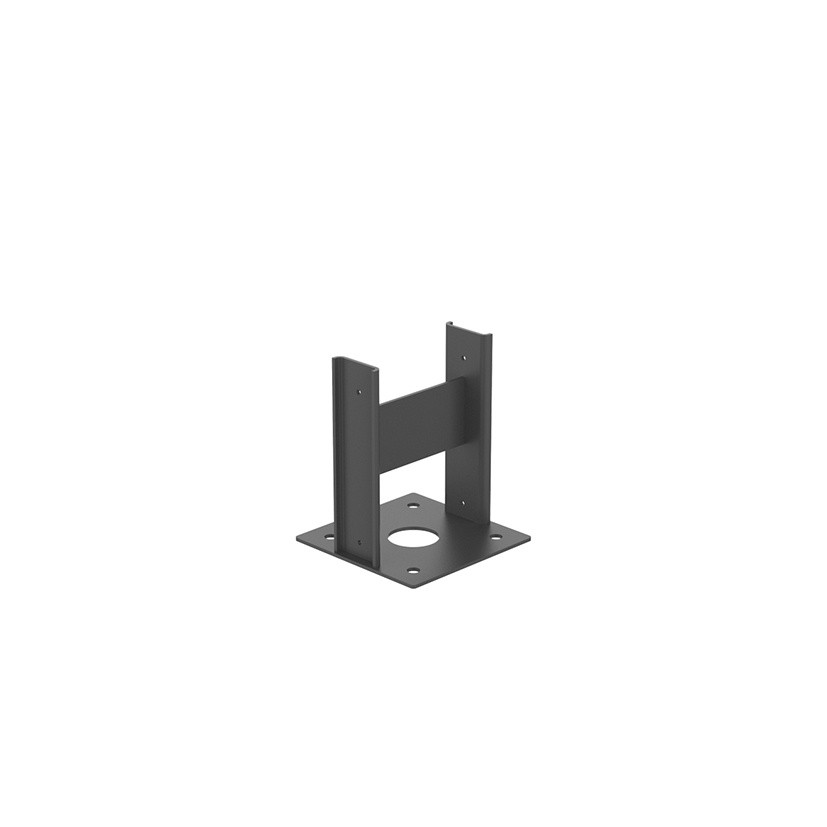

Plate HU MIMIK10 POST
Anthracite gray
