MASK+ B

IN
MASK+ B
MASK+ B
MASK+ B
MASK+ B - 1
MASK+ B - 2
MASK+ B - 3
Part number 072037
Lampholder: LED
Wattage: 24 W
Finish: WH-87 / WHITE / TEXTURED
Degree of protection: IP 65
CRI: 80
Kelvin: 3000
Optic: SYMMETRIC EXTRA WIDE REFLECTOR
Luminaire lumen output: 1770 lm
L: L70
B: B10
Lifetime: 50000 h
cULus:
Voltage: 120-277V

Description

  • Wall sconce series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Frosted, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Single (M) or dual (B) light emission.
  • - IESNA Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Rectangular junction box mounting plate included (RACO 8660 or similar), 4” tall accessory plate accessory to be order separately.
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

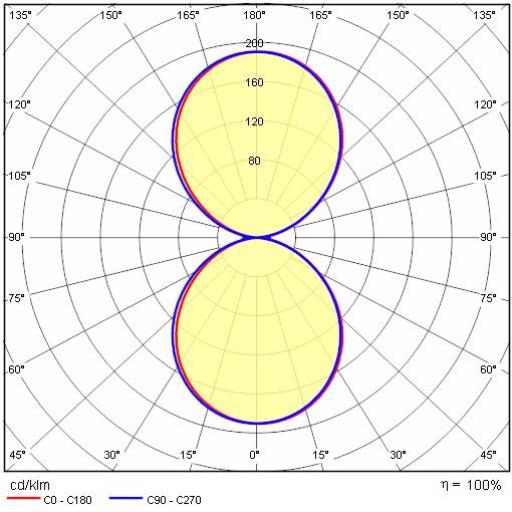

PHOTOMETRIC DATA

Photometric Lvk MASK+ B 1

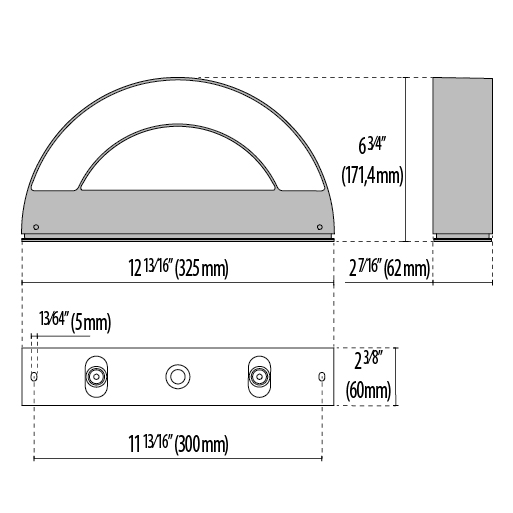

TECHNICAL DRAWINGS

Tech Design MASK+ B

OPTIONAL ACCESSORIES

MASK+

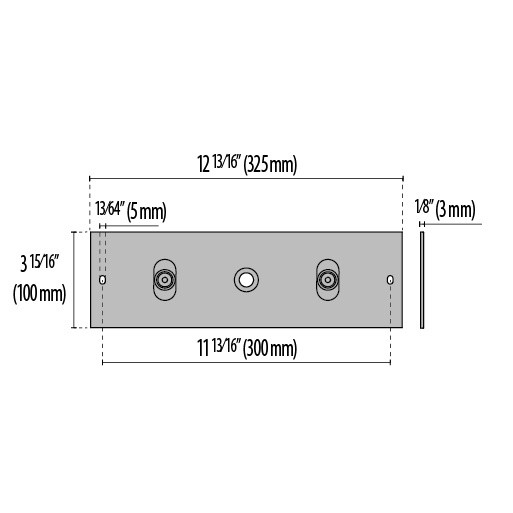

4-inch Tall Accessory Plate
3101309
4-inch Tall Accessory Plate
WHITE
