ALU TECH RV

IN
ALU TECH RV
ALU TECH RV
ALU TECH RV
ALU TECH RV - 1
ALU TECH RV - 2
ALU TECH RV - 3
Part number 074682
Lampholder: LED
Wattage: 6 W
Finish: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP66
CRI: 85
Kelvin: 4000
Optic: Asymmetric wide reflector
Luminaire lumen output: 212 lm
Lifetime: 35000 h
cULus:
Voltage: 120-277 V

Description

  • Recessed wall steplight series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision machined anodized aluminum housing and optical compartment.
  • - Frosted, flat, tempered silk-screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - IESNA Type III light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Stainless steel grounding tether included.
  • - Stainless steel recessed rough-in kit to be ordered separately.
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

Photometric data

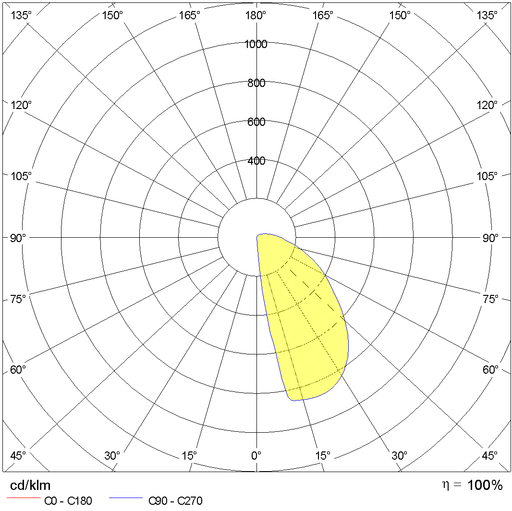

Photometric Lvk ALU TECH RV 1

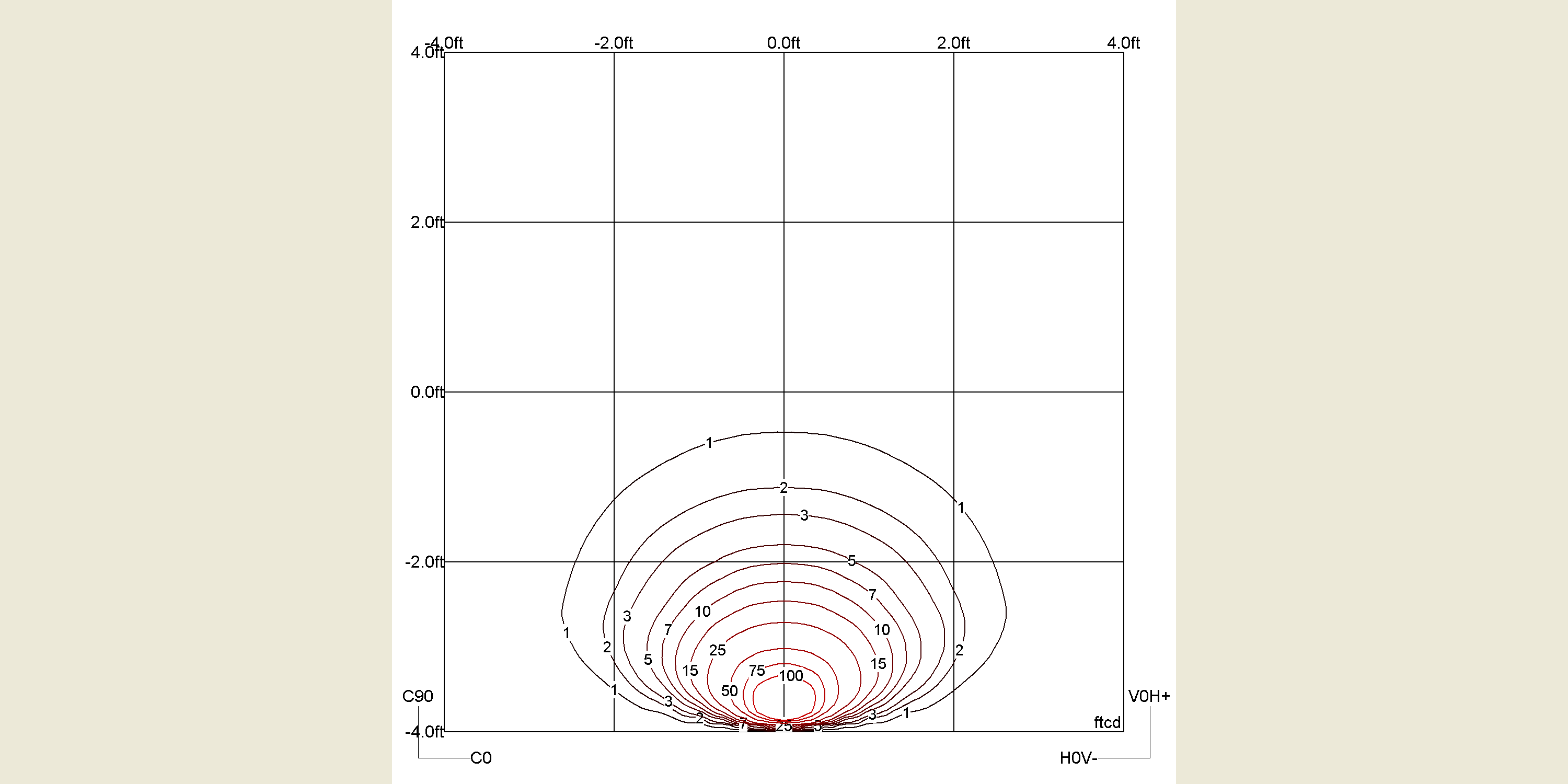

Photometric Lvk ALU TECH RV 2

Technical drawings

Tech Design ALU TECH RV

REQUIRED FOR INSTALLATION

ALU TECH RV

Recessed Alu RV
310407
Recessed Alu RV
