STEEL SQUARE 28 SIDE - 6 LED I 8°
STEEL SQUARE 28 SIDE - 6 LED I 8° - 1
Part number 075450
Lampholder: LED
Wattage: 7.6 W
Finish: INOX / STAINLESS STEEL / MATT
Degree of protection: IP 67
Kelvin: 3000
Optic: INTENSIVE CIRCLE REFLECTOR
Optic Beam:
Luminaire lumen output: 344 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277V

Description

  • In-ground series. Fixtures consist of:
  • - Copper-free die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel trim.
  • - Extra-clear, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Standard aimable optic system (±7°).
  • - High-transmittance transparent optics.
  • - 8° x 8° beam angle (C/I).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - COMPACT reduced depth rough-in comes with formed steel bars to provide support in drive-over applications and is designed to encourage water drainage.
  • - Each rough-in kit is delivered with a protective cover to avoid possible deformations during the installation in concrete and a bubble level to simplify installation.
  • - Standard easy-to-adjust mounting system that enables the fixture to be easily aimed even after installation.
  • - Rough-in kit to be ordered separately.
  • - For outdoor applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - Consult factory for custom finishes and non-catalogued CCT (Kelvin) options.
  • - Consult factory for frosted or non-slip glass options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

PHOTOMETRIC DATA

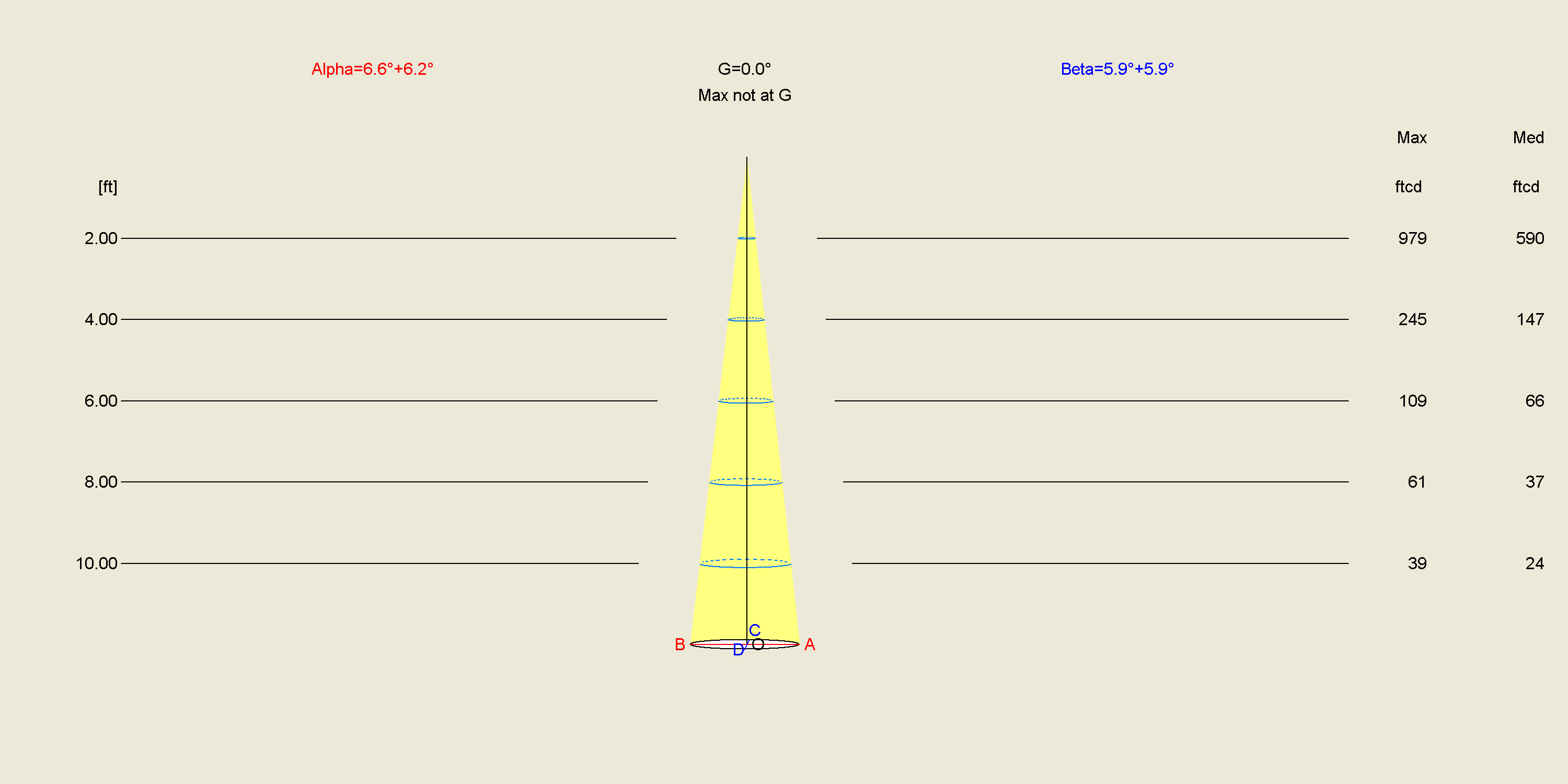

Photometric Lvk STEEL SQUARE 28 SIDE - 6 LED I 8° 1

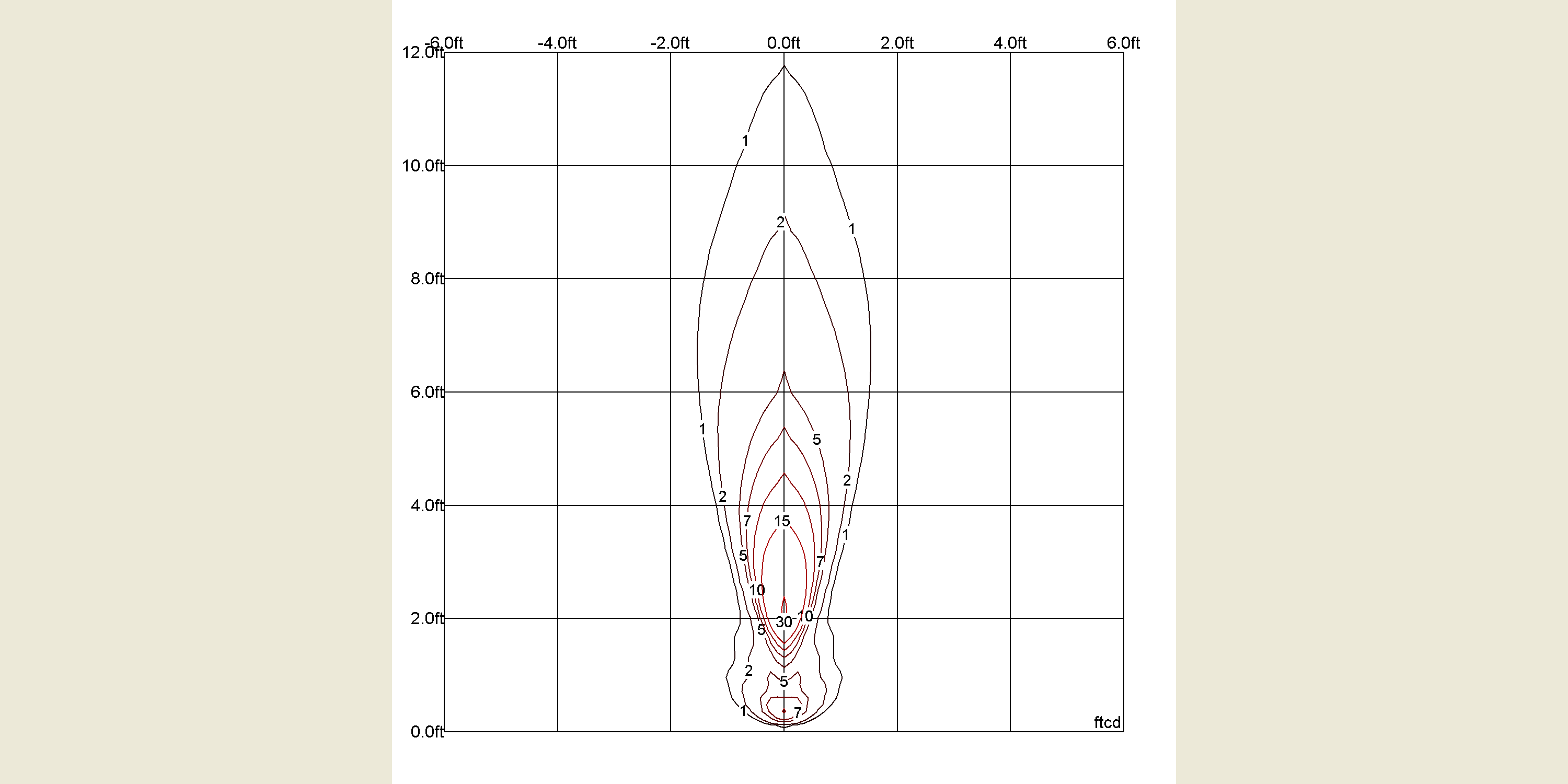

Photometric Lvk STEEL SQUARE 28 SIDE - 6 LED I 8° 2

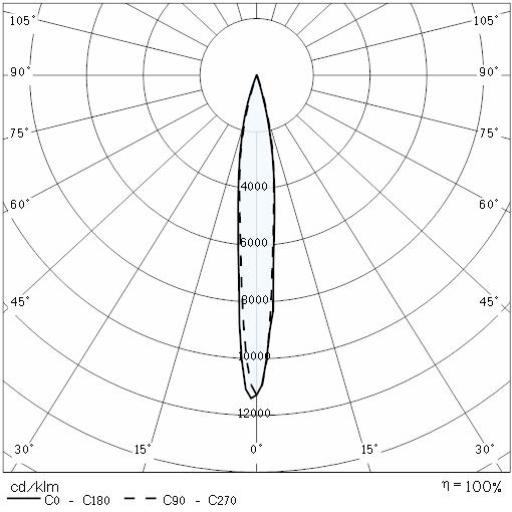

Photometric Lvk STEEL SQUARE 28 SIDE - 6 LED I 8° 3

TECHNICAL DRAWINGS

Tech Design STEEL SQUARE 28 SIDE - 6 LED I 8°

MANDATORY ACCESSORIES

STEEL SQUARE 28

Steel Recessed Fixing Kit, Square 28
310374
Steel Recessed Fixing Kit, Square 28
