STEEL SQUARE 28 SIDE - 6 LED ELL 10°X45

Description

• In-ground series. Fixtures consist of:
• - Copper-free die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel trim.
• - Extra-clear, flat, tempered silk screened soda-lime glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
• - Standard aimable optic system (±7°).
• - High-transmittance transparent optics.

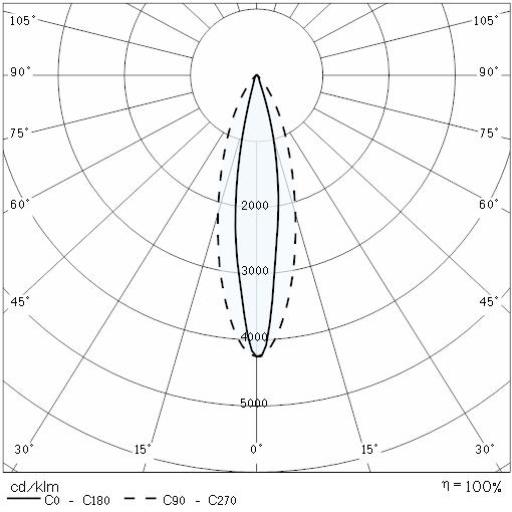

• - 10° x 45° beam angle (ELL).
• - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
• - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
• - COMPACT reduced depth rough-in comes with formed steel bars to provide support in drive-over applications and is designed to encourage water drainage.
• - Each rough-in kit is delivered with a protective cover to avoid possible deformations during the installation in concrete to simplify installation.
• - Standard easy-to-adjust mounting system that enables the fixture to be easily aimed even after installation.
• - Rough-in kit to be ordered separately.
• - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
• - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
• - Consult factory for frosted or non-slip glass options.
• - Product meets Buy American requirements within ARRA.
• - 5-year warranty.
