STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45

IN
STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45
STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45
STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45 - 1
STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45 - 2
Part number 075736
Lampholder: LED
Wattage: 9.6 W
Finishing: INOX / Stainless steel / Matt
Degree of protection: IP67
CRI: 80
Kelvin: 3000
Optic: Elliptical
Beam angle: 10°x45°
Luminaire lumen output [lm]: 372 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 35

Description

  • In-ground series. Fixtures consist of:
  • - Copper-free (<1%) die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel trim.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Standard aimable optic system (±7°).
  • - Elliptical optics (ELL).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - Thermoplastic compression-molded rough-in kit to be ordered separately.
  • - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

Photometric data

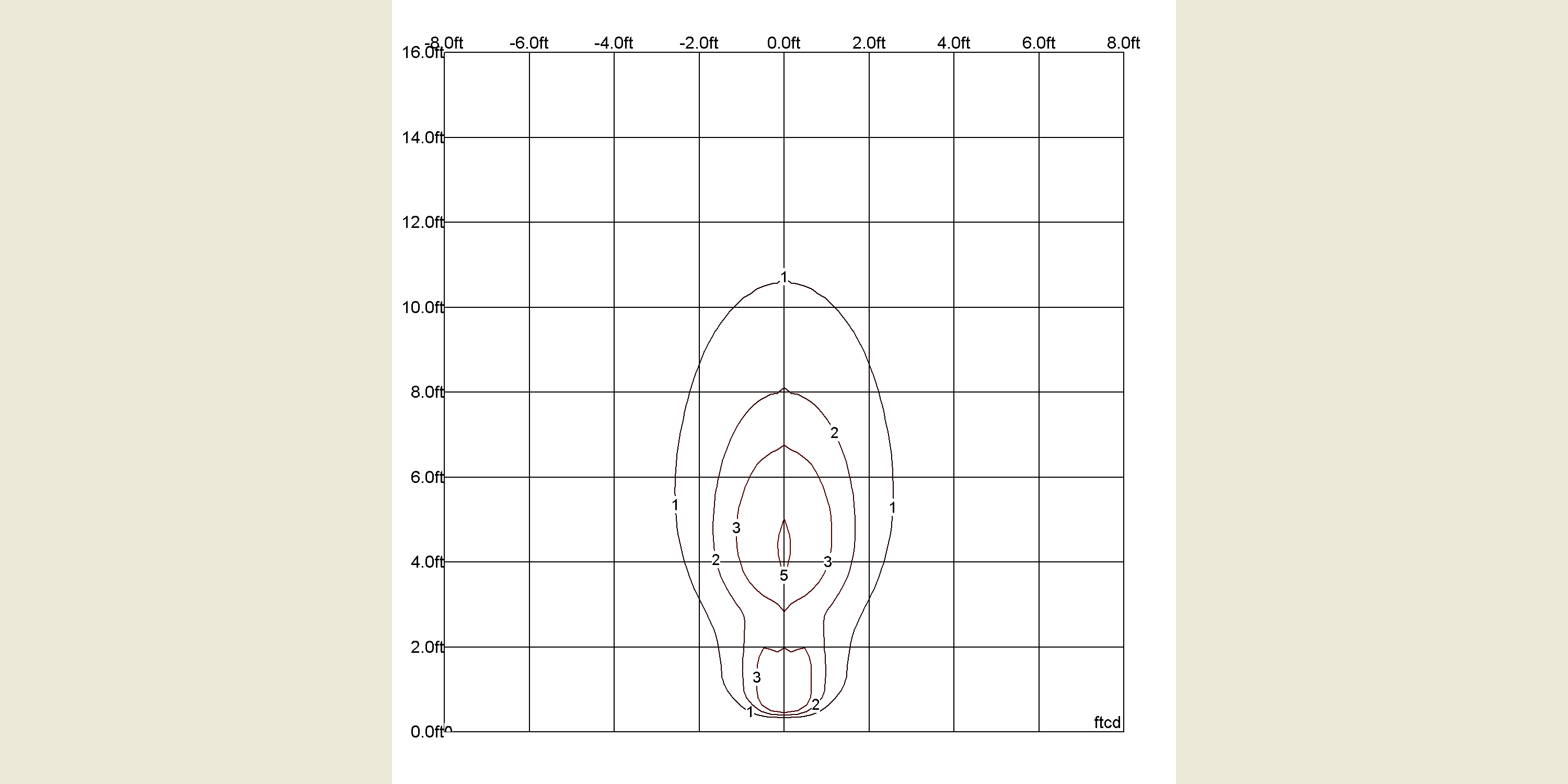

Photometric Lvk STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45 1

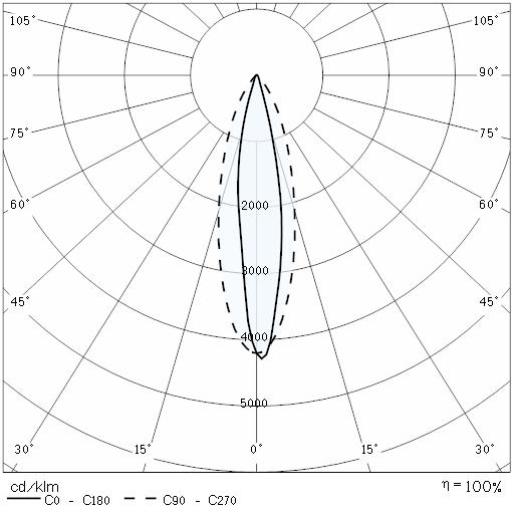

Photometric Lvk STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45 2

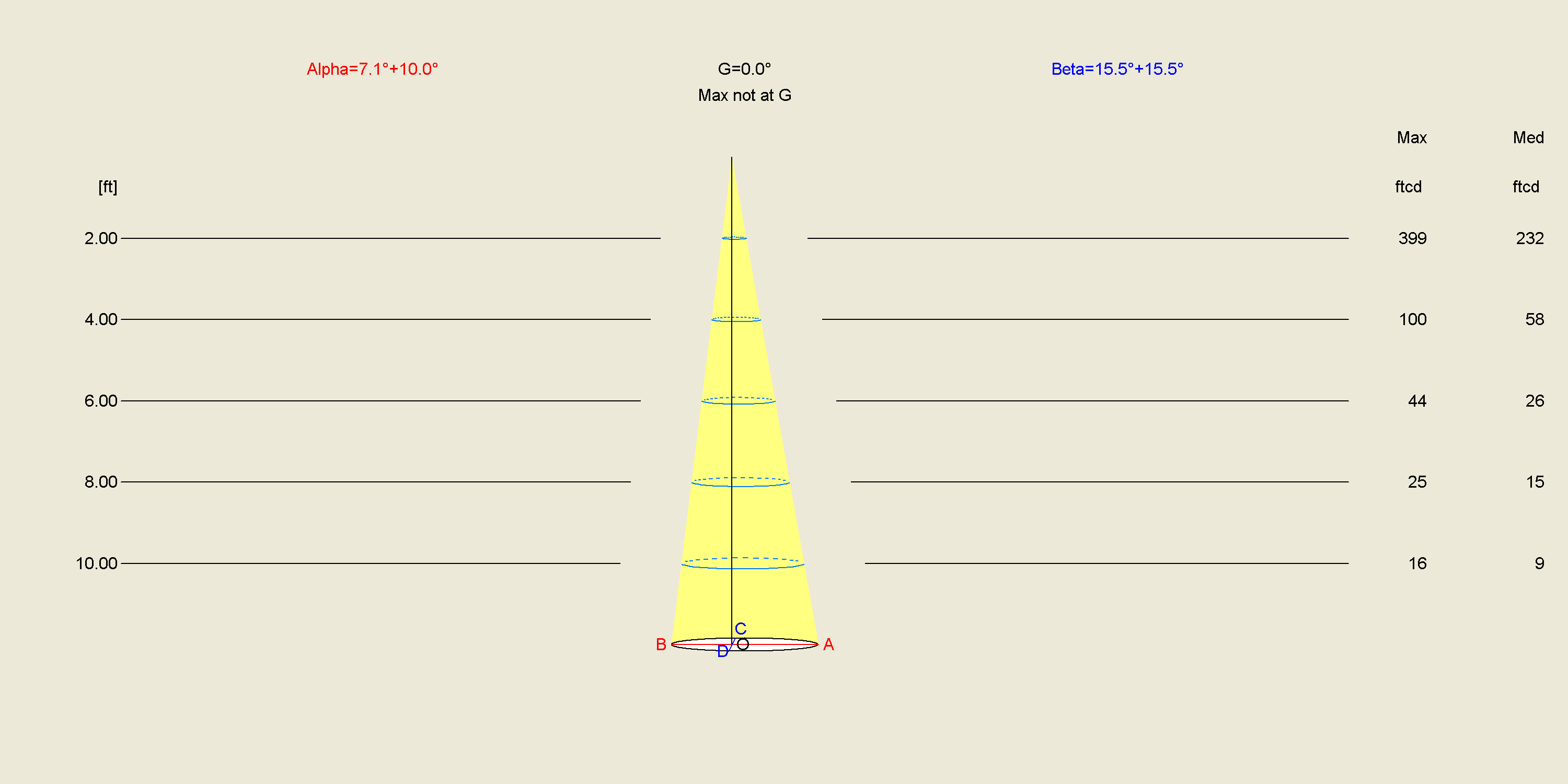

Photometric Lvk STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45 3

Technical drawings

Tech Design STEEL SQUARE 34 SIDE - 8 LED ELL 10°X45

REQUIRED FOR INSTALLATION

STEEL SQUARE 34

Recessed Rough-in kit
310379
Recessed Rough-in kit
