STEEL ROUND COMPACT LED 360°

IN
STEEL ROUND COMPACT LED 360°
STEEL ROUND COMPACT LED 360°

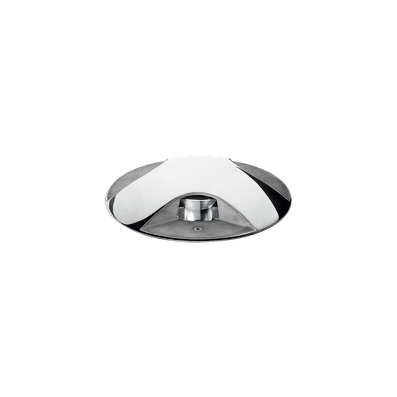

STEEL ROUND COMPACT LED 360° - 1
STEEL ROUND COMPACT LED 360° - 2
Part number 075982
Lampholder: LED
Wattage: 7.8 W
Finish: INOX / Stainless steel / Matt
Degree of protection: IP67
Kelvin: 6000
Luminaire lumen output: 212 lm
Lifetime: 60000 h
cULus:
Voltage: 120-277 V

Description

  • In-ground step mark series. Fixtures consist of:
  • - Copper-free die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel dome (RAD versions).
  • - High transmittance, internally frosted, soda-lime pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes (RAD versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - Ground-level side-emission light distribution (RAD 90°, 180°, and 360°).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - COMPACT reduced depth rough-in comes with formed steel bars to provide support in drive-over applications and is designed to encourage water drainage.
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - Standard easy-to-adjust mounting system that enables the fixture to be easily aimed even after installation.
  • - Thermoplastic compression-molded rough-in kit to be ordered separately.
  • - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - Consult factory for dimming options, custom finishes, and non-cataloged CCT (Kelvin) options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

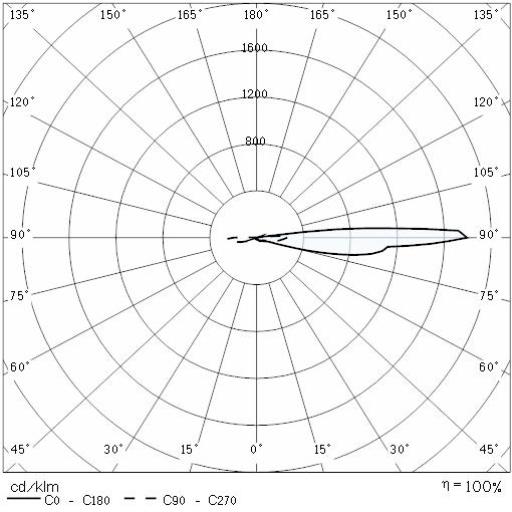

Photometric data

Photometric Lvk STEEL ROUND COMPACT LED 360° 1
Photometric Lvk STEEL ROUND COMPACT LED 360° 2

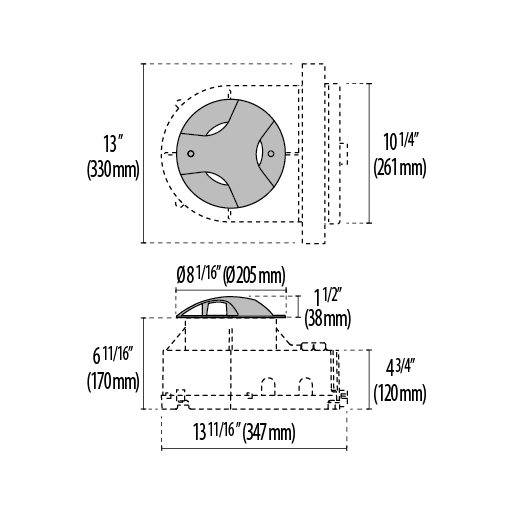

Technical drawings

Tech Design STEEL ROUND COMPACT LED 360°

MANDATORY ACCESSORIES

STEEL ROUND MIDI RAD

Recessed Rough-in kit
310331
Recessed Rough-in kit
