STEEL ROUND COMPACT LED ELL 10°X45°

IN
STEEL ROUND COMPACT LED ELL 10°X45°
STEEL ROUND COMPACT LED ELL 10°X45°
STEEL ROUND COMPACT LED ELL 10°X45°
STEEL ROUND COMPACT LED ELL 10°X45°
STEEL ROUND COMPACT LED ELL 10°X45° - 1
STEEL ROUND COMPACT LED ELL 10°X45° - 2
STEEL ROUND COMPACT LED ELL 10°X45° - 3
STEEL ROUND COMPACT LED ELL 10°X45° - 4
Part number 075996
Lampholder: LED
Wattage: 7.6 W
Finish: INOX / STAINLESS STEEL / MATT
Degree of protection: IP 67
Kelvin: 4000
Optic: ELLIPTICAL REFLECTOR
Optic Beam: 10°x45°
Luminaire lumen output: 352 lm
Lifetime: 60000 h
cULus:
Voltage: 120/277V

Description

  • In-ground series. Fixtures consist of:
  • - Copper-free die-cast aluminum housing and die-cast corrosion-resistant AISI 316 stainless steel trim.
  • - Extra-clear, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - High-transmittance transparent optics.
  • - Standard aimable optic system (±7°).
  • - 10° x 45° beam angle (ELL).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - COMPACT reduced depth rough-in comes with formed steel bars to provide support in drive-over applications and is designed to encourage water drainage.
  • - Each rough-in kit is delivered with a protective cover to avoid possible deformations during the installation in concrete and a bubble level to simplify installation.
  • - Standard easy-to-adjust mounting system that enables the fixture to be easily aimed even after installation.
  • - Rough-in kit to be ordered separately.
  • - For outdoor applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - Consult factory for custom finishes and non-catalogued CCT (Kelvin) options.
  • - Consult factory for frosted or non-slip glass options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

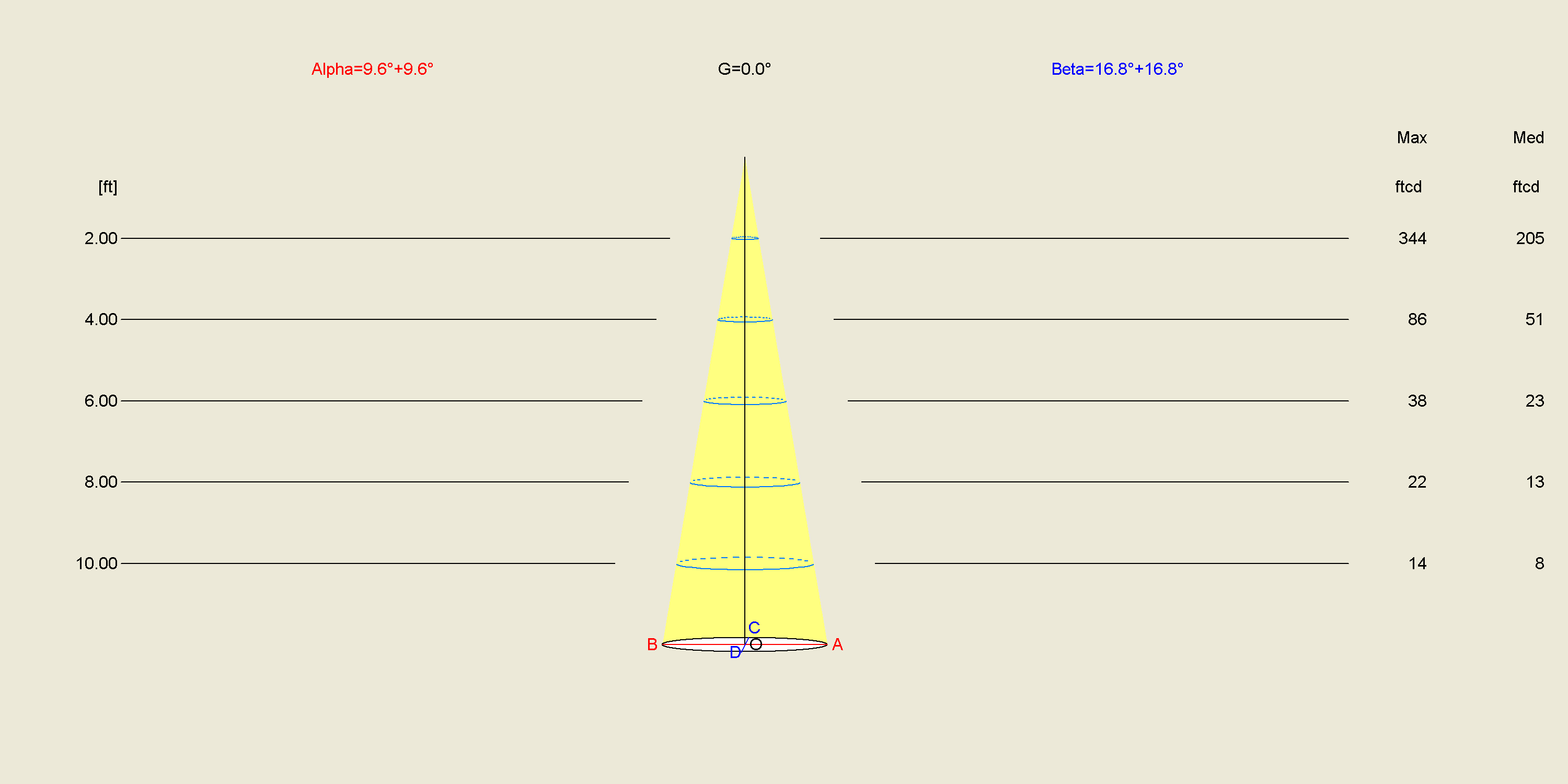

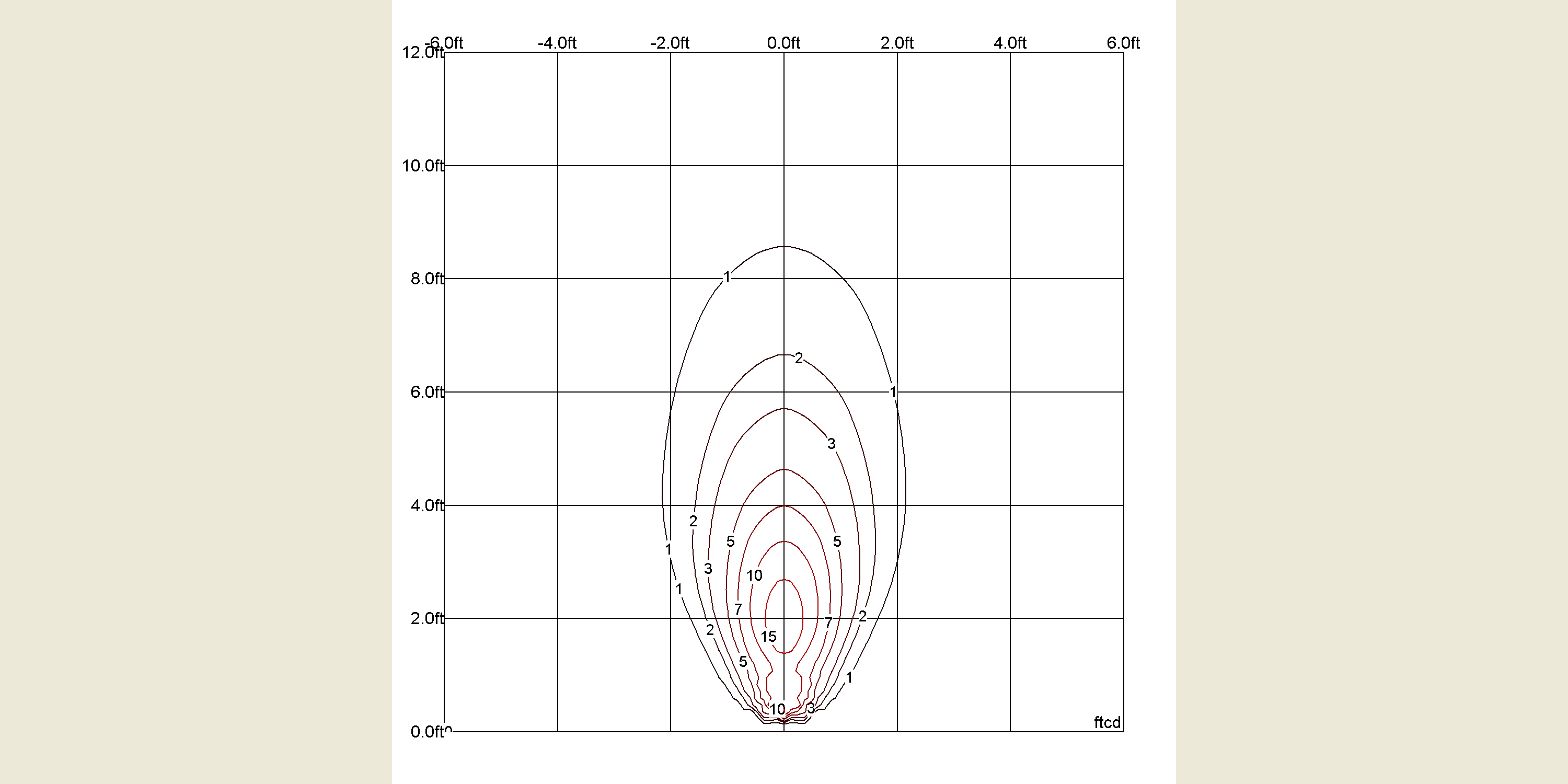

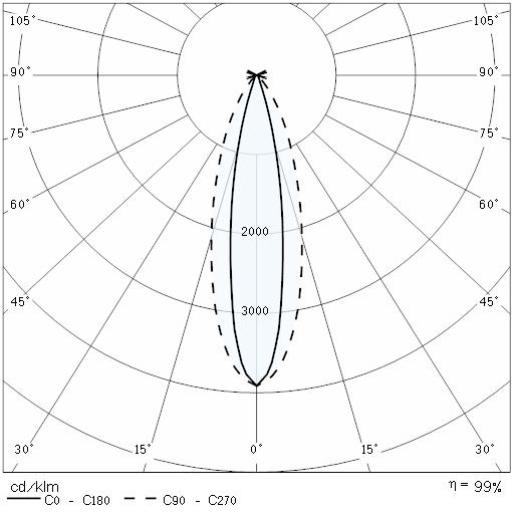

PHOTOMETRIC DATA

Photometric Lvk STEEL ROUND COMPACT LED ELL 10°X45° 1
Photometric Lvk STEEL ROUND COMPACT LED ELL 10°X45° 2
Photometric Lvk STEEL ROUND COMPACT LED ELL 10°X45° 3

TECHNICAL DRAWINGS

Tech Design STEEL ROUND COMPACT LED ELL 10°X45°

MANDATORY ACCESSORIES

STEEL ROUND MIDI

Recessed fixing kit
310331
Recessed fixing kit
