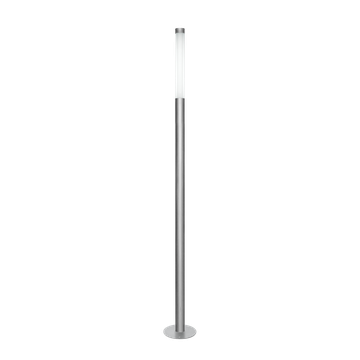

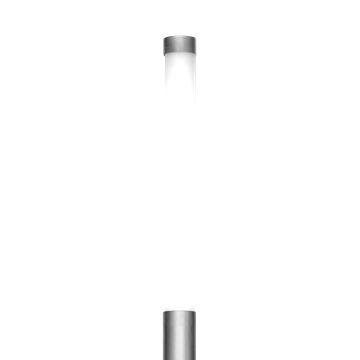

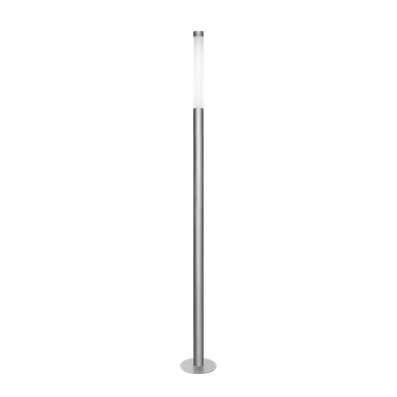

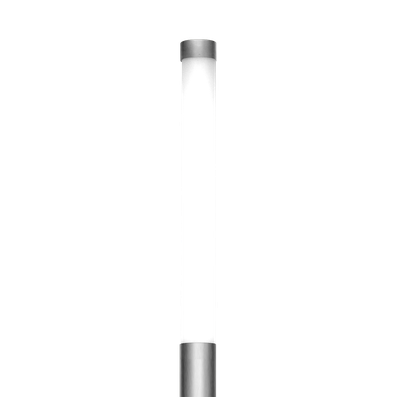

KHA SLIM 8' LED

KHA SLIM 8' LED
KHA SLIM 8' LED
KHA SLIM 8' LED - 1
KHA SLIM 8' LED - 2
Part number 076435
Lampholder: LED
Wattage: 50 W
Finishing: INOX / Stainless steel / Matt
Degree of protection: IP66
CRI: 80
Kelvin: 3000
Optic: Circular Extra-Wide
IESNA Type: Type V
BUG Rating: B1-U5-G3
Luminaire lumen output [lm]: 4914 lm
L: L70
B: B10
Lifetime: 36000 h
Voltage: 120/277 V
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 25

Description

  • Slim area and site lighting series. Fixtures consist of:
  • - Corrosion-resistant AISI 316 stainless steel post and top cap.
  • - Satin UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Diffuse light emission.
  • - Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Suitable for most coastal applications (stainless steel versions).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
  • - 5-year warranty.

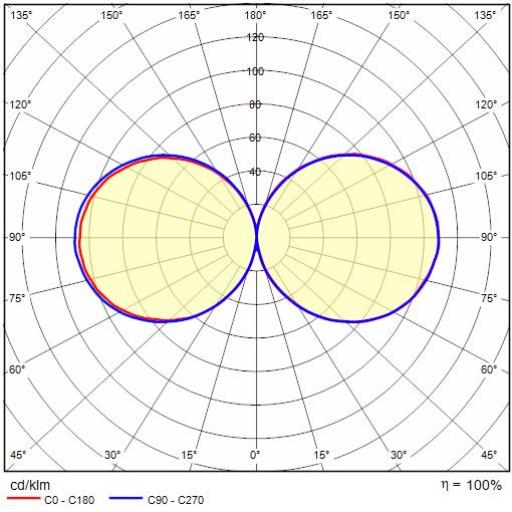

Photometric data

Photometric Lvk KHA SLIM 8' LED 1

Technical drawings

Tech Design KHA SLIM 8' LED 1++
