ALU ROUND SIDE 4

IN
ALU ROUND SIDE 4
ALU ROUND SIDE 4
ALU ROUND SIDE 4 - 1
ALU ROUND SIDE 4 - 2
Part number 077311
Lampholder: LED
Wattage: 2.1 W
Finishing: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP65
CRI: 80
Kelvin: 6000
Luminaire lumen output (lm): 22 lm
Lifetime: 60000 h
cULus:

Description

  • Wall effect series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision machined anodized aluminum housing and optical compartment.
  • - Satin UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Surface effects light emission.
  • - To be used with a low-voltage, constant-current (700 mA) driver (ordered separately, consult factory for more information).
  • - Matching junction box plate optional accessory available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

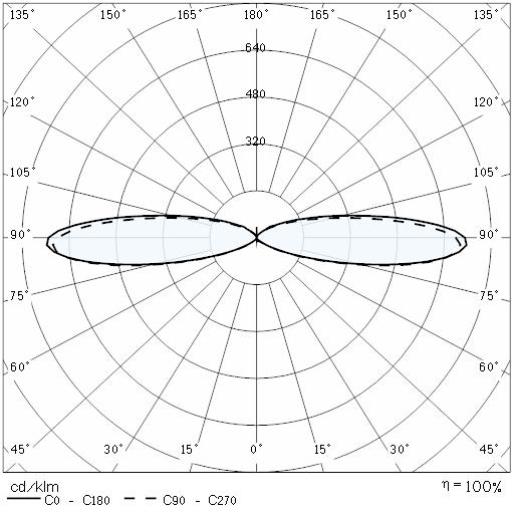

Photometric data

Photometric Lvk ALU ROUND SIDE 4 1

Technical drawings

Tech Design ALU ROUND SIDE 4

OPTIONAL ACCESSORIES

ALU ROUND MINI

Plate cover jbox Alu Round
07941
Plate cover jbox Alu Round
Anodized aluminum
LED driver CC 6 W 700mA 120/277V
17082
LED driver CC 6 W 700mA 120/277V
