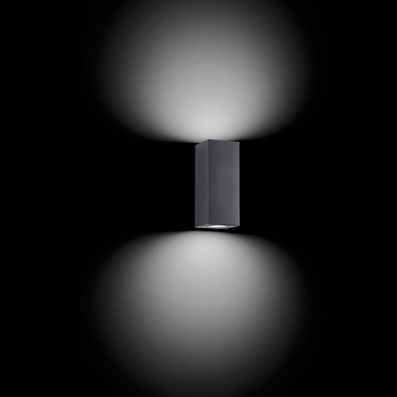

ALU WALL/S B

IN
ALU WALL/S B
ALU WALL/S B
ALU WALL/S B - 1
ALU WALL/S B - 2
Part number 077377
Lampholder: LED
Wattage: 4.2 W

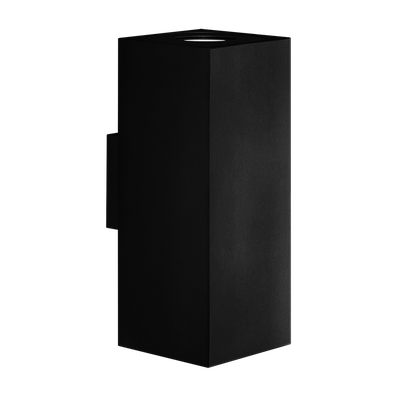

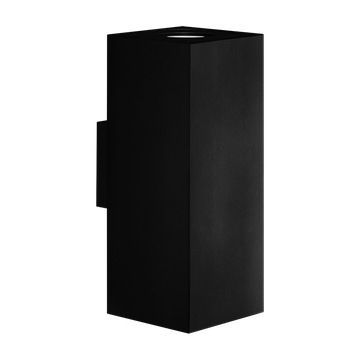

Finishing: BK-40 / Anodized black / Matt
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic: Symmetric Extra-Wide
Luminaire lumen output [lm]: 112 lm
Lifetime: 60000 h
cULus:
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 50

Description

  • Wall effect series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision machined anodized aluminum housing and optical compartment.
  • - Satin UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Surface effects light emission.
  • - Single (M) or dual (B) light emission.
  • - To be used with a low-voltage, constant-current (700 mA) driver (ordered separately, consult factory for more information).
  • - Matching junction box plate optional accessory available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

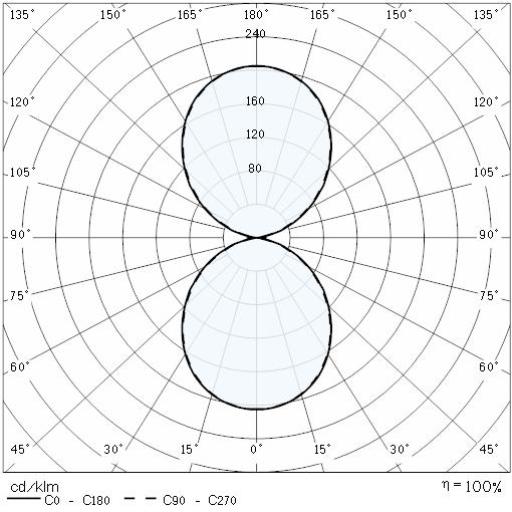

Photometric data

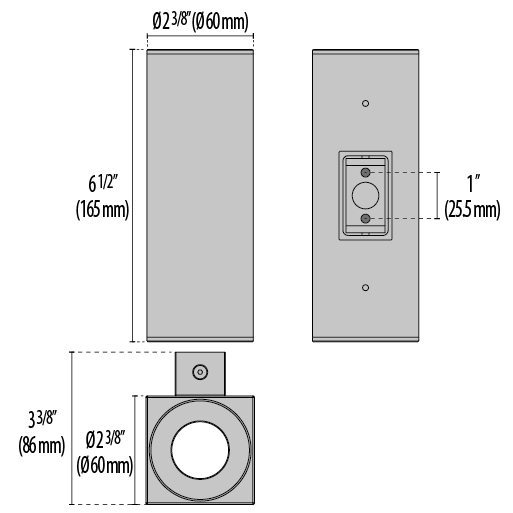

Technical drawings

Tech Design ALU WALL/S B 1++

OPTIONAL ACCESSORIES

ALU WALL

07946
Plate cover jbox Alu Wall/S - Black
Anodized black
DownloadDownloads

Documentation: ALU WALL - 07946

17082
LED driver CC 6 W 700mA 120/277V
DownloadDownloads

Documentation: ALU WALL - 17082
