TYK+ 10 RM ELL

Description

• Long-lasting floodlighting for landscape and any architecture, also applying dynamic color. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free (<1%) precision die-cast aluminum housing, and adjustable stainless steel mounting bracket.
• - Stainless steel graduated ferrules for aiming purposes on both sides of the fixture.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.

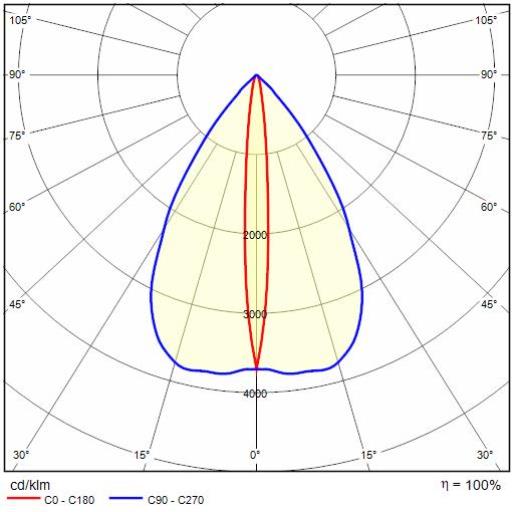

• - Elliptical optics (ELL).
• - Input voltage: 120V (50 / 60 Hz) integral driver, 120-277V (50 / 60 Hz) remote driver (RM versions).
• - Standard tear-proof nickel-plated brass cable gland M16x1.5 for cables Ø0.2” - Ø0.4”.
• - Pre-wired factory sealed cable for external electrical connection included.
• - Standard robust ½” NPS knuckle mount with 180° adjustable swivel arm (SA versions) and rugged, locking teeth for a simplified installation.
• - Matching junction box plate optional accessory available (ordered separately).
• - The TYK+ 10 RM versions to be powered solely with the power supply units available as accessories (ordered separately).
• - Maximum cable length of 10 meters between the power supply unit and the related floodlights.
• - RM (Remote Driver) version are granted for a – 40°F working temperature.
• - SA version add -RM for remote driver.
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
• - 5-year warranty.
