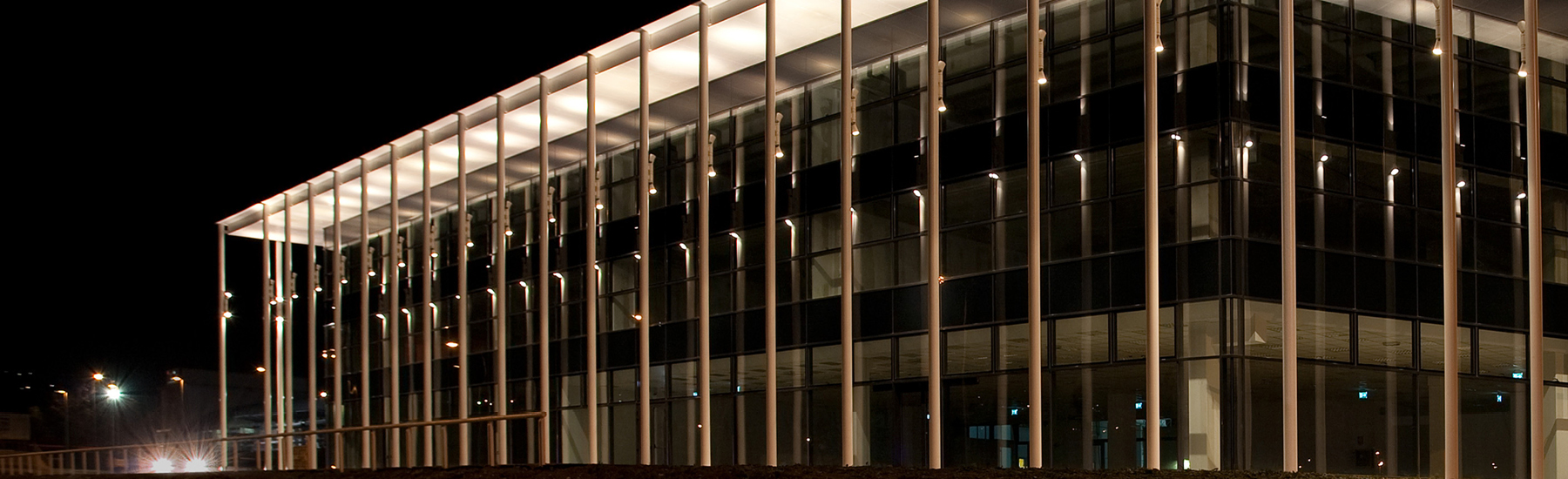

Shape the nocturnal soul of architecture
The TYK+ is the quintessence of the structural development in the outdoor architectural field of PERFORMANCE iN LIGHTING. Beauty and essential design, where the proportions remain consistent in the series’ different sizes, enrich the luminaire's technical soul. The core of TYK+ is an elegant mix of how to harness the latest technology available to light architecture professionally. Each custom-designed optics has its required effect to ensure an exceptionally sharp, homogenous, and supremely comfortable light beam.TYK+ is a "universal" architectural lighting tool: it allows the designer to illuminate horizontal and vertical planes with absolute precision, dose light and shadow in a targeted way, and alternate light and dark areas by composing them successfully.These architectural series also offer additional RGBW color mixing options for high emotional impact scenographic effects and dynamic Tunable White (TW) for smooth variations in color temperature in response to how a space is used.
Long-lasting floodlighting for landscape and any architecture, also applying dynamic color. Fixtures consist of:
  • Copper-free (<1%) precision die-cast aluminum housing, and adjustable stainless steel mounting bracket.
  • Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • High-transparency polycarbonate optics for optimized light transmission.
  • Custom molded, anti-aging gasket(s).
  • Stainless steel external hardware.
  • Extra-clear, tempered, silk-screened, flat glass diffuser.
  • Stainless steel graduated ferrules for aiming purposes on both sides of the fixture.
  • The TYK+ 10 RM versions to be powered solely with the power supply units available as accessories (ordered separately).
  • Maximum cable length of 10 meters between the power supply unit and the related floodlights.
  • RM (Remote Driver) version are granted for a – 40°F working temperature.
  • Circular Intensive (C/I) Medium (C/M), NEMA 5H x 5V (C/IW), Elliptical (ELL), color mixing (RGBW), dynamic Tunable White (TW) optics, and light distributions.
  • RGBW (4000K) color mixing for high emotional impact scenographic effects.
  • Dynamic Tunable White (TW) options enable smooth variations in color temperature, from 2700K to 5700K, in response to how a space is used.
  • Input voltage: 120 V (50 / 60 Hz), integral driver (TYK+ 10), and 120-277 V (50 / 60 Hz), integral 1-10 V dimming driver (TYK+ 20/30). 48 V DC, separate driver for RGBW color mixing and dynamic TW models (ordered separately).
  • The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • UL Wet location listed. IP66 rated.
  • Product meets Buy American Act (BAA) requirements within ARRA.
  • Photometric data measured according to UNI EN 13032-1/4 and IES LM-79-08
  • Actual performance may differ as a result of the end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications are subject to change without notice.
  • 5-year limited warranty. Complete warranty terms located at www.performanceinlighting.com
