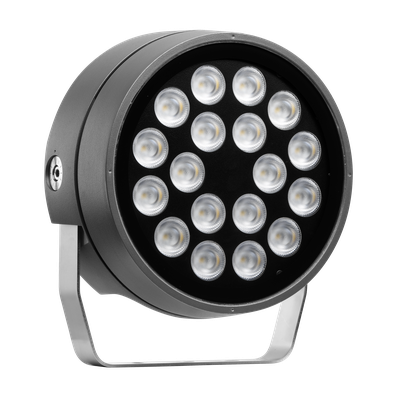

TYK+ 30 C/M

Description

• Long-lasting floodlighting for landscape and any architecture, also applying dynamic color. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.

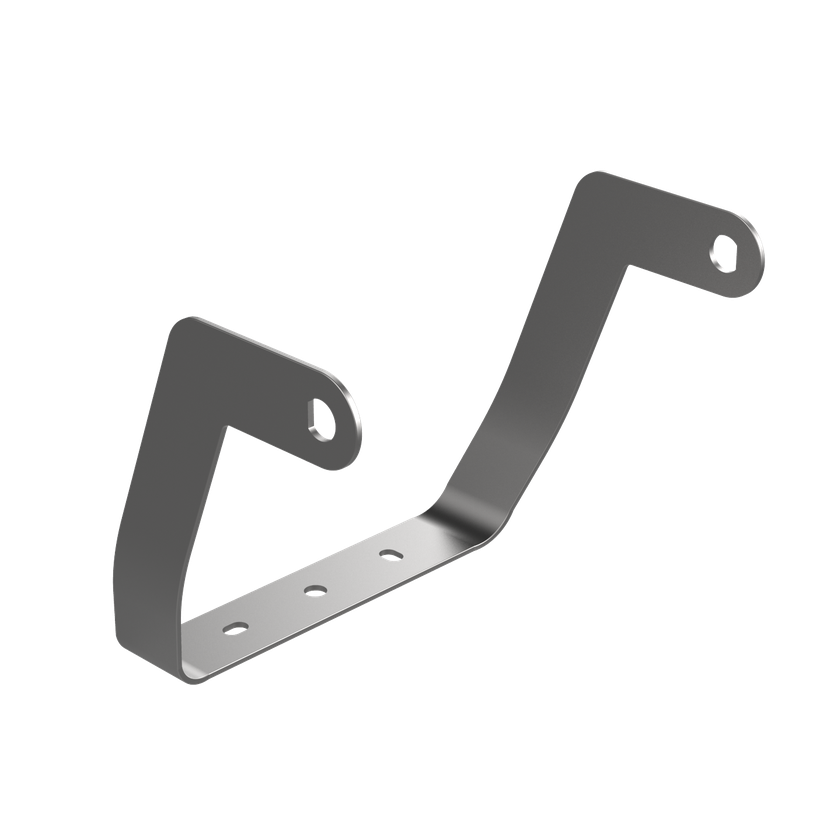

• - Copper-free (<1%) precision die-cast aluminum housing, and adjustable stainless steel mounting bracket.
• - Stainless steel graduated ferrules for aiming purposes on both sides of the fixture.
• - Extra-clear, tempered, silk-screened, flat glass diffuser.
• - Custom molded, anti-aging gasket(s).
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
• - High-transparency polycarbonate optics for optimized light transmission.

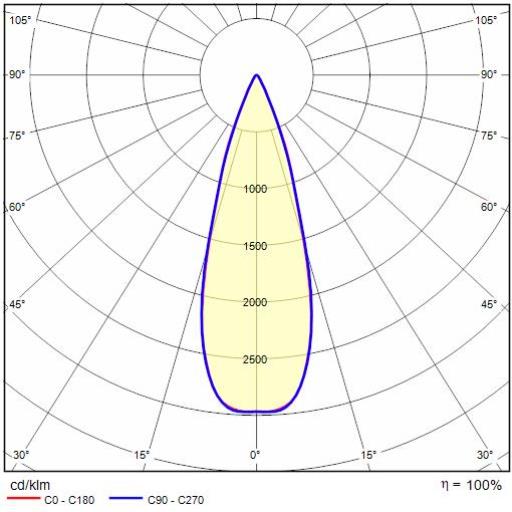

• - Circular Medium optics (C/M).
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Standard tear-proof nickel-plated brass cable gland M20x1.5 for cables Ø0.4” - Ø0.55”.
• - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
• - Contact factory for any Buy American Act (BAA) or Build America Buy America Act (BABAA) requirements.
• - 5-year warranty.
