ALU INGROUND SQUARE

IN
ALU INGROUND SQUARE
ALU INGROUND SQUARE - 1
Part number 079028
Lampholder: LED
Wattage: 2.1 W
Finishing: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP67
CRI: 80
Kelvin: 6000
Luminaire lumen output (lm): 20 lm
Lifetime: 60000 h
cULus:

Description

  • In-ground series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision machined anodized aluminum housing and optical compartment.
  • - Frosted, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Diffuse light emission.
  • - To be used with a low-voltage, constant-current (700 mA) driver (ordered separately, consult factory for more information).
  • - Stainless steel recessed rough-in kit to be ordered separately.
  • - For outdoor inground applications, provide drainage gravel at least 12" below the rough-in or a suitable drainage system.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

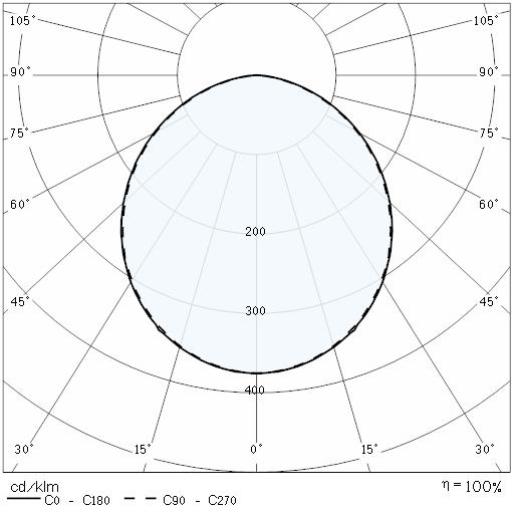

Photometric data

Photometric Lvk ALU INGROUND SQUARE 1

Technical drawings

Tech Design ALU INGROUND SQUARE

REQUIRED FOR INSTALLATION

ALU INGROUND

Recessed fixing kit - Stainless steel
310197
Recessed fixing kit - Stainless steel

OPTIONAL ACCESSORIES

ALU INGROUND

LED driver CC 6 W 700mA 120/277V
17082
LED driver CC 6 W 700mA 120/277V
