ALU 1 - 10°X45°

IN
ALU 1 - 10°X45°
ALU 1 - 10°X45°
ALU 1 - 10°X45° - 1
ALU 1 - 10°X45° - 2
Part number 079064
Lampholder: LED
Wattage: 2.1 W
Finish: BK-40 / ANODIZED BLACK / MATT
Degree of protection: IP 65
Kelvin: 6000
Optic Beam: 10°x45°
Luminaire lumen output: 98 lm
Lifetime: 60000 h
cULus:
Voltage: 700MA

Description

  • Wall sconce series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision machined billet aluminum housing and optical compartment.
  • - Clear UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Wall effects light emission.
  • - 10° x 45° beam angle (ELL).
  • - Matching junction box cover plate accessory available (to be ordered separately).
  • - For models not in the "120-277" category, a 700 mA constant current driver is available as an accessory or by others (to be remoted mounted). Consult factory for more information.
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - Consult factory for custom optic options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

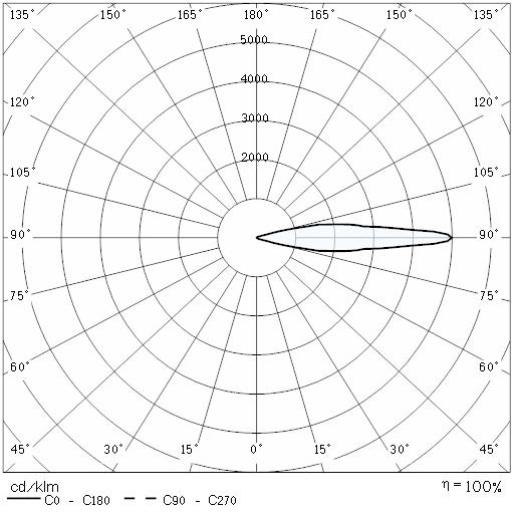

PHOTOMETRIC DATA

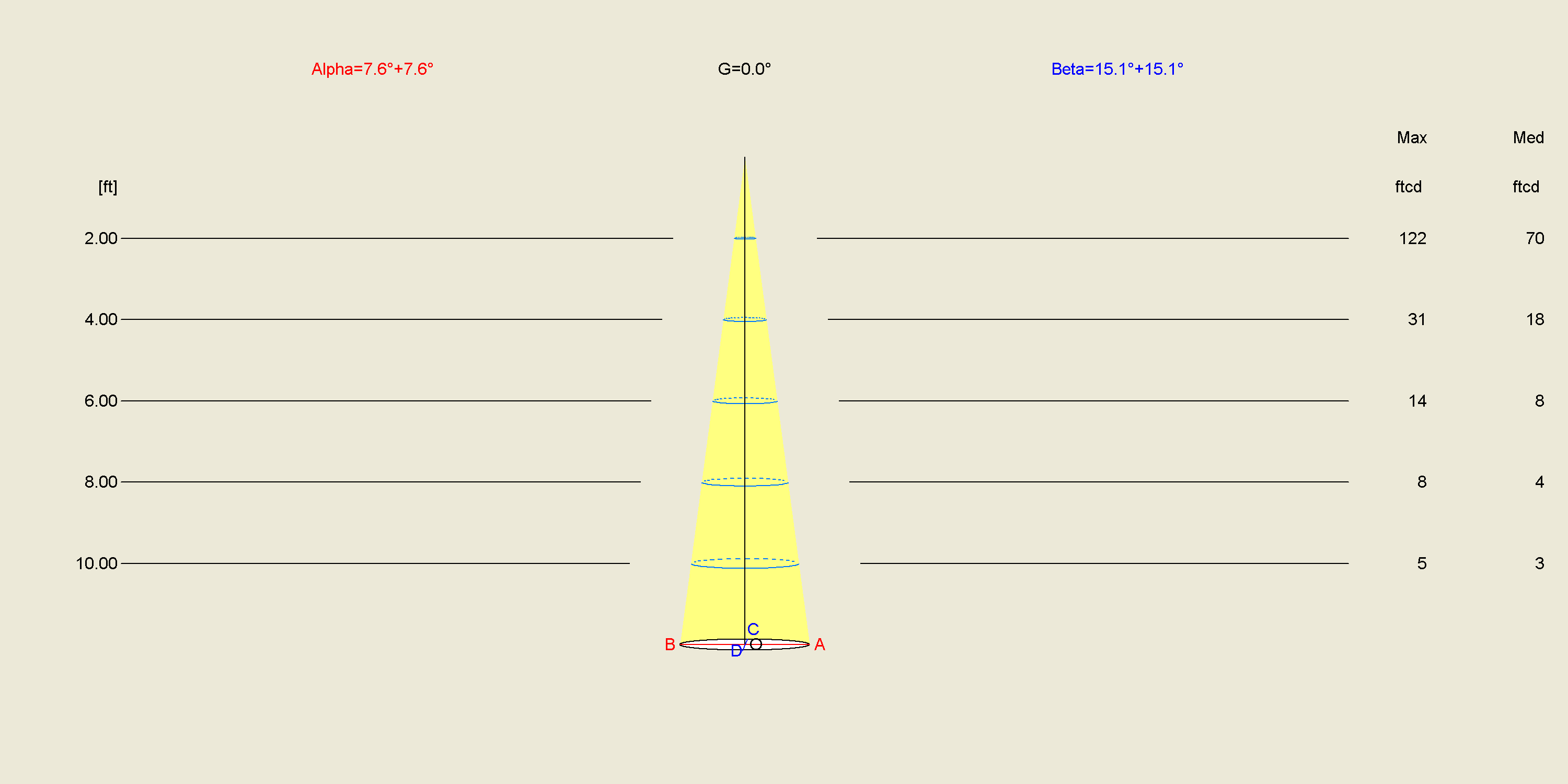

Photometric Lvk ALU 1 - 10°X45° 1
Photometric Lvk ALU 1 - 10°X45° 2

TECHNICAL DRAWINGS

Tech Design ALU 1 - 10°X45°

OPTIONAL ACCESSORIES

ALU SQUARE 1

Plate Cover Jbox Alu Black
07952
Plate Cover Jbox Alu Black
ANODIZED BLACK
LED driver CC 12W 700mA 120/277V
17190
LED driver CC 12W 700mA 120/277V
