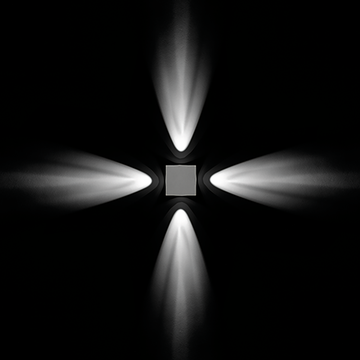

ALU 4 - 6°

IN
ALU 4 - 6°
ALU 4 - 6°
ALU 4 - 6° - 1
ALU 4 - 6° - 2
Part number 079072
Lampholder: LED
Wattage: 8.4 W
Finishing: BK-40 / Anodized black / Matt
Degree of protection: IP65
CRI: 80
Kelvin: 6000
Beam angle: 4 x 6°/90
Luminaire lumen output [lm]: 453 lm
Lifetime: 60000 h
cULus:
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 50

Description

  • Wall effect series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision machined anodized aluminum housing and optical compartment.
  • - Clear UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Surface effects light emission.
  • - Circular Intensive optics (C/I).
  • - Matching junction box plate optional accessory available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

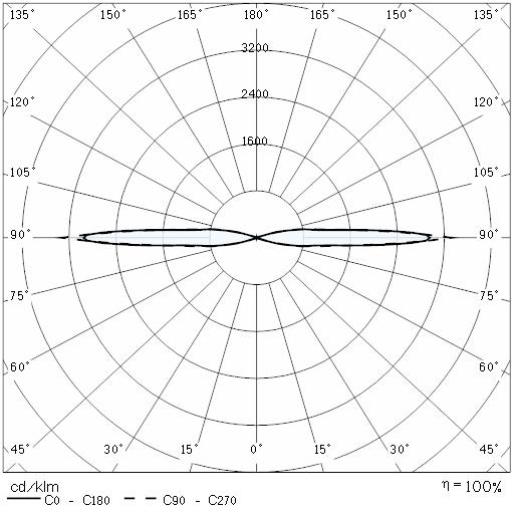

Photometric data

Technical drawings

Tech Design ALU 4 - 6° 1++

OPTIONAL ACCESSORIES

ALU SQUARE 4

17190
LED driver CC 12W 700mA 120/277V
07952
Plate Cover Jbox Alu - Black
Anodized black
