NIKKO+21 LED

IN
NIKKO+21 LED
NIKKO+21 LED - 1
Part number 079558
Lampholder: LED
Wattage: 11 W
Finish: GR-94 / Aluminum metallic / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic: Symmetric extra wide reflector
Luminaire lumen output: 802 lm
L: L80
B: B10
Lifetime: 94000 h
cULus:
Voltage: 120-277 V

Description

  • Surface-mount doorway and hallway lights and post mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free die-cast aluminum housing, ring, and faceplates.
  • - Copper-free aluminum extruded post.
  • - High transmittance, internally coated, pressed glass diffuser, thermally, and chemically quenched to strengthen the impact resistance and reduce the effect of rapid temperature changes.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - 100% uniform diffused light emission.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Wall bracket and post accessories available (ordered separately).
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - 5-year warranty.
  • - Product meets Buy American Act requirements within ARRA.

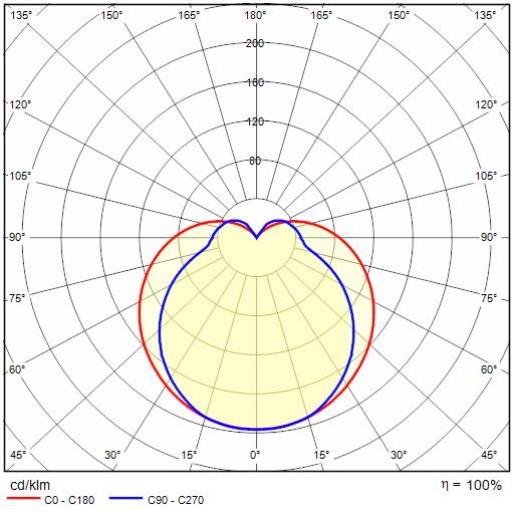

Photometric data

Photometric Lvk NIKKO+21 LED 1

Technical drawings

Tech Design NIKKO+21 LED

OPTIONAL ACCESSORIES

NIKKO+21 - Bracket

Bracket
401
Bracket
Aluminum metallic

NIKKO+21 - Post h 7.8"

Post h 7.8"
405
Post h 7.8"
Aluminum metallic

NIKKO+21 - Post h 22.95"

Post h 22.95"
409
Post h 22.95"
Aluminum metallic

NIKKO+21 - Post h 32.79"

Post h 32.79"
413
Post h 32.79"
Aluminum metallic
