NIKKO+21/G LED

IN

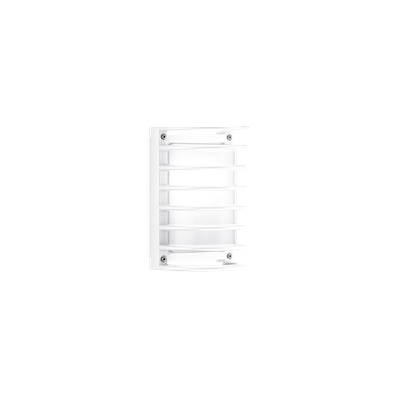

NIKKO+21/G LED
NIKKO+21/G LED
NIKKO+21/G LED - 1
NIKKO+21/G LED - 2
Part number 079588
Lampholder: LED
Wattage: 11 W
Finish: WH-87 / WHITE / TEXTURED
Degree of protection: IP 65
Kelvin: 4000
Optic: SYMMETRIC EXTRA WIDE REFLECTOR
Luminaire lumen output: 316 lm
L: L80
Lifetime: 50000 h
cULus:
Voltage: 120/277V

Description

  • Wall mounted luminaire.
  • - Base and grid faceplate in painted die-cast aluminum.
  • - Diffuser in pressed frosted glass, internally connected to the faceplate.
  • - Silicone gasket.
  • - Stainless steel locking screws.
  • - Aluminum electrical gear tray serves as a reflector for compact fluorescent version.

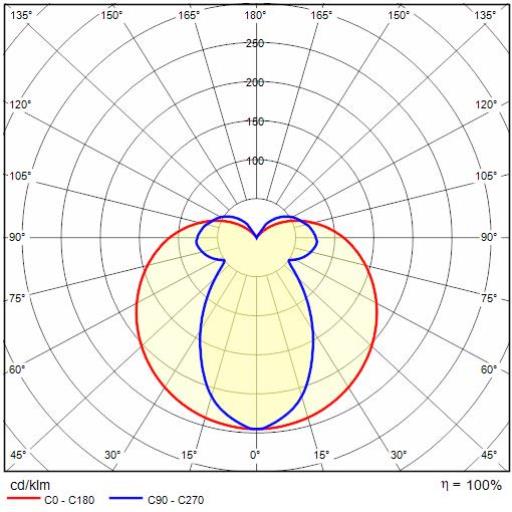

PHOTOMETRIC DATA

Photometric Lvk NIKKO+21/G LED 1

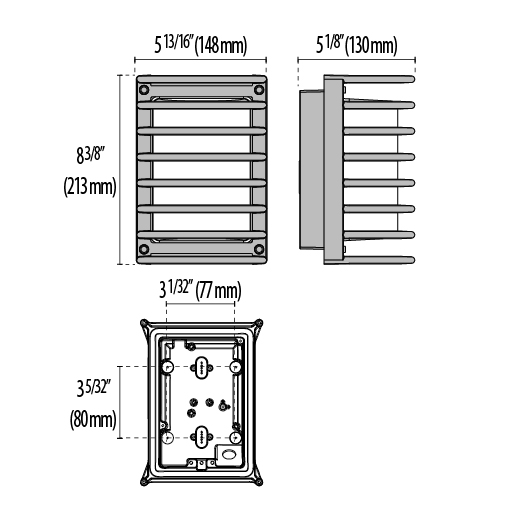

TECHNICAL DRAWINGS

Tech Design NIKKO+21/G LED

OPTIONAL ACCESSORIES

NIKKO+21 BOLLARD

Post 21 h7,8"
404
Post 21 h7,8"
WHITE
Post 21 h22.95"
408
Post 21 h22.95"
WHITE
Post 21 h32.79"
412
Post 21 h32.79"
WHITE

NIKKO+21

Bracket 21
400
Bracket 21
WHITE
