MIMIK 20 CEILING

IN
MIMIK 20 CEILING
MIMIK 20 CEILING
MIMIK 20 CEILING
MIMIK 20 CEILING - 1
MIMIK 20 CEILING - 2
MIMIK 20 CEILING - 3
Part number 079943
Lampholder: LED
Wattage: 24 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic: Symmetric extra wide reflector
Luminaire lumen output: 1869 lm
L: L80
B: B10
Lifetime: 84000 h
cULus:
Voltage: 120-277 V 50/60 Hz

Description

  • Ceiling- and wall- mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, tempered, silk-screened, flat glass diffuser (FLAT versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - 100° x 100° beam angle (S/EW).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

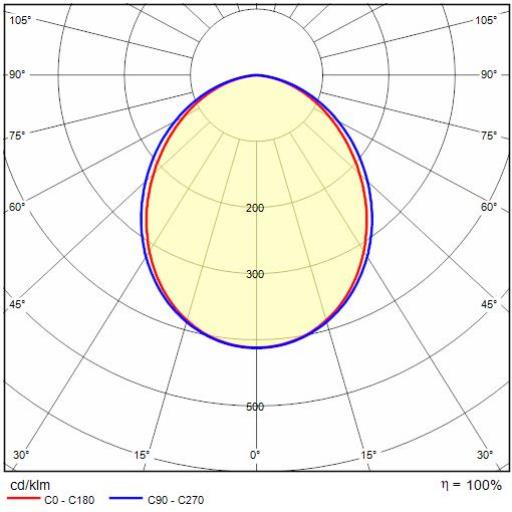

Photometric data

Photometric Lvk MIMIK 20 CEILING 1

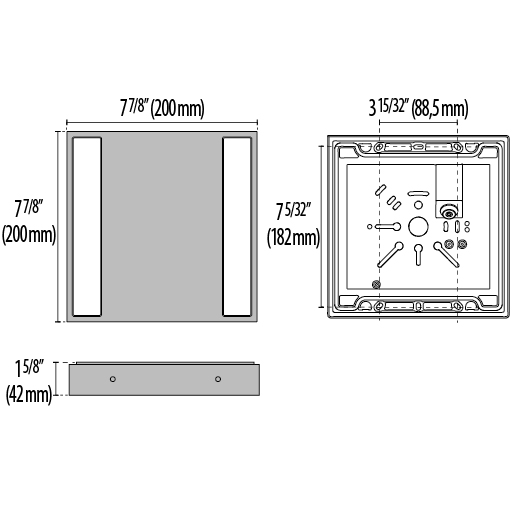

Technical drawings

Tech Design MIMIK 20 CEILING
