MIMIK 20 CEILING

IN
MIMIK 20 CEILING
MIMIK 20 CEILING
MIMIK 20 CEILING
MIMIK 20 CEILING - 1
MIMIK 20 CEILING - 2
MIMIK 20 CEILING - 3
Part number 079944
Lampholder: LED
Wattage: 24 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: Symmetric Extra-Wide
BUG Rating: B1-U0-G1
Luminaire lumen output [lm]: 1918 lm
L: L80
B: B10
Lifetime: 84000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 35

Description

  • Ceiling- and wall- mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and mounting plate.
  • - Micro-prismatic patterned, tempered, silk-screened, flat glass diffuser (FLAT versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Symmetric Extra-Wide light distribution (S/EW).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

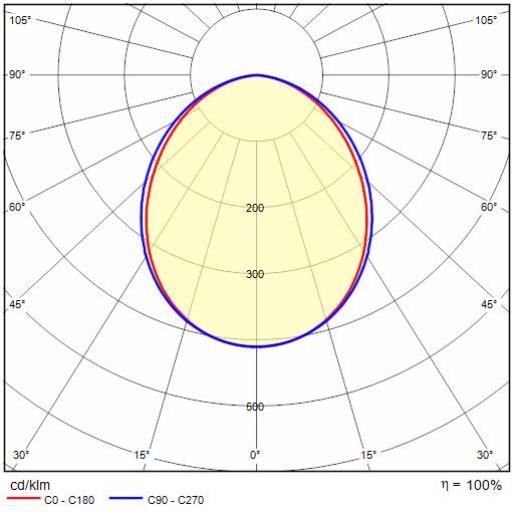

Photometric data

Technical drawings

Tech Design MIMIK 20 CEILING 1++
