Modular is putting it mildly

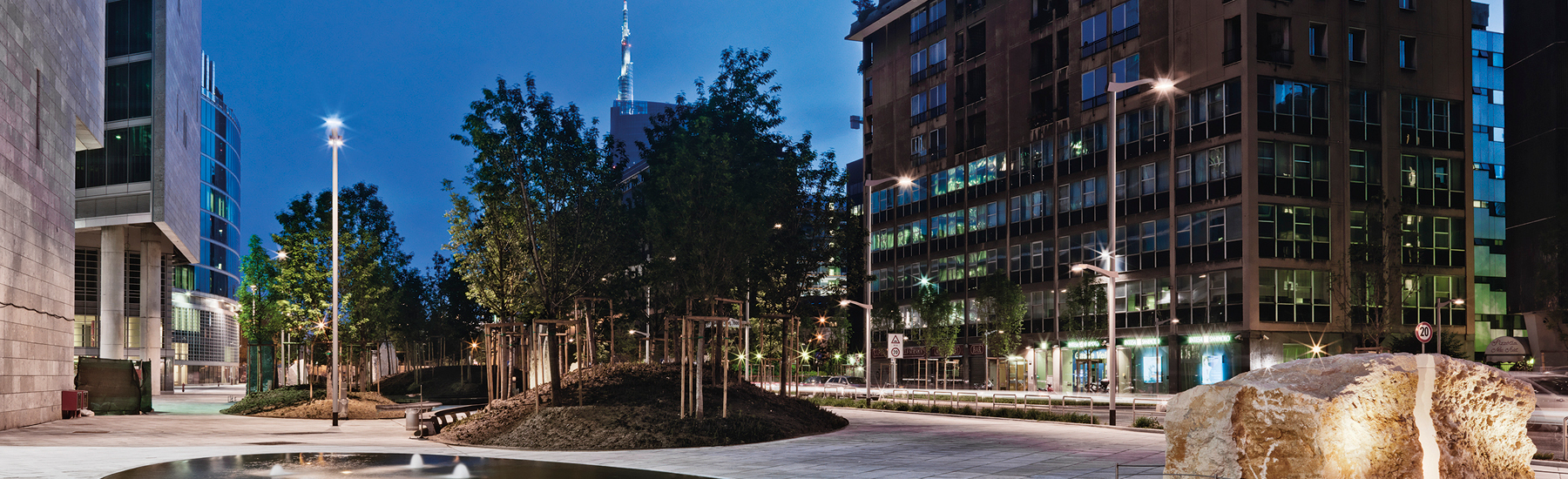

A system of urban lighting based on a single system of post mounting kits. This system makes it possible to mount two series of luminaires of different shapes and sizes with complementary lighting features, with two other diameter post options. A unique joint system allows different combinations of luminaires to be installed on posts that vary in height, including a combination of two different types of fixtures on the same post. Contact us for post availability in various heights. This product is also ideal for integrating signage with the use of banner arms.This SQUARE+ delivers maximum light output while ensuring effective thermal management to maximize lifetime and minimize maintenance costs. Besides, the luminaire complies with light pollution regulations when aimed down.The highly versatile and diverse system of accessories provided for this product family offers a wide range of lighting solutions for pedestrian areas, city streets, parking lots, and urban areas. This modem lighting solution contains an added value for urban centers, architecture, and the economy. The aesthetics and functionality, economic saving, and safeguard of sources allow sustainable lighting that makes areas more alluring and liveable without waste or light pollution.
Long-lasting energy-efficient floodlight series. Fixtures consist of:
  • Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • Copper-free (<1%) precision die-cast aluminum housing and ring/faceplate.
  • Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • High-transparency polycarbonate optics for optimized light transmission.
  • Extra-clear, tempered, silk-screened, flat glass diffuser.
  • Custom molded, anti-aging gasket(s).
  • Stainless steel external hardware.
  • Available in two standard sizes of H11.3" x L10.5" x D2.7" (SQUARE+ 1) and H17" x x D16.2" x D3.7" (SQUARE+ 2).
  • Standard cable gland and graduated ferrule allow for a cable (Ø0.35” - Ø0.55”) to be wired inside the fixtures and retain its IP66 rating.
  • For the 210 W versions, up-light installation is permitted outdoors only.
  • Matching junction box plate optional accessory available (ordered separately).
  • Range of accessories, including posts and painted aluminum arms, suitable for a variety of configurations for diverse settings (parks, gardens, pedestrian areas, squares, parking areas, etc.) available (ordered separately).
  • Type I (SQUARE+ 1 versions), Type II, Type III (SQUARE+ 2 versions), and Type IV light distributions.
  • Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • UL Wet location listed. IP66 rated.
  • Product meets Buy American Act (BAA) requirements within ARRA.
  • Photometric data measured according to UNI EN 13032-1/4 and IES LM-79-08
  • The light distribution complies with the IESNA Full Cut-Off Classification and is eligible for all “Dark Sky” applications when aimed down.
  • Actual performance may differ as a result of the end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications are subject to change without notice.
  • 5-year limited warranty. Complete warranty terms located at www.performanceinlighting.com
