Q-WALL B

IN
Q-WALL B
Q-WALL B
Q-WALL B
Q-WALL B - 1
Q-WALL B - 2
Q-WALL B - 3
Part number 070118
Lampholder: LED
Wattage: 60 W
Finish: AN-96 / IRON GRAY / TEXTURED
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic Beam: 85°
Luminaire lumen output: 5796 lm
L: L80
B: B10
Lifetime: 55000 h
cULus:
Voltage: 120-277V

Description

  • Wall mount series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free extruded aluminum housing and copper-free precision die-cast aluminum trim, bracket (WALL versions) and mounting plate.
  • - Copper-free die-cast aluminum heat-sink passive cooling system.
  • - Extra-clear, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB combined with an optimized passive cooling system provides a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.

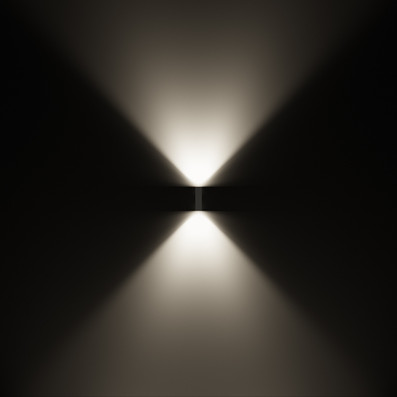

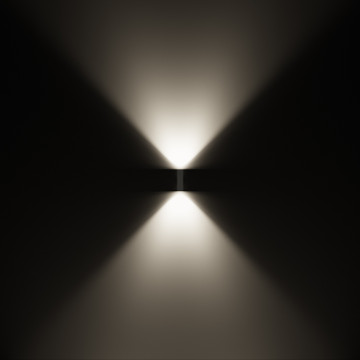

  • - Single (M) or dual (B) light emission.
  • - 20° x 20° beam angle (C/I).
  • - 40° x 40° beam angle (C/M).
  • - 85° x 85° beam angle (C/W).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Standard hinged bracket for ease of installation: wiring can be completed by mounting the bracket ahead of the luminaire, then sliding luminaire onto the bracket using quick connectors system, then securing the luminaire by tightening the stainless steel set screws (WALL versions only).
  • - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

Photometric data

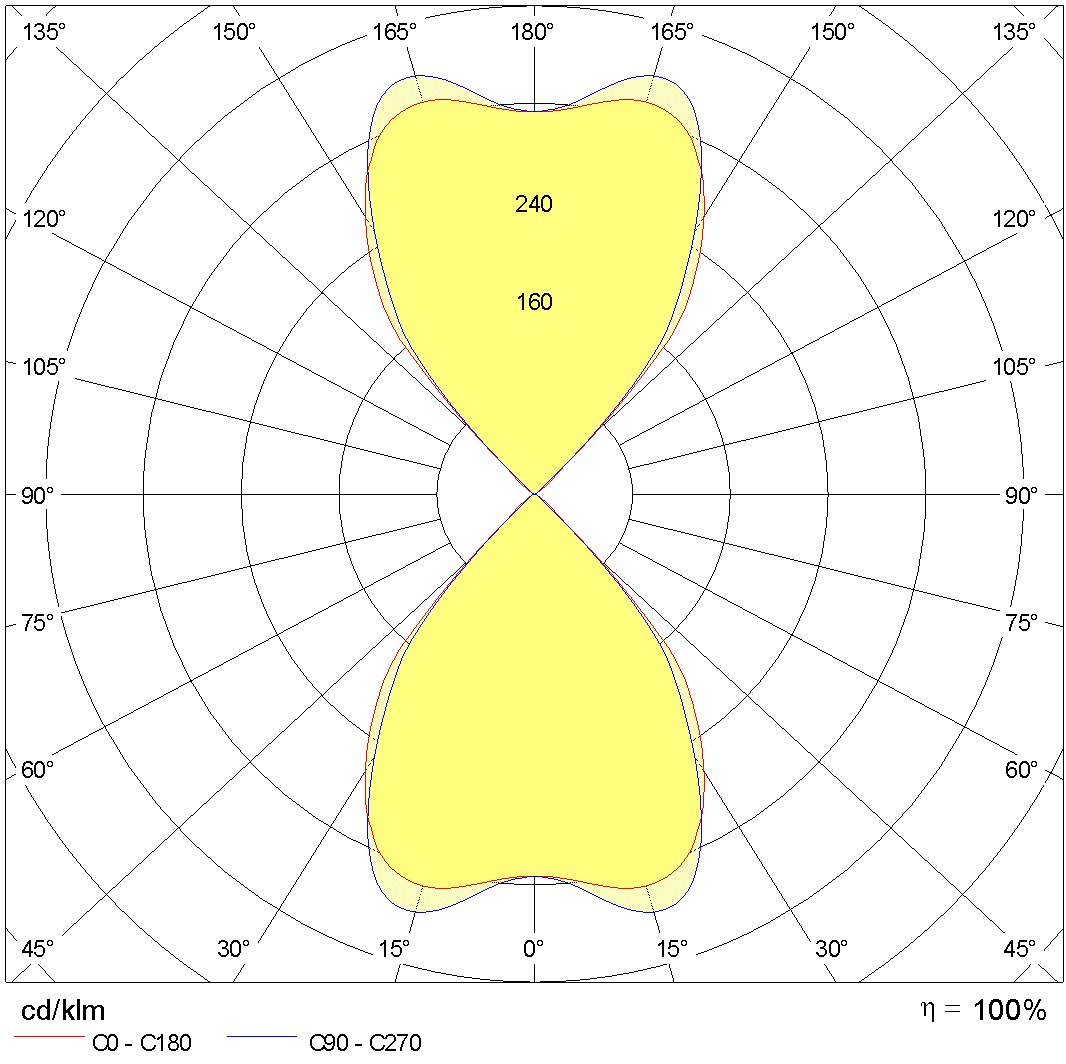

Photometric Lvk Q-WALL B 1

Technical drawings

Tech Design Q-WALL B
