GUELL 2 TYPE II

IN
GUELL 2 TYPE II
GUELL 2 TYPE II
GUELL 2 TYPE II

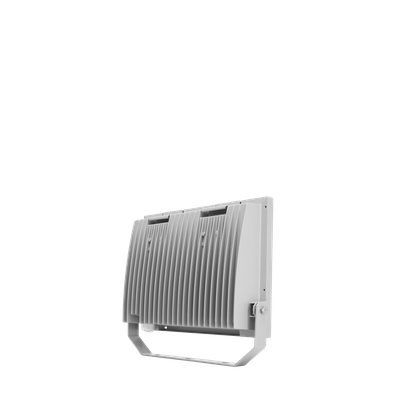

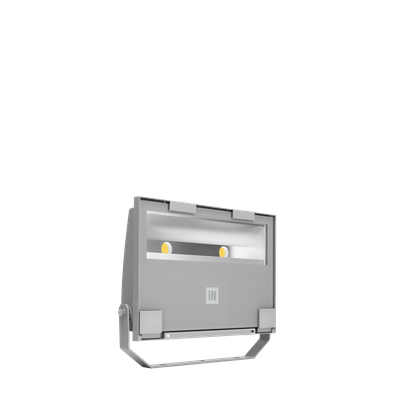

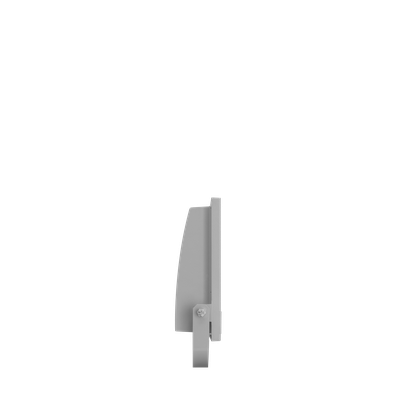

GUELL 2 TYPE II - 1
GUELL 2 TYPE II - 2
GUELL 2 TYPE II - 3
Part number 070221
Lampholder: LED
Wattage: 110 W
Finish: GR-94 / ALUMINUM METALLIC / TEXTURED
Degree of protection: IP 66
CRI: 80
Kelvin: 4000
Luminaire lumen output: 10844 lm
L: L70
B: B10
Lifetime: 130000 h
cULus:
Voltage: 120/277V

Description

  • Long-lasting energy-efficient architectural, landscape and professional flood light series. Fixtures consists of:
  • - Copper-free precision die-cast aluminum housing, trim and adjustable steel mounting bracket.
  • - Extra-clear, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB combined with an optimized passive cooling system provides a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - NEMA 7H x 5V light distribution (Type II).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired cable is factory sealed to housing with a cable gland allowing external electrical connections.
  • - Standard flush-mounted quick release latch(es) for tool-free access.
  • - Louver, frosted glass, protective grid, wall support 19.69" / 39.37", single or double pole top support, and matching junction box plate cover accessories available (to be ordered separately).
  • - Consult factory for dimming options, custom finishes and non-catalogued CCT (Kelvin) options.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

PHOTOMETRIC DATA

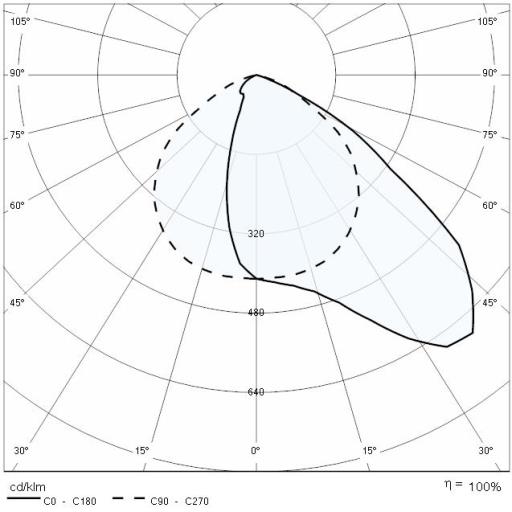

Photometric Lvk GUELL 2 TYPE II 1

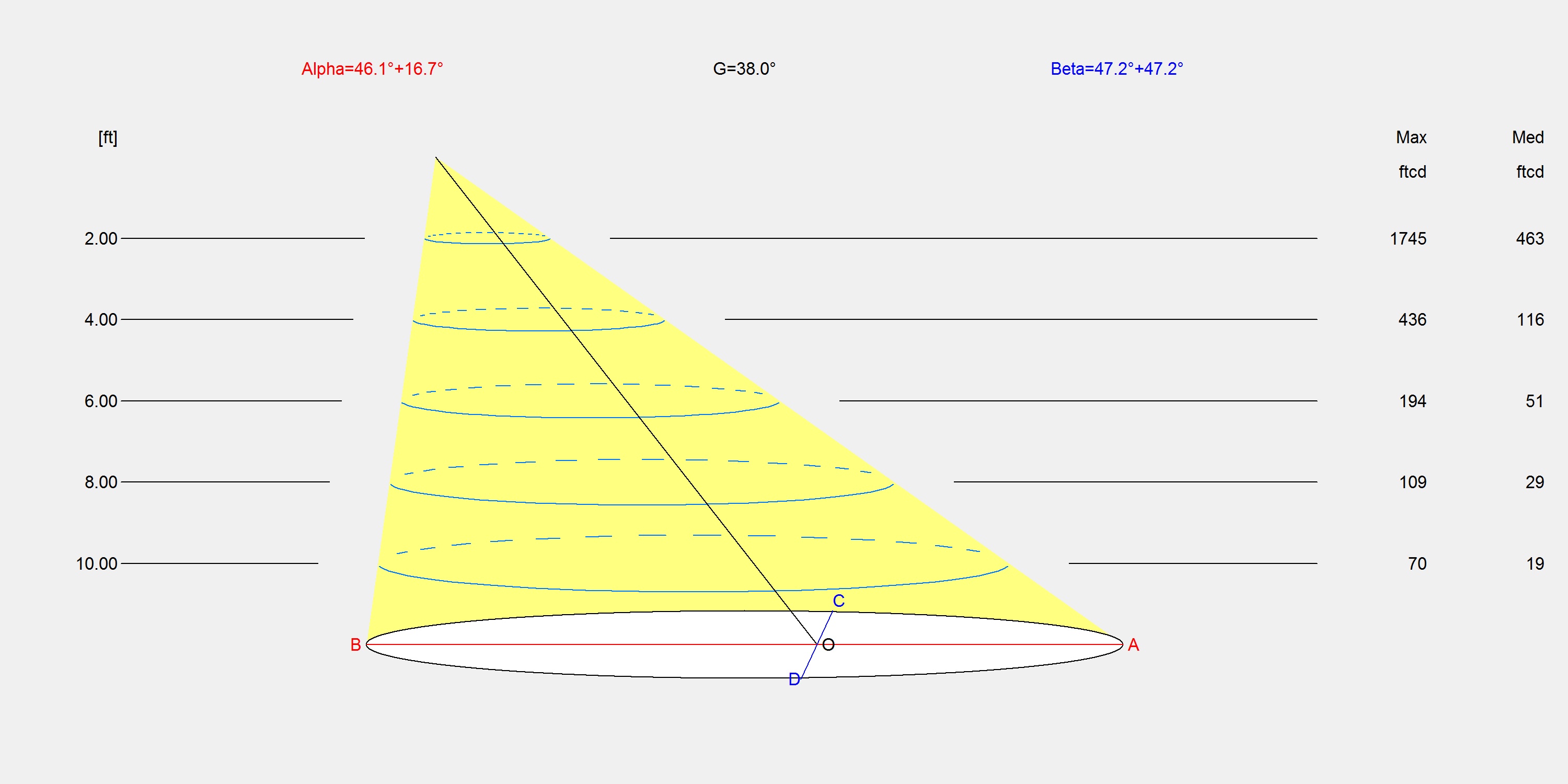

Photometric Lvk GUELL 2 TYPE II 2

TECHNICAL DRAWINGS

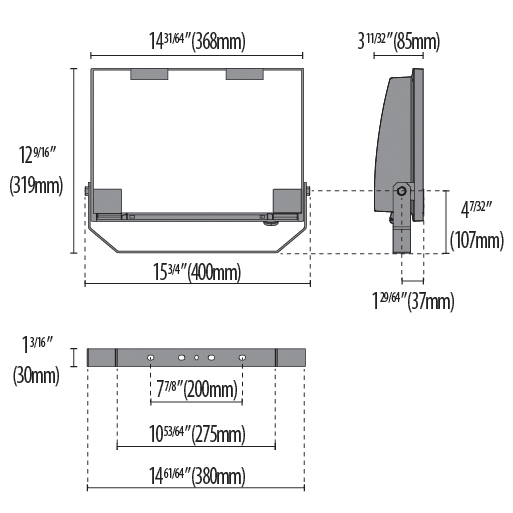

Tech Design GUELL 2 TYPE II

OPTIONAL ACCESSORIES

GUELL 2/A

Cover GUELL 2 Asymmetrical
14173694
Cover GUELL 2 Asymmetrical
ALUMINUM METALLIC
Louvre GUELL 2 Asymmetrical
14173820
Louvre GUELL 2 Asymmetrical

GUELL 2

Soft glass GUELL 2
14173994
Soft glass GUELL 2
ALUMINUM METALLIC
Wall support 500 mm/19.69" GUELL 1/2
14173394
Wall support 500 mm/19.69" GUELL 1/2
ALUMINUM METALLIC
Wall support 1000 mm/39.37" GUELL 1/2
14173494
Wall support 1000 mm/39.37" GUELL 1/2
ALUMINUM METALLIC
Protective grid GUELL 2
14173502
Protective grid GUELL 2

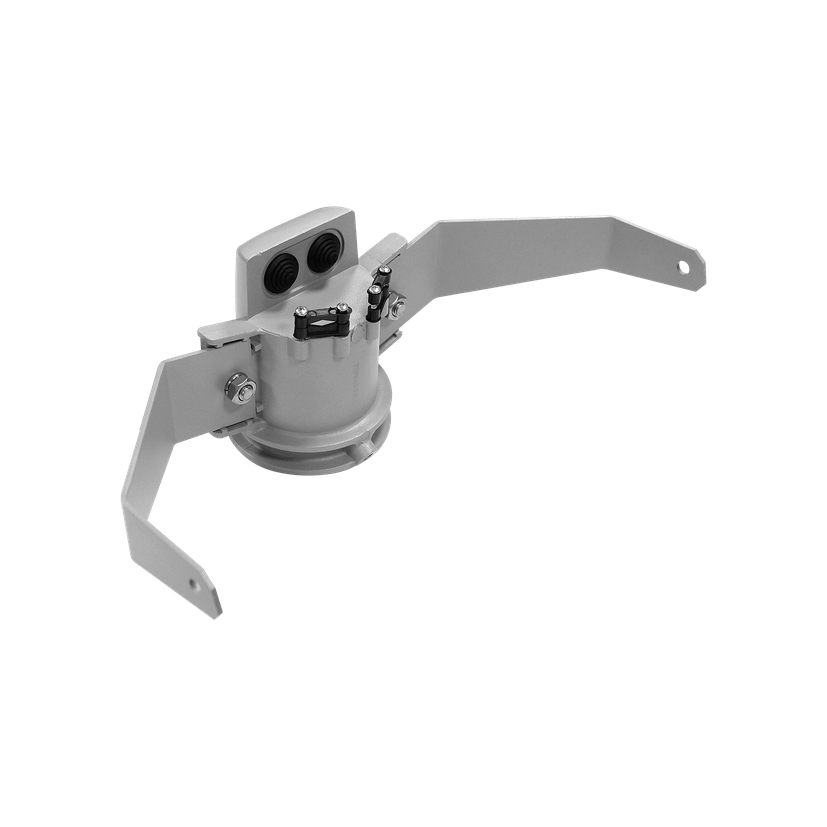

Single pole top support GUELL 2
14174094
Single pole top support GUELL 2
ALUMINUM METALLIC

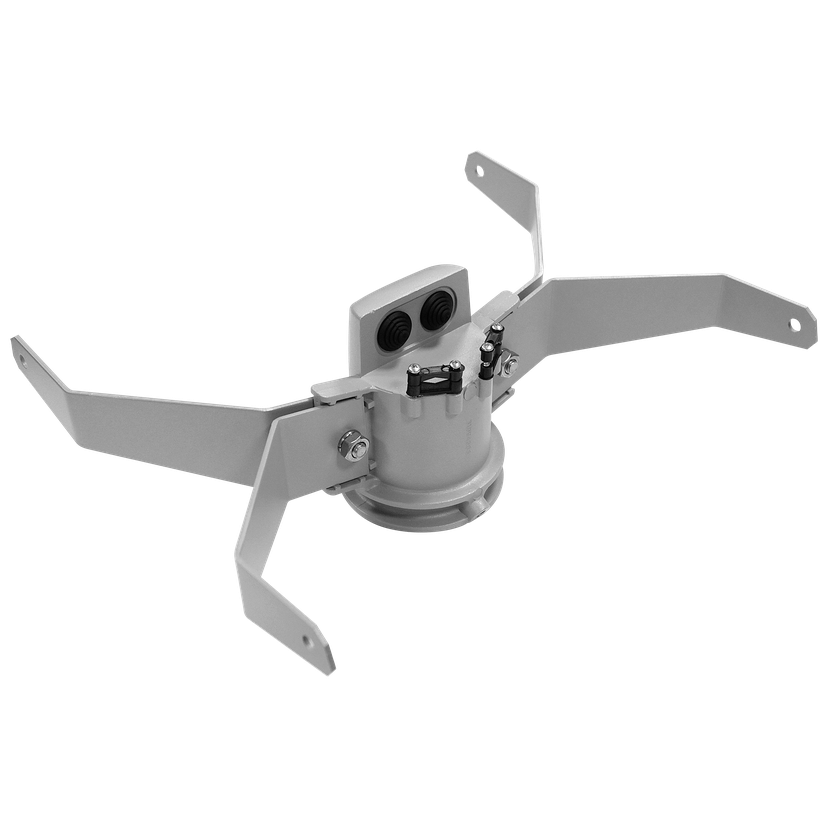

Double pole top support GUELL 2
14174194
Double pole top support GUELL 2
ALUMINUM METALLIC
Plate Cover JBox
07957
Plate Cover JBox
ALUMINUM METALLIC
