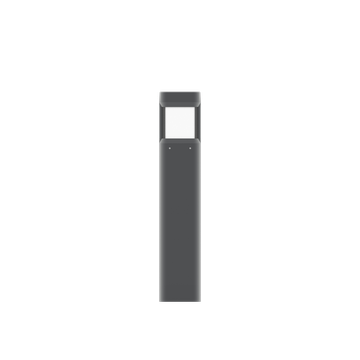

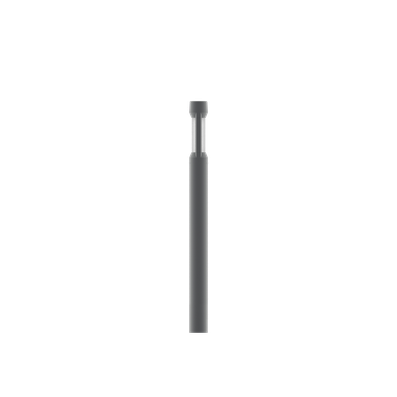

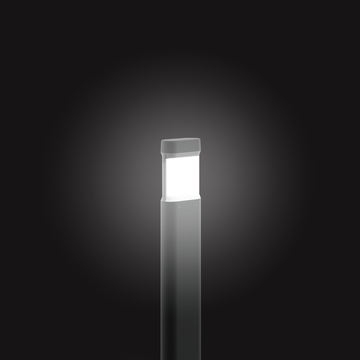

AMON MINI SOFT TYPE V

IN
AMON MINI SOFT TYPE V
AMON MINI SOFT TYPE V
AMON MINI SOFT TYPE V
AMON MINI SOFT TYPE V

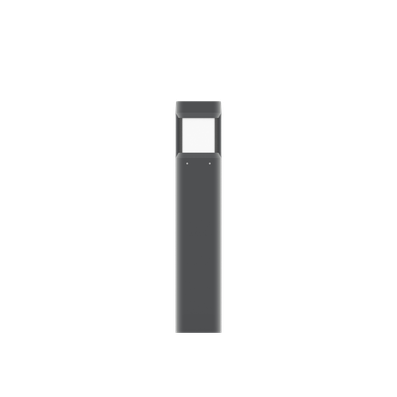

AMON MINI SOFT TYPE V - 1

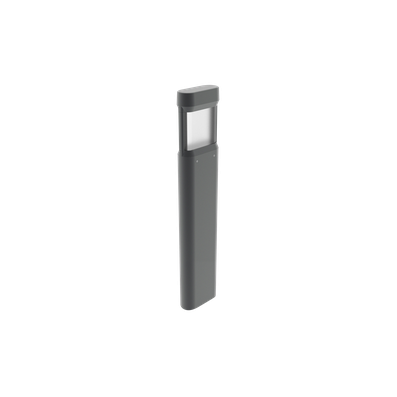

AMON MINI SOFT TYPE V - 2

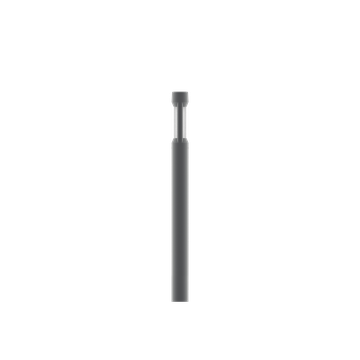

AMON MINI SOFT TYPE V - 3

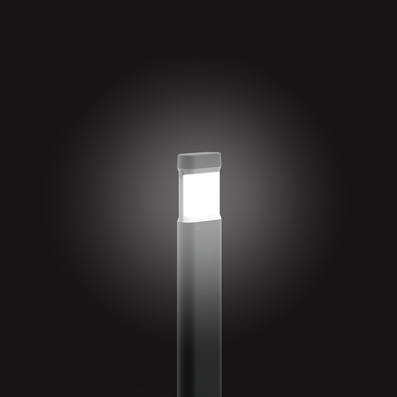

AMON MINI SOFT TYPE V - 4
Part number 070254
Lampholder: LED
Wattage: 45 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 4000
IESNA Type: Type V
BUG Rating: B1-U3-G1
Luminaire lumen output [lm]: 1357 lm
L: L70
B: B10
Lifetime: 150000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 50

Description

  • Lighting column series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Robust copper-free (<1%) extruded aluminum column profile and copper-free (<1%) precision die-cast aluminum housing, ring/faceplate, top cap, and inspection access door.
  • - Satin UV-stabilized, high-impact resistant diffuser (SOFT versions).
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - Type V light distribution.
  • - Diffuse light emission (SOFT).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Steel ground base plate included for bollards.
  • - Base heavy-duty cover, anchor bolts, and direct-burial support available for AMON MINI / MAXI (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - 5-year warranty.
  • - Product meets Buy American Act (BAA) requirements within ARRA.

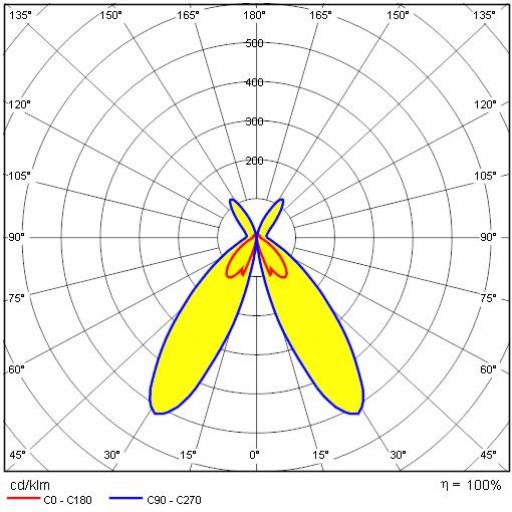

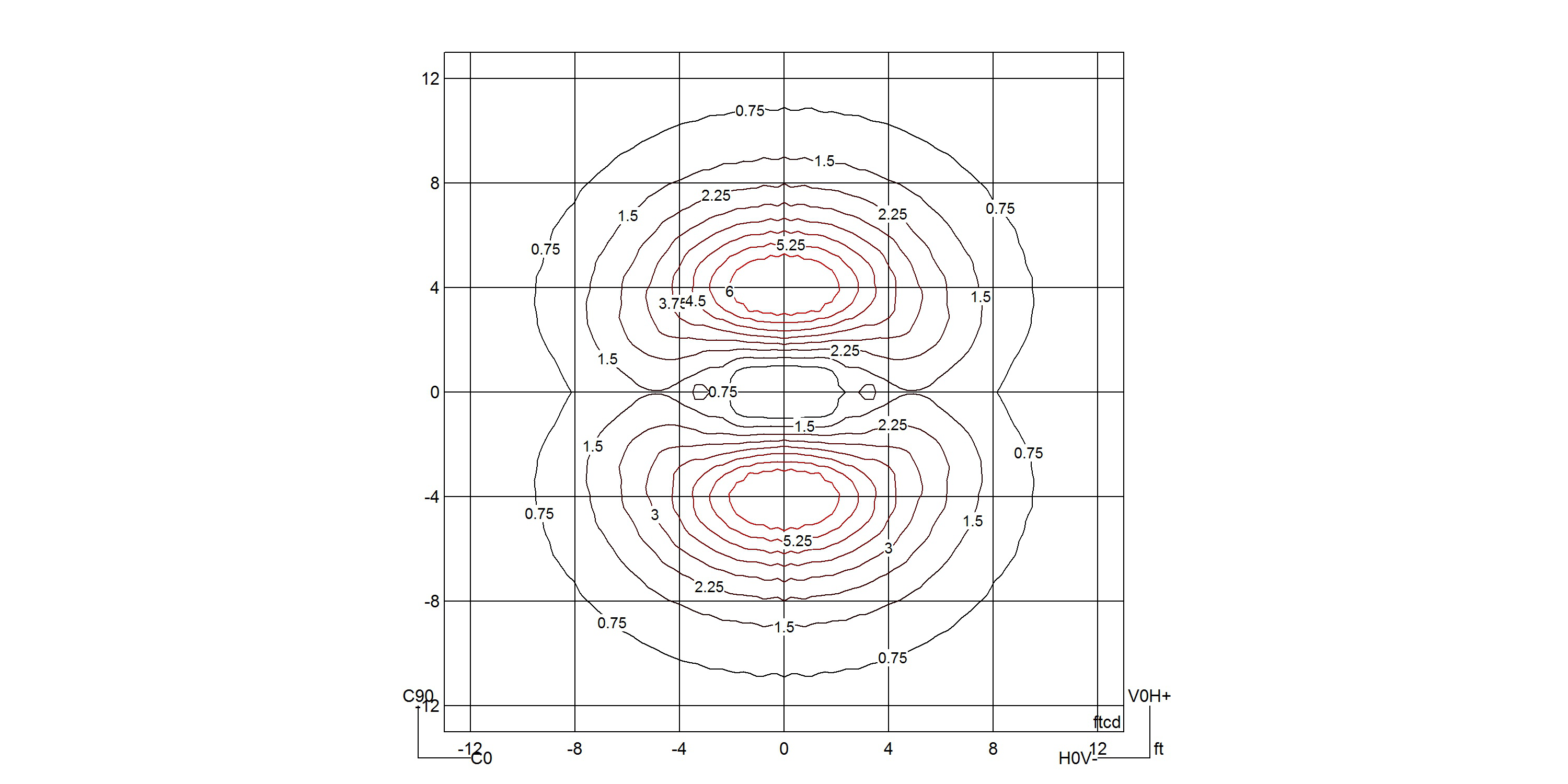

Photometric data

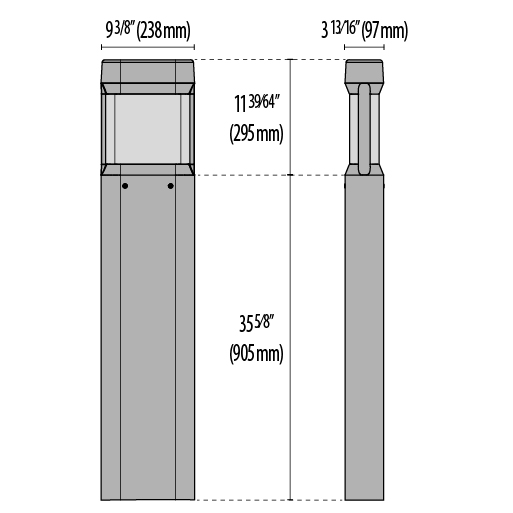

Technical drawings

Tech Design AMON MINI SOFT TYPE V 1++

OPTIONAL ACCESSORIES

AMON MINI

310921
Heavy-duty base cover - Iron gray
Iron gray
DownloadDownloads

Documentation: AMON MINI - 310921

310922
Anchor Bolts w/ template
DownloadDownloads

Documentation: AMON MINI - 310922

310923
Direct-burial base support
DownloadDownloads

Documentation: AMON MINI - 310923
