Built to last
Our team developed the AMON series as a solution to the mundane bollards and columns seen daily. This cutting edge, exclusive design is available standard as a 4' bollard, 13' post, and we also offer a wall version with an integral EM option.The name AMON, King of Gods in ancient Egypt, also meant "mysterious in shape." From this idea, our team designed a robust, yet at the same time classy and elegant unique oval-shaped luminaire.This series provides the specifier versatile lighting solutions while ensuring reduced installation and maintenance costs. AMON is the perfect solution for tomorrow's city due to the variety of product options and light distributions. From zero light pollution, glare-free options to the "soft/comfortable" light using our UV stabilized polycarbonate option, the AMON is a versatile option for virtually any project.

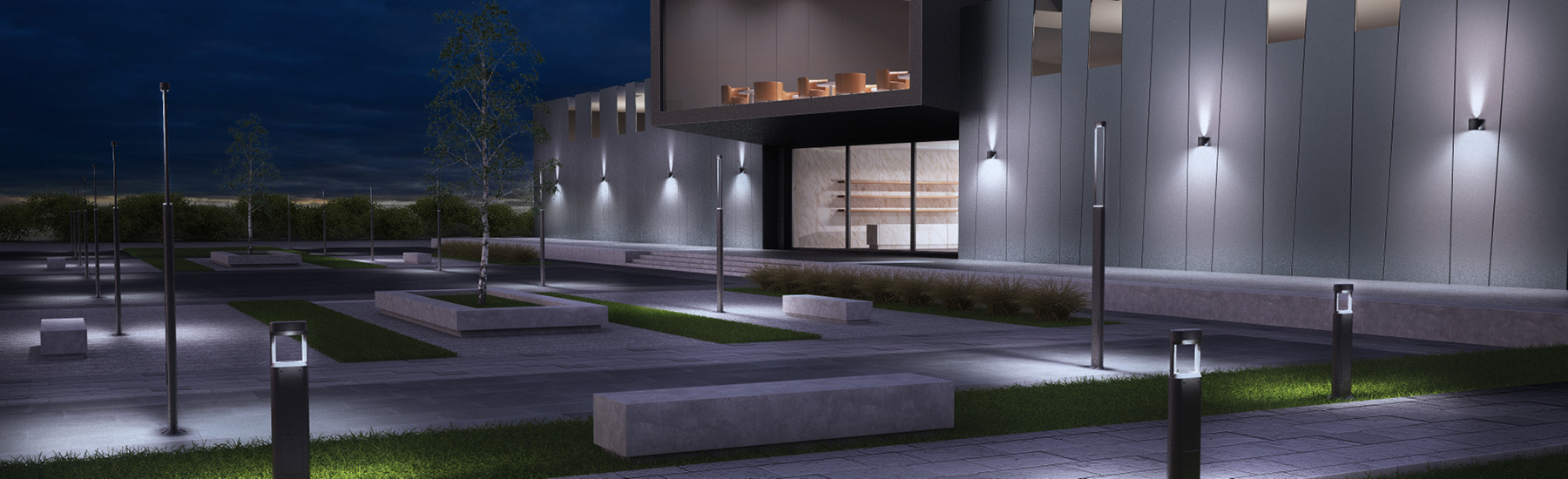

Design-coordinated lighting column (AMON MAXI), bollard (AMON MINI) and wall pack (AMON WALL) series. Fixtures consist of:
  • Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • Robust copper-free (<1%) extruded aluminum column profile and copper-free (<1%) precision die-cast aluminum housing, ring/faceplate, top cap, and inspection access door.
  • Copper-free extruded aluminum housing and copper-free precision die-cast aluminum ring, bracket and mounting plate (AMON WALL).
  • Extra-clear, flat, tempered silk-screened soda-lime glass diffuser. Satin UV-stabilized, high-impact resistant diffuser (AMON SOFT). High-efficiency COB, combined with an optimized passive cooling system, provides a long LED lifespan (AMON TYPE V). Custom MCPCB utilized to maximize heat dissipation and promote a long LED lifespan. High-transmittance transparent optics. Internal reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection (AMON MAXI TYPE I or TYPE II / AMON MINI).
  • Custom molded, anti-aging gasket(s).
  • Stainless steel external hardware.
  • Overall standard height is 4' (AMON MINI) and 13' (AMON MAXI).
  • Steel ground base plate included for bollards.
  • Base heavy-duty cover, anchor bolts, and direct-burial support available for AMON MINI / MAXI (ordered separately).
  • Standard hinged bracket for ease of installation: wiring can be completed by mounting the bracket ahead of the luminaire, then sliding luminaire onto the bracket using quick connectors system, then securing the luminaire by tightening the stainless steel set screws (WALL versions only).
  • Type I, Type II with single (M), dual (B), and Narrow Beam (NB) light emission (WALL versions).
  • Type V overall light distribution and diffuse light emission (SOFT versions). Type I and Type II light distributions for columns only.
  • Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • Integral, emergency battery-pack designed for a minimum operation of 90 minutes (EMPK versions).
  • The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • UL Wet location listed. IP65 rated.
  • Product meets Buy American Act (BAA) requirements within ARRA.
  • Photometric data measured according to UNI EN 13032-1/4 and IES LM-79-08
  • Actual performance may differ as a result of the end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications are subject to change without notice.
  • 5-year limited warranty. Complete warranty terms located at
