GUELL 2 C/IW SF

IN
GUELL 2 C/IW SF
GUELL 2 C/IW SF
GUELL 2 C/IW SF - 1
GUELL 2 C/IW SF - 2
Part number 070561
Lampholder: LED
Wattage: 90 W
Finish: RB-10 / Iron rust / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 4000
Optic: Wide circle intensive reflector
Luminaire lumen output: 8210 lm
L: L70
B: B10
Lifetime: 150000 h
cULus:
Voltage: 120-277 V 50/60 Hz

Description

  • Long-lasting energy-efficient architectural, landscape and professional flood light series. Fixtures consist of:
  • - Copper-free precision die-cast aluminum housing, and adjustable steel mounting bracket.
  • - Extra-clear, flat, tempered silk-screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - NEMA 5H x 5V light distribution (C/IW)
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Standard heavy-duty slip-fitter (SF versions) for 2 3/8" OD pipe for a simplified installation.
  • - Standard quick release latch(es) allow for tool-free access.
  • - Louver, frosted glass, protective grid, wall support 19.69" / 39.37", single or double pole top support, and matching junction box plate accessories available (ordered separately).
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

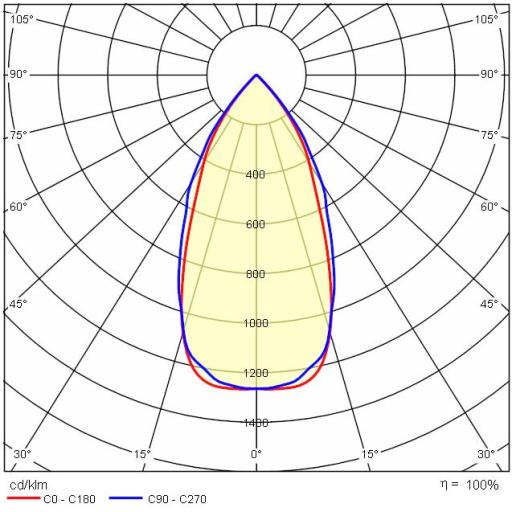

Photometric data

Photometric Lvk GUELL 2 C/IW SF 1

Technical drawings

Tech Design GUELL 2 C/IW SF

OPTIONAL ACCESSORIES

GUELL 2

Protective grid GUELL 2
14173502
Protective grid GUELL 2
