GUELL 2 C/IW SF

IN
GUELL 2 C/IW SF
GUELL 2 C/IW SF
GUELL 2 C/IW SF - 1
GUELL 2 C/IW SF - 2
Part number 070562
Lampholder: LED
Wattage: 110 W
Finishing: GR-94 / Aluminum metallic / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 4000
Optic: Circular Intensive-Wide optics
Nema Type: 5H x 5V
IESNA Type: Type V
BUG Rating: B4-U0-G0
Luminaire lumen output (lm): 10517 lm
L: L70
B: B10
Lifetime: 130000 h
cULus:
Voltage: 120/277 V

Description

  • Long-lasting energy-efficient floodlight series. Fixtures consist of:
  • - Copper-free precision die-cast aluminum housing, and adjustable steel mounting bracket.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - NEMA 5H x 5V light distribution (C/IW)
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Standard heavy-duty slip-fitter (SF versions) for 2 3/8" OD pipe for a simplified installation.
  • - Standard quick release latch(es) allow for tool-free access.
  • - Louver, frosted glass, protective grid, wall support 19.69" / 39.37", single or double pole top support, and matching junction box plate accessories available (ordered separately).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

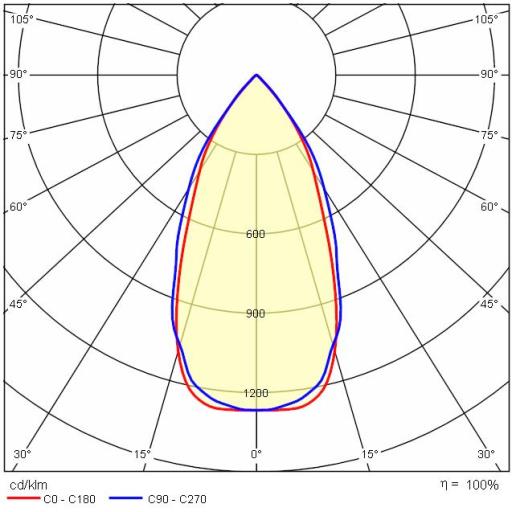

Photometric data

Photometric Lvk GUELL 2 C/IW SF 1

Technical drawings

Tech Design GUELL 2 C/IW SF

OPTIONAL ACCESSORIES

GUELL 2

Protective grid GUELL 2
14173502
Protective grid GUELL 2
