STRIP SQUARE+ 780 (30.71") ELL

IN
STRIP SQUARE+ 780 (30.71") ELL
STRIP SQUARE+ 780 (30.71") ELL - 1
Part number 070637
Lampholder: LED
Wattage: 17.5 W
Finish: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP66
CRI: 80
Kelvin: TW 2700-6500
Optic: Elliptical reflector
Optic Beam: 15°x45°
Luminaire lumen output: 1039 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:

Description

  • Linear surface mount series. Fixtures consist of:
  • - Copper-free aluminum die-cast end-caps, extruded, and anodized housing.
  • - Copper-free aluminum extruded and anodized field-adjustable mounting bracket for aiming the luminaire.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - High-transmittance transparent optics.
  • - 9° x 9° beam angle (C/I).
  • - 15° x 45° beam angle (ELL).
  • - 40° x 60° beam angle (ELL).
  • - NEMA 5H x 4V light distribution (A18/M).
  • - 15° x 45° beam angle (RGBW).
  • - 15° x 45° beam angle (2700K - 6500K Dynamic Tunable White).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Input voltage: 48 V DC, separate driver (Dynamic Color Change versions).
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Various lengths arm/brackets available. Consult factory for more information.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Frosted (FRST) glass option available - add suffix to any part number.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

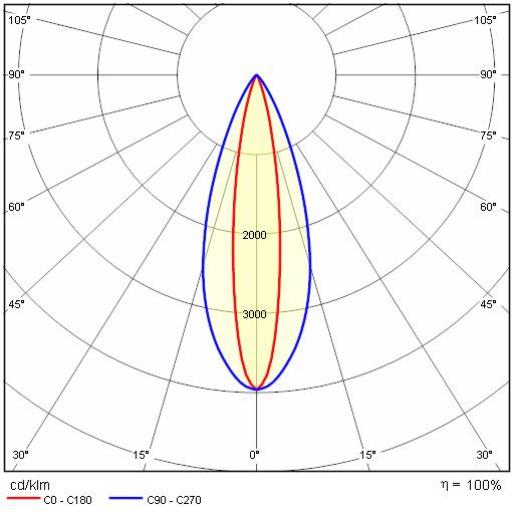

Photometric data

Photometric Lvk STRIP SQUARE+ 780 (30.71") ELL 1
Photometric Lvk STRIP SQUARE+ 780 (30.71") ELL 2
Photometric Lvk STRIP SQUARE+ 780 (30.71") ELL 3

Technical drawings

Tech Design STRIP SQUARE+ 780 (30.71") ELL

OPTIONAL ACCESSORIES

Controls

Kit driver 48V
17433
Kit driver 48V
Kit driver 48V WP
17096
Kit driver 48V WP

RF Controls

TW RF controller 4 channel (0.525A each CH)
3104275
TW RF controller 4 channel (0.525A each CH)
TW RF controller WP 4 channel (0.525A each CH)
31042750
TW RF controller WP 4 channel (0.525A each CH)
TW hand held remote
310421
TW hand held remote

WIFI Controls

TW WIFI controller 4 channel (0.525A each CH)
3104265
TW WIFI controller 4 channel (0.525A each CH)
TW WIFI controller WP 4 channel (0.525A each CH)
31042650
TW WIFI controller WP 4 channel (0.525A each CH)

DMX Controls

TW DMX enabler/decoder 4 channel (0.525A each CH)
178975
TW DMX enabler/decoder 4 channel (0.525A each CH)
TW DMX enabler/decoder WP 4 channel (0.525A each CH)
1789750
TW DMX enabler/decoder WP 4 channel (0.525A each CH)
Terminating resistor
11015
Terminating resistor
Terminating resistor WP
110150
Terminating resistor WP
