The wall grazer family

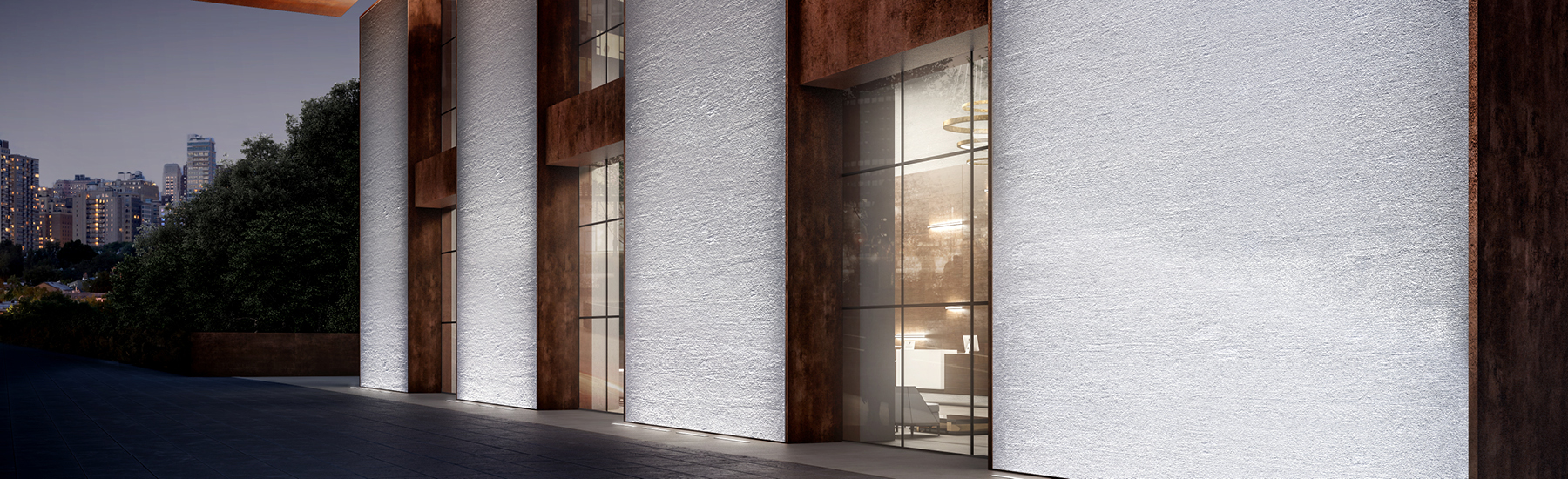

Strip Square has been one of our most successful product families, so we’ve decided to upgrade and enhance it! Welcome, STRIP SQUARE+! Designed around the same low profile, our new STRIP SQUARE+ is now upgraded to include various options to meet a wide variety of application needs. This workhorse now offers additional choices such as RGBW color mixing, dynamic Tunable White (TW), Asymmetric, and multiple optics. Whether you’re looking to illuminate your building by incorporating our surface mount version with its adjustable arm or use the in-ground, drive over version, this minimalistic design will integrate well into almost any space and highlight your architectural area. The quick-connect component makes installation a contractor’s dream while maintaining watertight integrity and eliminating the need to open the fixture during installation.
Linear surface mount (STRIP+) and linear in-ground (STRIP+ INGROUND) series. Fixtures consist of:
  • Copper-free (<1%) aluminum die-cast end-caps, extruded, and anodized housing.
  • Copper-free (<1%) aluminum extruded and anodized field-adjustable mounting bracket for aiming the luminaire.
  • Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • High-transparency polycarbonate optics for optimized light transmission.
  • Extra-clear, tempered, silk-screened, flat glass diffuser.
  • Custom molded, anti-aging gasket(s).
  • Stainless steel external hardware.
  • Available in five standard lengths of 11.1", 20.8", 30.7", 40.6" and 50.6" (STRIP+ SQUARE).
  • Pre-wired factory sealed cable for external electrical connection included.
  • Available in four standard lengths of 21.7”, 31.6”, 41.5” and 51.4” (STRIP+ SQUARE INGROUND).
  • Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • Stainless steel grounding tether included.
  • Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • Walk-over and Drive-over rated.
  • Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • Input voltage: 48 V DC, separate driver for RGBW color mixing and/or dynamic Tunable White versions (ordered separately).
  • Circular Intensive (C/I), Elliptical (ELL), Asymmetrical Medium (A18/M), color mixing (RGBW), dynamic Tunable White (TW) overall optics, and light distributions, including a filed adjustable field bracket (±90°), with double securing set screws.
  • RGBW (2700K) color mixing for high emotional impact scenographic effects.
  • Dynamic Tunable White (TW) options enable smooth variations in color temperature, from 2700K to 6500K, in response to how a space is used.
  • The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • UL Wet location listed. IP66 rated.
  • UL Wet location listed. IP67 rated (INGROUND versions).
  • Product meets Buy American Act (BAA) requirements within ARRA.
  • Consult factory for which version qualifies for the PRONTO-SHIP program. All Rough-Ins are available to ship within 48-72 hrs. Orders must be marked "PRONTO."
  • Photometric data measured according to UNI EN 13032-1/4 and IES LM-79-08
  • Actual performance may differ as a result of the end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications are subject to change without notice.
  • 5-year limited warranty. Complete warranty terms located at
