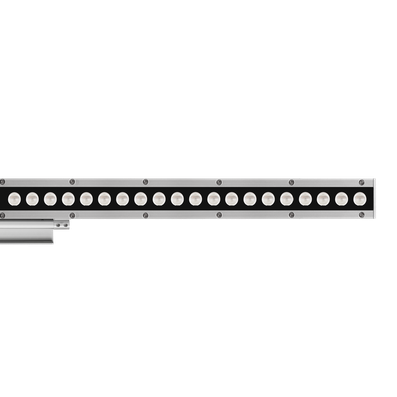

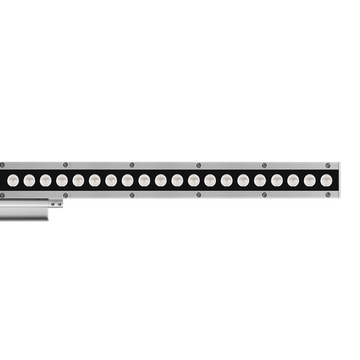

STRIP SQUARE+ 1284 (50.55") A/M

STRIP SQUARE+ 1284 (50.55") A/M
STRIP SQUARE+ 1284 (50.55") A/M - 1
Part number 070664
Lampholder: LED
Wattage: 33 W
Finish: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP66
CRI: 80
Kelvin: 4000
Optic: Asymmetric medium reflector
Optic Beam: 18°Â°
Nema Type: 5H x 4V
Luminaire lumen output: 3549 lm
L: L80
B: B10
Lifetime: 60000 h
Voltage: 120/277 V


  • Linear surface mount series. Fixtures consist of:
  • - Copper-free aluminum die-cast end-caps, extruded, and anodized housing.
  • - Copper-free aluminum extruded and anodized field-adjustable mounting bracket for aiming the luminaire.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transmittance transparent optics.
  • - Circular Intensive beam angle (C/I).
  • - Elliptical beam angle (ELL).
  • - NEMA 5H x 4V light distribution (A18/M).
  • - 15° x 45° beam angle (RGBW).
  • - 15° x 45° beam angle (2700K - 6500K Dynamic Tunable White).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Input voltage: 48 V DC, separate driver (Dynamic Color Change versions).
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Various lengths arm/brackets available. Consult factory for more information.
  • - Five optional finishes available. Add finish suffix to any part number for textured Black (BK-81), Iron gray (AN-96), Aluminum metallic (GR-94), White (WH-87), Iron rust (RB-10) when not standard.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Frosted (FRST) glass option available - add suffix to any part number.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

Photometric data

Technical drawings

Tech Design STRIP SQUARE+ 1284 (50.55") A/M
