FOCUS+ ZERO S/EW

IN
FOCUS+ ZERO S/EW
FOCUS+ ZERO S/EW
FOCUS+ ZERO S/EW
FOCUS+ ZERO S/EW - 1
FOCUS+ ZERO S/EW - 2
FOCUS+ ZERO S/EW - 3
Part number 071973
Lampholder: LED
Wattage: 10 W
Finish: WH-87 / WHITE / TEXTURED
Degree of protection: IP65
CRI: 80
Kelvin: 4000
Optic: SYMMETRIC EXTRA WIDE REFLECTOR
Luminaire lumen output: 712 lm
L: L70
B: B10
Lifetime: 35000 h
cULus:
Voltage: 120V

Description

  • Economical low-profile landscape flood light series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing, trim and adjustable mounting bracket.
  • - Extra-clear, flat, tempered silk screened soda-lime glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - NEMA 7H x 6V light distribution (S/EW).
  • - Input voltage: 120 V, integral D.O.B. module with surge protection up to 500 V.
  • - Pre-wired cable is factory sealed to housing with a cable gland allowing external electrical connections.
  • - Technopolymer ground spike accassory is available for FOCUS+ ZERO (to be ordered separately).
  • - 5-year warranty.

Photometric data

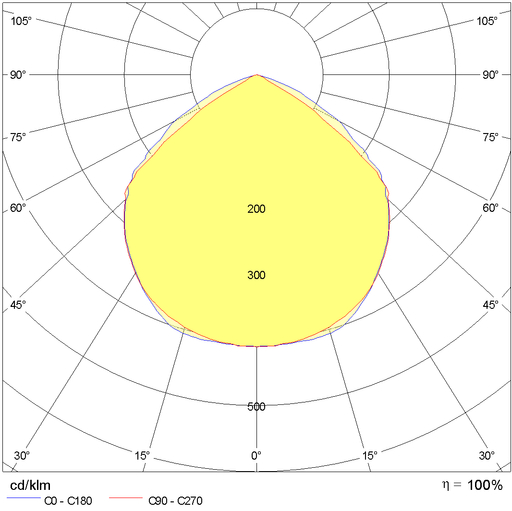

Photometric Lvk FOCUS+ ZERO S/EW 1

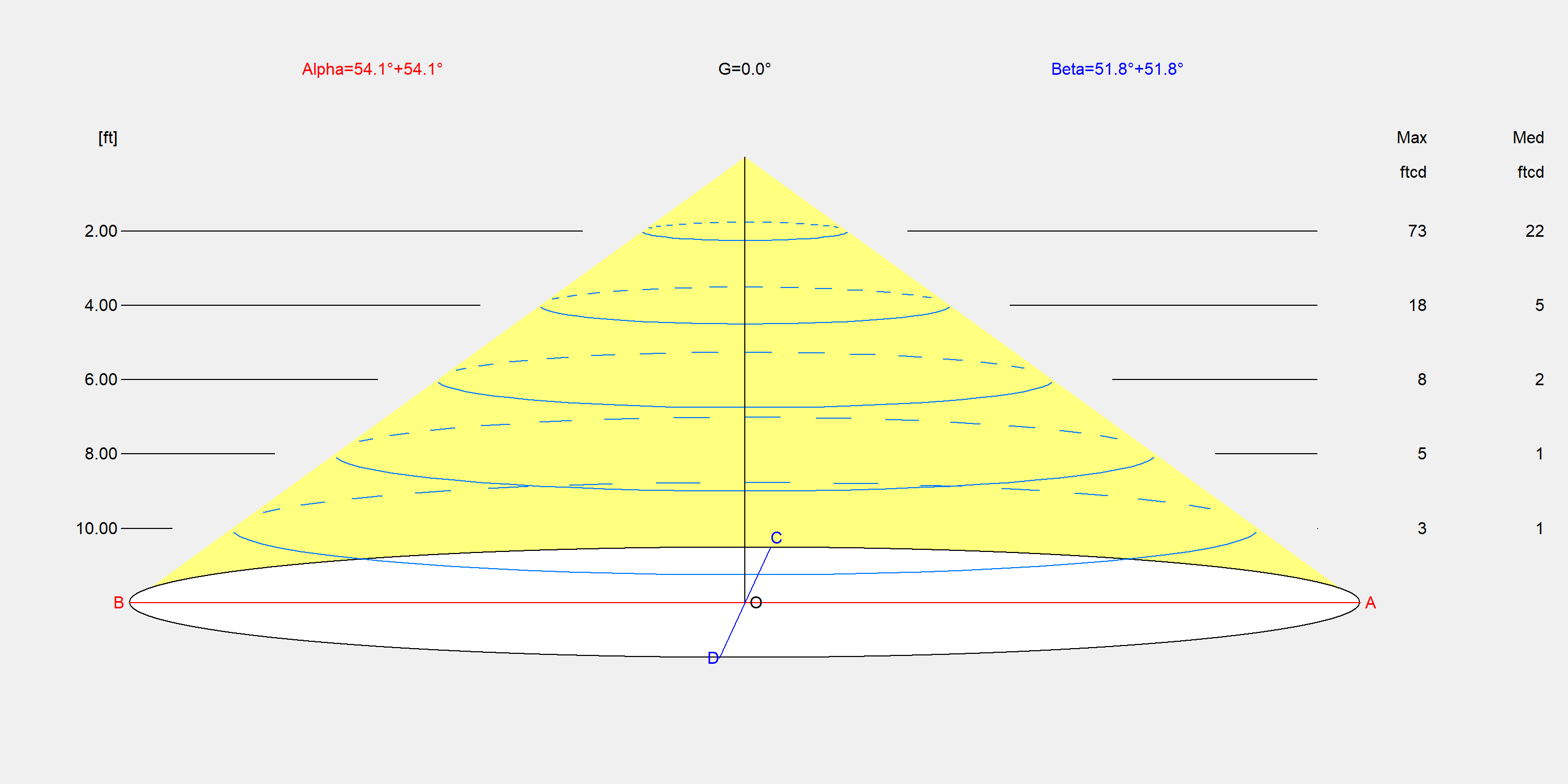

Photometric Lvk FOCUS+ ZERO S/EW 2

Technical drawings

Tech Design FOCUS+ ZERO S/EW

OPTIONAL ACCESSORIES

FOCUS+ ZERO

Rectangular cover Jbox textured white
07962
Rectangular cover Jbox textured white
WHITE
Round cover Jbox textured white
07965
Round cover Jbox textured white
WHITE
Ground spike
700191
Ground spike
BLACK
