FOCUS+ ZERO S/EW

IN
FOCUS+ ZERO S/EW
FOCUS+ ZERO S/EW
FOCUS+ ZERO S/EW

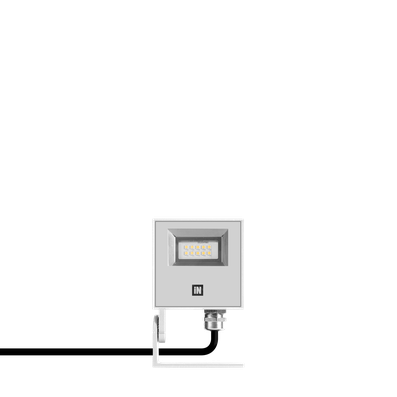

FOCUS+ ZERO S/EW - 1

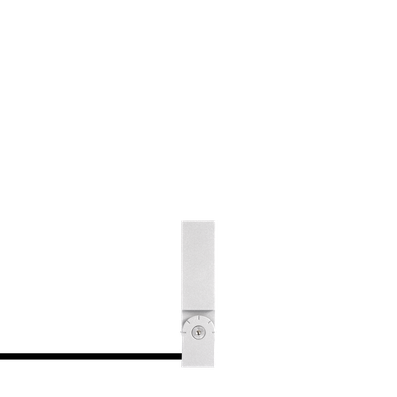

FOCUS+ ZERO S/EW - 2

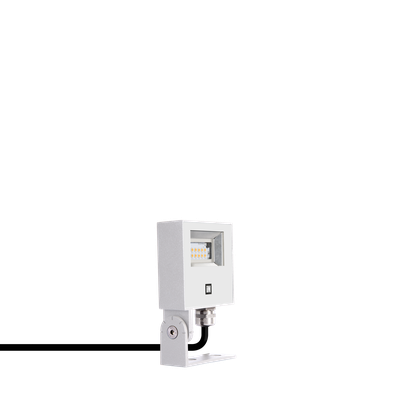

FOCUS+ ZERO S/EW - 3
Part number 071976
Lampholder: LED
Wattage: 10 W
Finishing: WH-87 / White / Textured
Degree of protection: IP65
CRI: 80
Kelvin: 3000
Optic: Symmetric Extra-Wide
Nema Type: 7H x 6V
Luminaire lumen output [lm]: 630 lm
L: L70
B: B10
Lifetime: 35000 h
cULus:
Min. ambient temperature [°C]: -10
Max. ambient temperature [°C]: 35

Description

  • Innovative low-profile landscape flood light series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing, ring/faceplate, and adjustable mounting arm.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - ustom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Symmetric Extra-Wide light distribution (S/EW).
  • - Input voltage: 120 V, integral D.O.B. module with surge protection up to 500 V.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Technopolymer ground spike accessory available for FOCUS+ ZERO (ordered separately).
  • - Matching junction box plate optional accessory available (ordered separately).
  • - 5-year warranty.

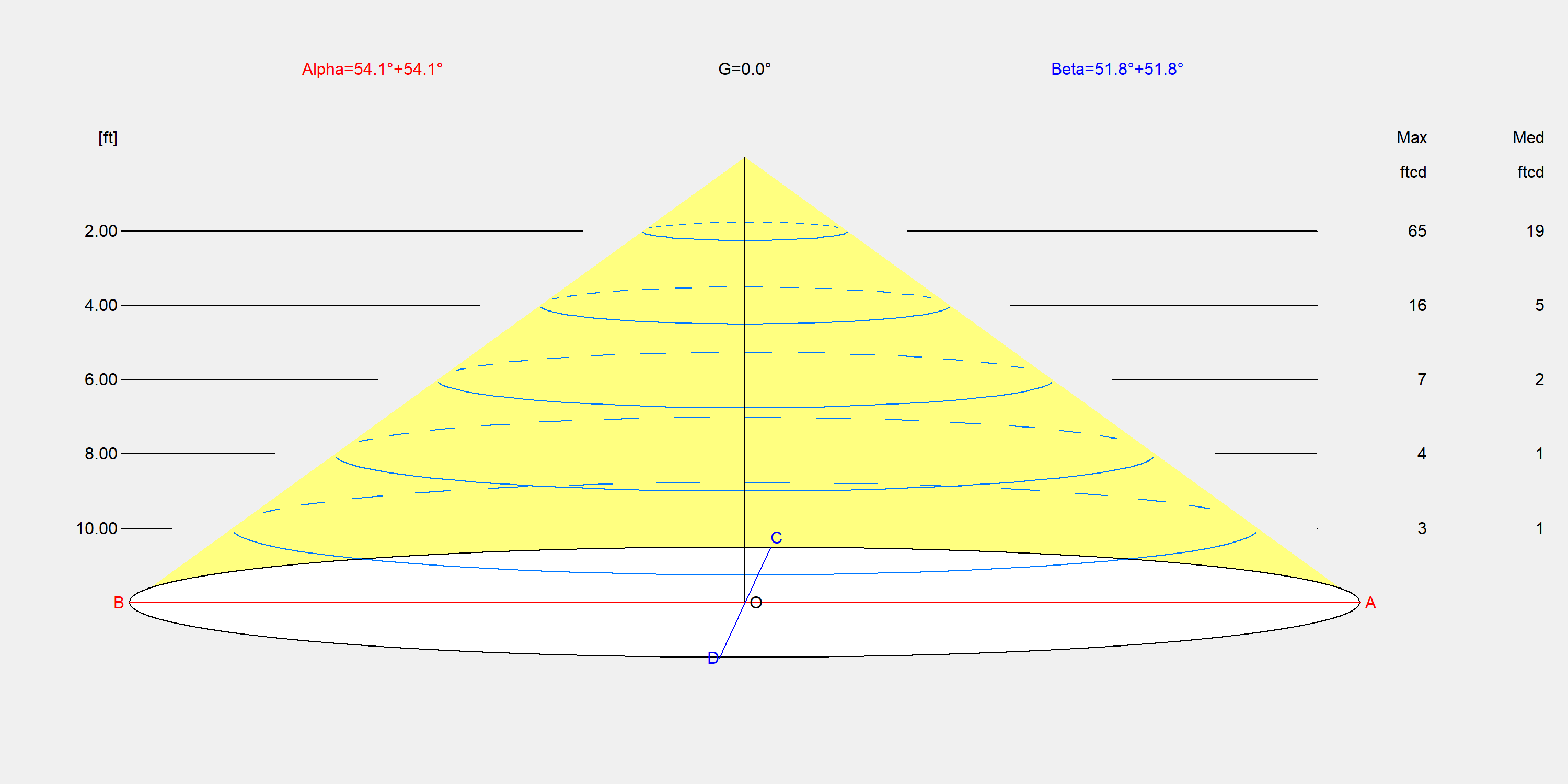

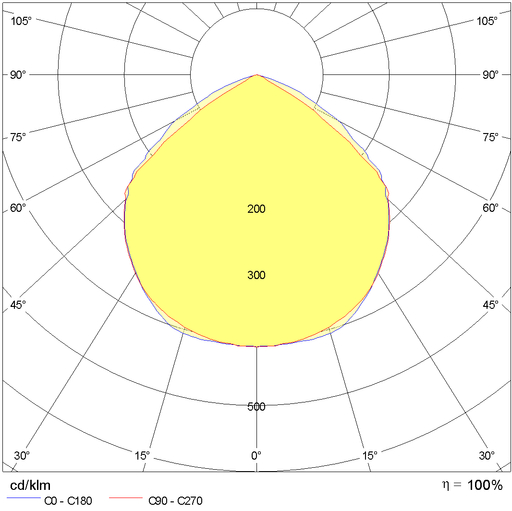

Photometric data

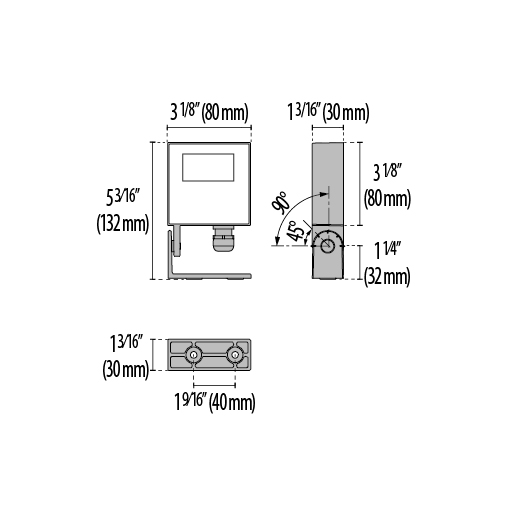

Technical drawings

Tech Design FOCUS+ ZERO S/EW 1++

OPTIONAL ACCESSORIES

FOCUS+ ZERO

07962

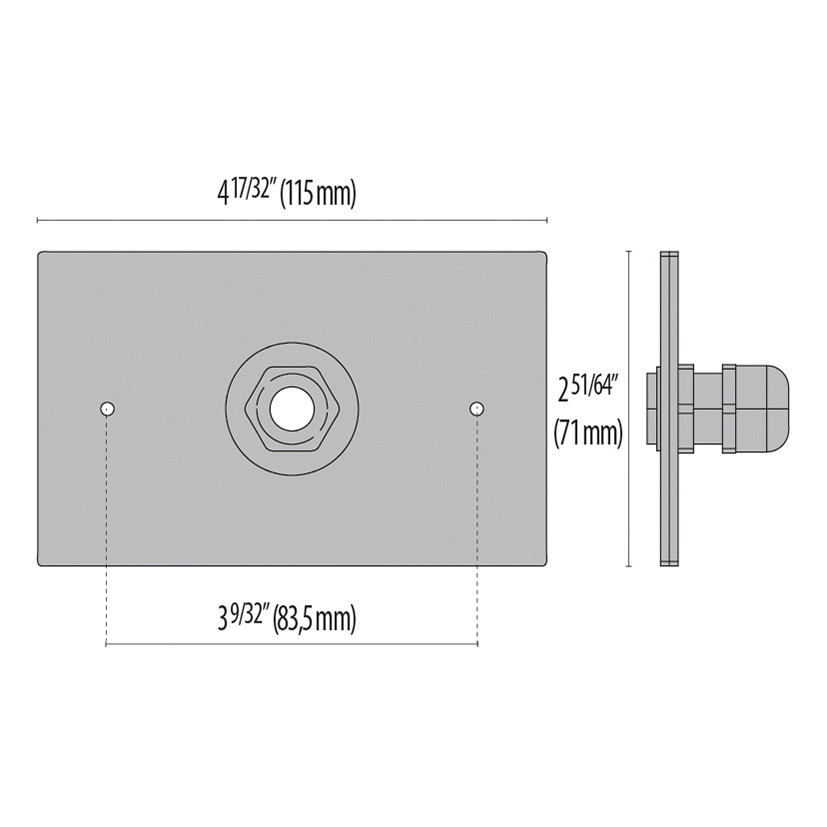

Rectangular Jbox cover - Textured white
White
DownloadDownloads

Documentation: FOCUS+ ZERO - 07962

07965

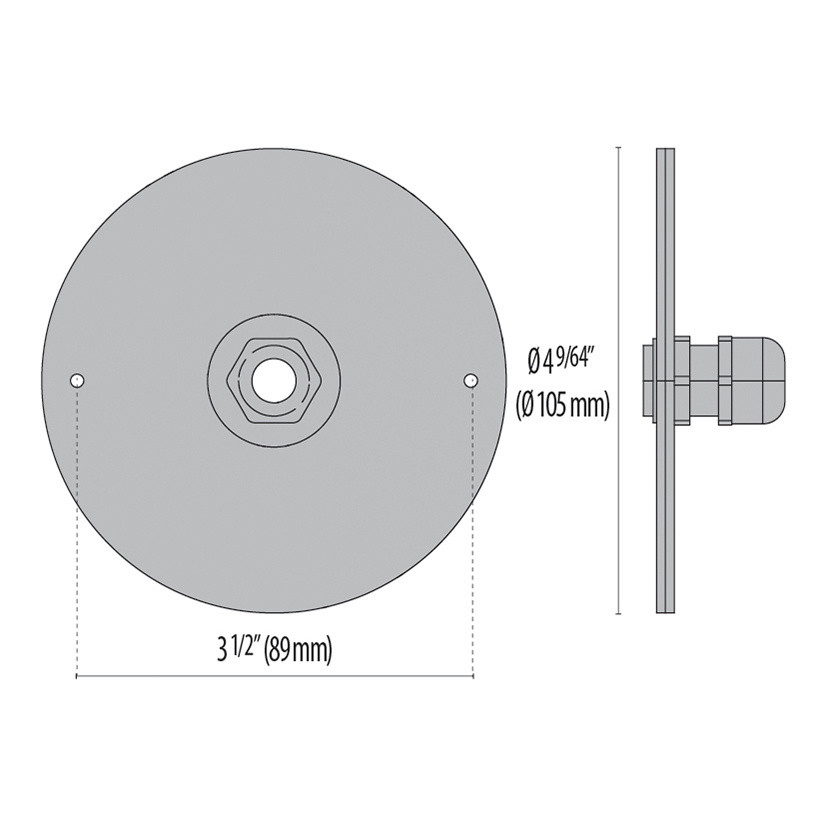

Round Jbox cover - Textured white
White
DownloadDownloads

Documentation: FOCUS+ ZERO - 07965

700191
Ground spike
Black
