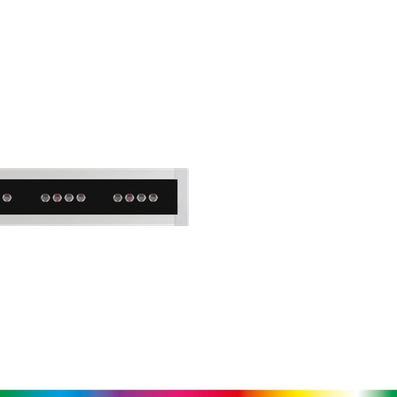

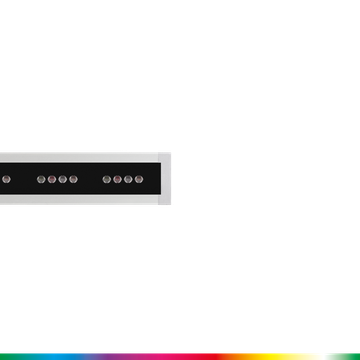

STRIP SQUARE+ INGROUND 550 (21.65") ELL

IN
STRIP SQUARE+ INGROUND 550 (21.65") ELL
STRIP SQUARE+ INGROUND 550 (21.65") ELL - 1
Part number 072045
Lampholder: LED
Wattage: 18.5 W
Finish: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP67
CRI: 80
Kelvin: RGBW 2700
Optic: Elliptical reflector
Optic Beam: 15°x45°
Luminaire lumen output: 1108 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:

Description

  • Linear in-ground series. Fixtures consist of:
  • - Copper-free aluminum die-cast end-caps, extruded, and anodized housing.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - High-transmittance transparent optics.
  • - 9° x 9° beam angle (C/I).
  • - 15° x 45° beam angle (ELL).
  • - 40° x 60° beam angle (ELL).
  • - NEMA 5H x 4V light distribution (A18/M).
  • - 15° x 45° beam angle (RGBW).
  • - 15° x 45° beam angle (2700K - 6500K Dynamic Tunable White).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Input voltage: 48 V DC, separate driver (Dynamic Color Change versions).
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - Stainless steel grounding tether included.
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Frosted (FRST) and Non-Slip (NS) glass option available - add suffix to any part number.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

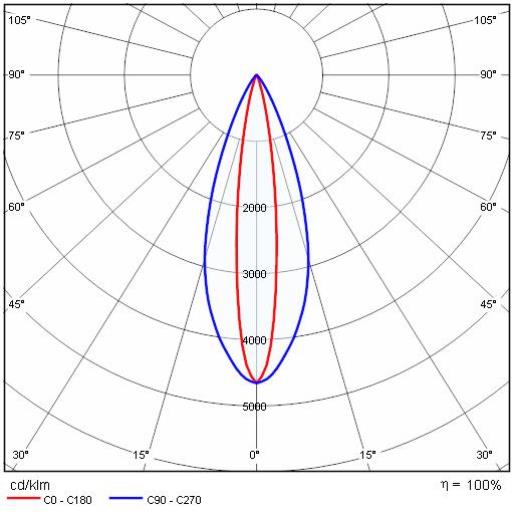

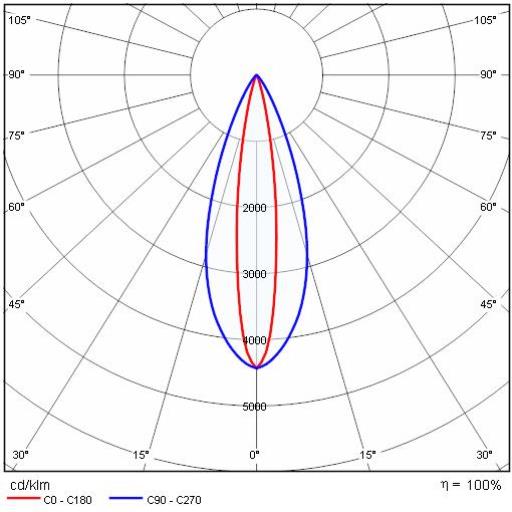

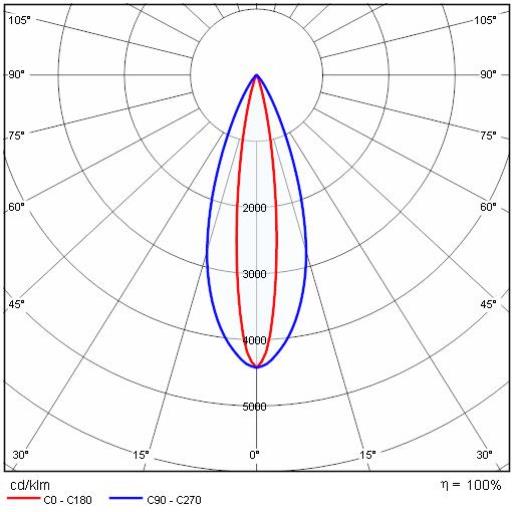

Photometric data

Photometric Lvk STRIP SQUARE+ INGROUND 550 (21.65") ELL 1
Photometric Lvk STRIP SQUARE+ INGROUND 550 (21.65") ELL 2
Photometric Lvk STRIP SQUARE+ INGROUND 550 (21.65") ELL 3
Photometric Lvk STRIP SQUARE+ INGROUND 550 (21.65") ELL 4
Photometric Lvk STRIP SQUARE+ INGROUND 550 (21.65") ELL 5
Photometric Lvk STRIP SQUARE+ INGROUND 550 (21.65") ELL 6

Technical drawings

Tech Design STRIP SQUARE+ INGROUND 550 (21.65") ELL

REQUIRED FOR INSTALLATION

STRIP SQUARE+ INGROUND

Recessed rough-in kit (~ 22")
310422
Recessed rough-in kit (~ 22")

OPTIONAL ACCESSORIES

Controls

Kit driver 48V
17433
Kit driver 48V
Kit driver 48V WP
17096
Kit driver 48V WP

RF Controls

RGBW RF controller 4 channel (0.4A each CH)
3104174
RGBW RF controller 4 channel (0.4A each CH)
RGBW RF controller WP 4 channel (0.4A each CH)
31041740
RGBW RF controller WP 4 channel (0.4A each CH)
RGBW hand held remote
310429
RGBW hand held remote

WIFI Controls

RGBW WIFI controller 4 channel (0.4A each CH)
3104164
RGBW WIFI controller 4 channel (0.4A each CH)
RGBW WIFI controller WP 4 channel (0.4A each CH)
31041640
RGBW WIFI controller WP 4 channel (0.4A each CH)

DMX Controls

RGBW DMX enabler/decoder 4 channel (0.4A each CH)
178974
RGBW DMX enabler/decoder 4 channel (0.4A each CH)
RGBW DMX enabler/decoder WP 4 channel (0.4A each CH)
1789740
RGBW DMX enabler/decoder WP 4 channel (0.4A each CH)
Terminating resistor
11015
Terminating resistor
Terminating resistor WP
110150
Terminating resistor WP
