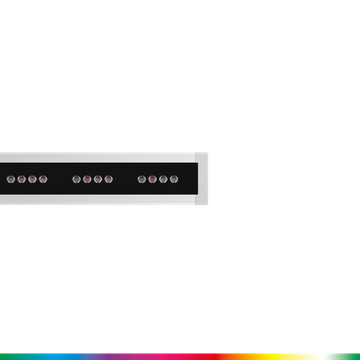

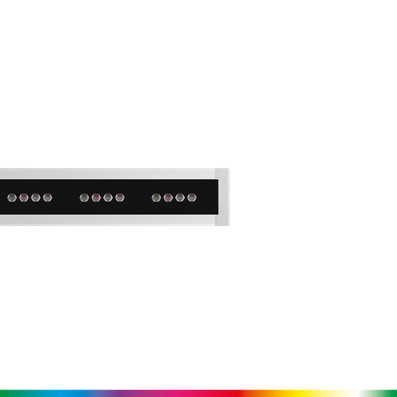

STRIP SQUARE+ INGROUND 800 RGBW (31.50"

IN
STRIP SQUARE+ INGROUND 800 RGBW (31.50"
STRIP SQUARE+ INGROUND 800 RGBW (31.50" - 1
Part number 072055
Lampholder: LED
Wattage: 28 W
Finishing: GR-EV1 / Anodized aluminum / Matt
Degree of protection: IP67
CRI: 80
Kelvin: RGBW 2700
Optic: Elliptical
Beam angle: 15°x45°
Luminaire lumen output [lm]: 1520 lm
L: L80
B: B10
Lifetime: 60000 h
cULus:
Min. ambient temperature [°C]: -10
Max. ambient temperature [°C]: 35

Description

  • Linear in-ground series. Fixtures consist of:
  • - Copper-free (<1%) aluminum die-cast end-caps, extruded, and anodized housing.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Elliptical optics (ELL).
  • - RGBW (2700K) color mixing for high emotional impact scenographic effects.
  • - Input voltage: 48 V DC, separate driver for RGBW color mixing and/or dynamic Tunable White versions (ordered separately).
  • - Pre-wired cable connects luminaire with WATER-STOP connection system, suitable for through wiring. Included cable glands accept cables from Ø0.35" up to Ø0.63".
  • - Stainless steel grounding tether included.
  • - Each rough-in kit is provided with a protective faceplate to avoid possible deformations during the installation in concrete to simplify installation.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

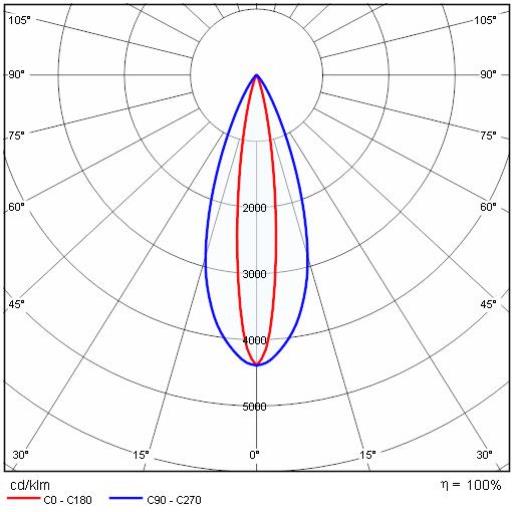

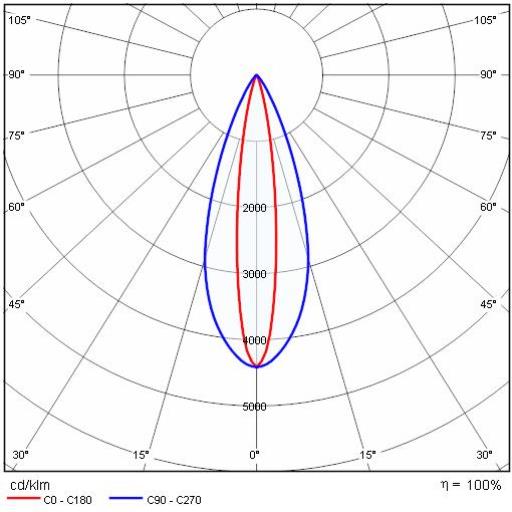

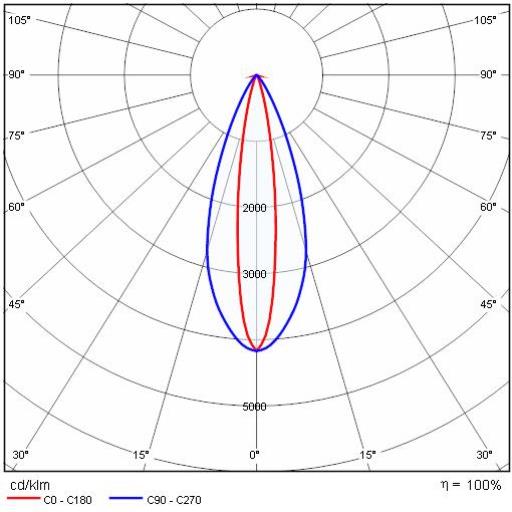

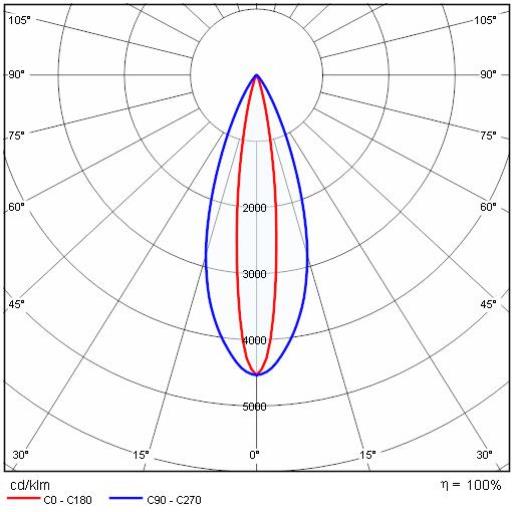

Photometric data

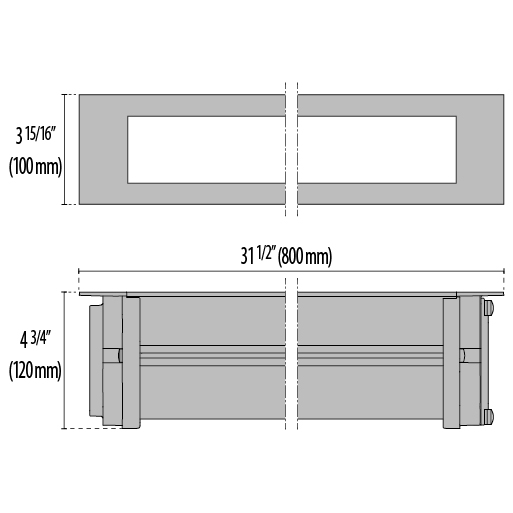

Technical drawings

Tech Design STRIP SQUARE+ INGROUND 800 RGBW (31.50" 1++

REQUIRED FOR INSTALLATION

STRIP SQUARE+ INGROUND

310423
Recessed rough-in kit (~ 32")
DownloadDownloads

Documentation: STRIP SQUARE+ INGROUND - 310423

OPTIONAL ACCESSORIES

Controls

17433

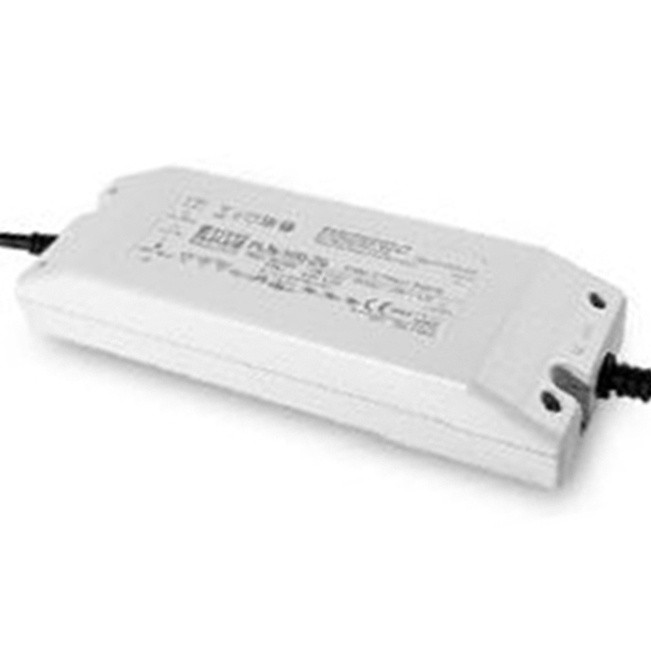

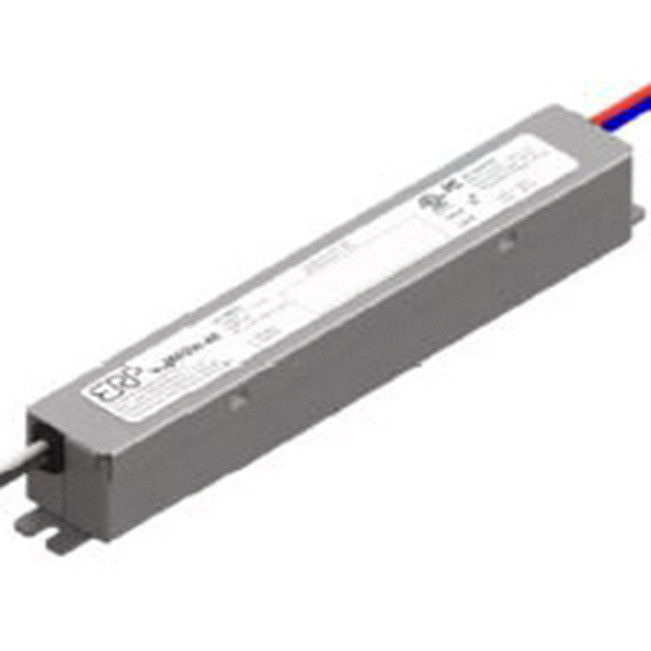

Kit driver 48V
17096
Kit driver 48V WP

RF Controls

3104174

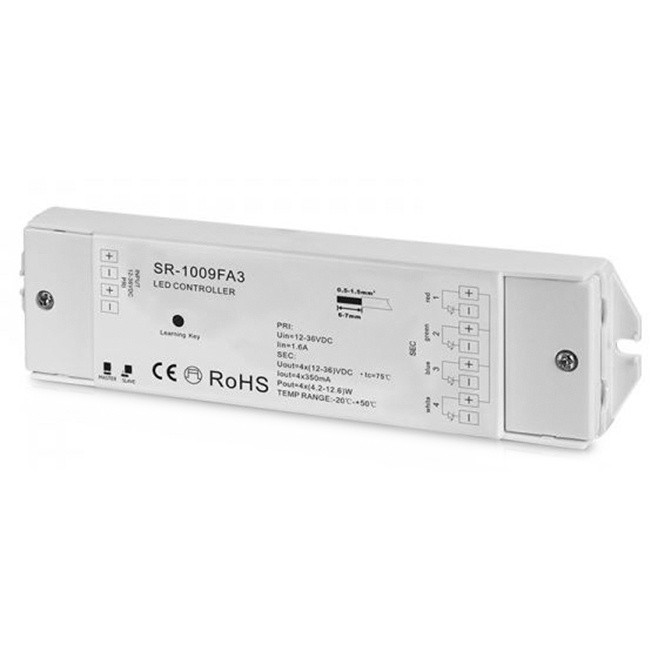

RGBW RF controller 4 channel (0.4A each CH)
31041740
RGBW RF controller WP 4 channel (0.4A each CH)
310429
RGBW hand held remote

WIFI Controls

3104164

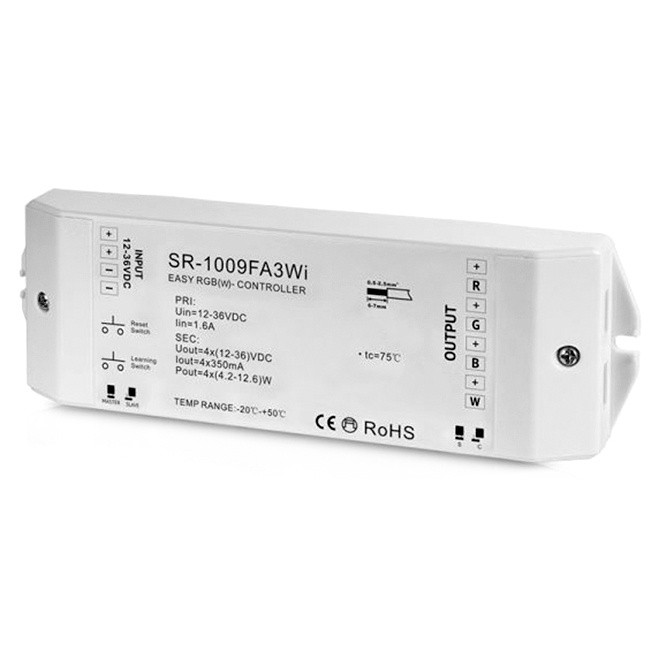

RGBW WIFI controller 4 channel (0.4A each CH)
31041640
RGBW WIFI controller WP 4 channel (0.4A each CH)

DMX Controls

178974

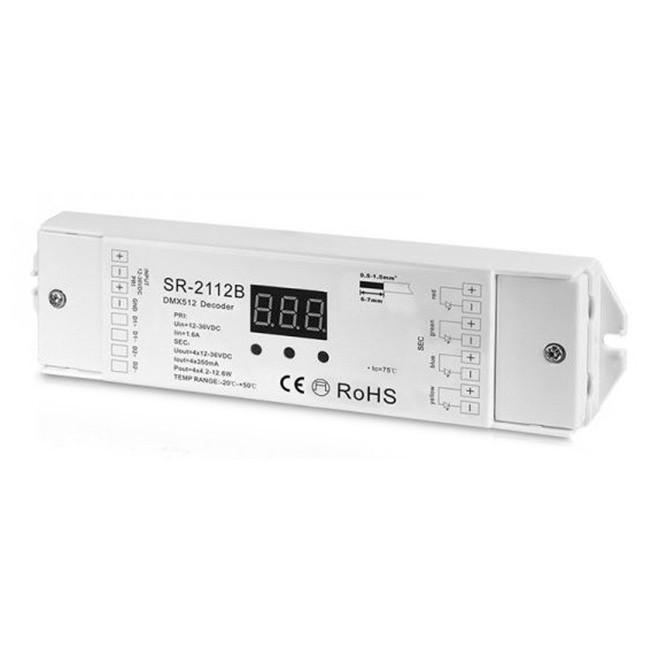

RGBW DMX enabler/decoder 4 channel (0.4A each CH)
1789740

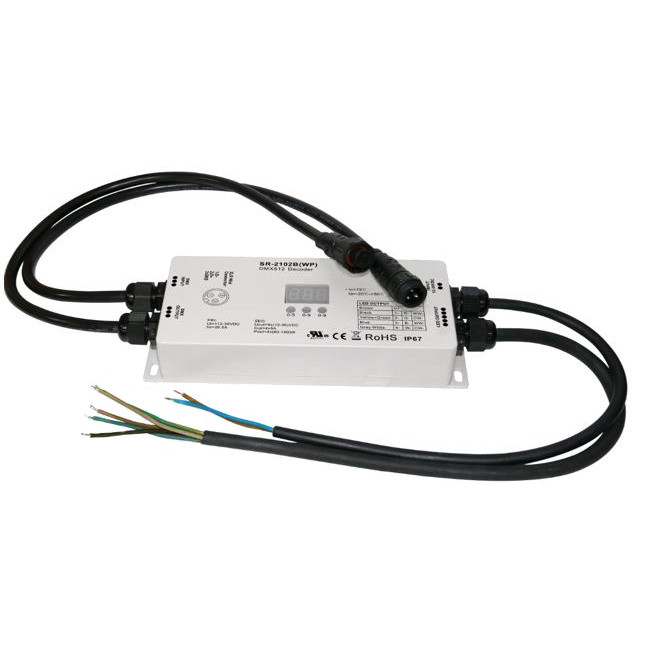

RGBW DMX enabler/decoder WP 4 channel (0.4A each CH)
11015

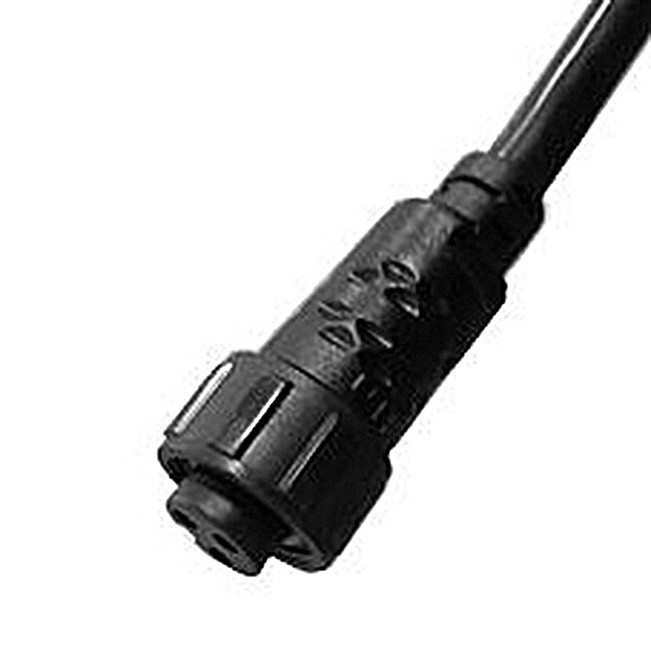

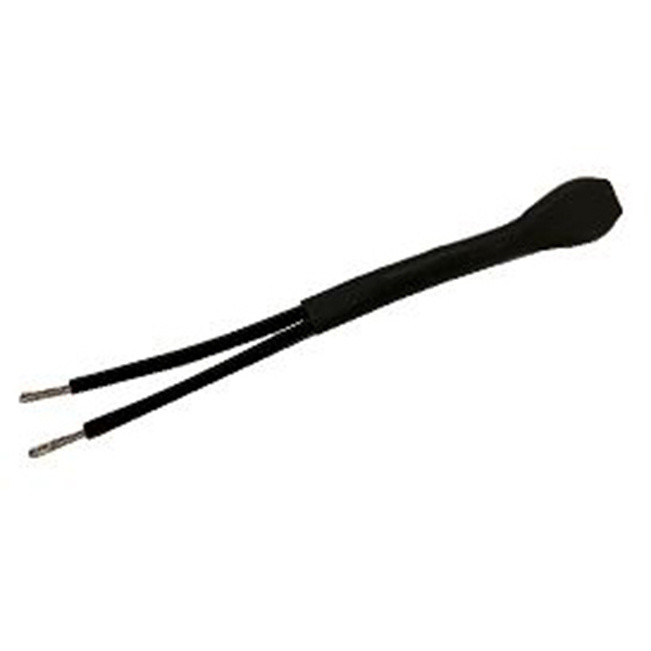

Terminating resistor
110150
Terminating resistor WP
