HEDO+ FT TYPE II

IN
HEDO+ FT TYPE II
HEDO+ FT TYPE II
HEDO+ FT TYPE II
HEDO+ FT TYPE II - 1
HEDO+ FT TYPE II - 2
HEDO+ FT TYPE II - 3
Part number 072081
Lampholder: LED
Wattage: 27 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 70
Kelvin: 3000
Optic: Road reflector
Luminaire lumen output: 2945 lm
L: L90
B: B10
Lifetime: 100000 h
cULus:
Voltage: 120-277 V 50/60 Hz

Description

  • Area and site lighting series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and top cap.
  • - Custom molded, anti-aging gasket(s).
  • - High-transmittance transparent optics.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.
  • - IESNA Type II light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Integral surge protector can withstand up to 10 kV transient line surge.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Consult factory for custom pre-wired factory sealed cable length options.
  • - Consult factory for pole information.
  • - Consult factory for wall bracket accessory, multi-head pole top mounting, and other custom options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

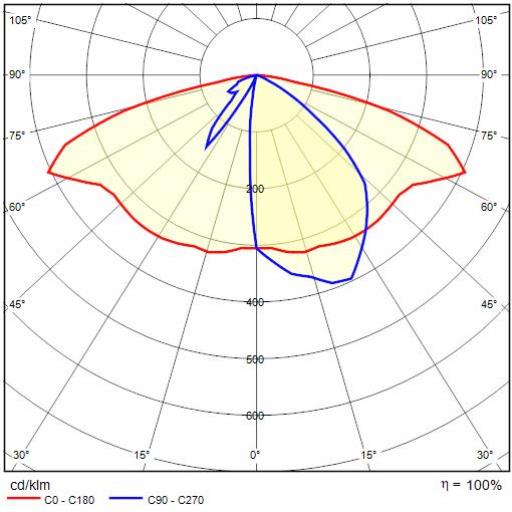

Photometric data

Photometric Lvk HEDO+ FT TYPE II 1

Technical drawings

Tech Design HEDO+ FT TYPE II

OPTIONAL ACCESSORIES

HEDO+ FT

Pole adapter 4” HEDO+
3111179
Pole adapter 4” HEDO+
Iron gray
Pole 8’ Ø4” in iron gray
71408403
Pole 8’ Ø4” in iron gray
Iron gray
Pole 10’ Ø4” in iron gray
71410403
Pole 10’ Ø4” in iron gray
Iron gray
Pole 12’ Ø4” in iron gray
71412403
Pole 12’ Ø4” in iron gray
Iron gray
Pole 14’ Ø4” in iron gray
71414403
Pole 14’ Ø4” in iron gray
Iron gray
Pole 16’ Ø4” in iron gray
71416403
Pole 16’ Ø4” in iron gray
Iron gray
