HEDO+ FT TYPE V

IN
HEDO+ FT TYPE V
HEDO+ FT TYPE V
HEDO+ FT TYPE V

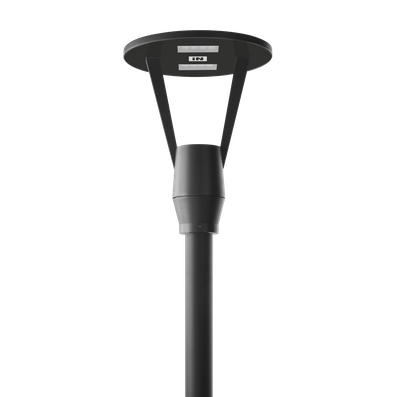

HEDO+ FT TYPE V - 1

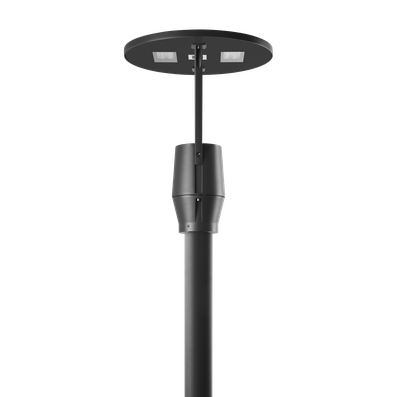

HEDO+ FT TYPE V - 2

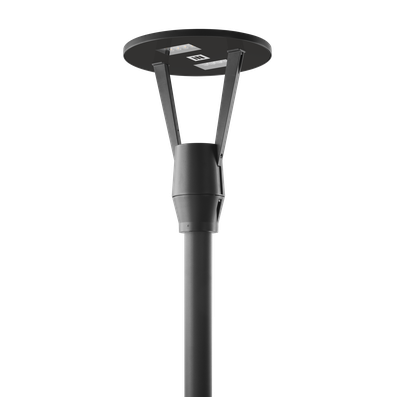

HEDO+ FT TYPE V - 3
Part number 072085
Lampholder: LED
Wattage: 25 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 70
Kelvin: 3000
Optic: Circular Extra-Wide
IESNA Type: Type V
BUG Rating: B1-U0-G1
Luminaire lumen output [lm]: 2879 lm
L: L90
B: B10
Lifetime: 100000 h
cULus:
Voltage: 120/277 V
Min. ambient temperature [°C]: -30
Max. ambient temperature [°C]: 50

Description

  • Area and site lighting series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) precision die-cast aluminum housing and top cap.
  • - Custom molded, anti-aging gasket(s).
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Pre-wired factory sealed cable for external electrical connection included.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

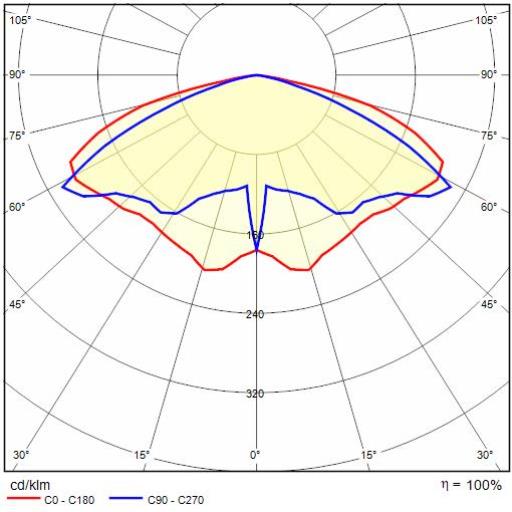

Photometric data

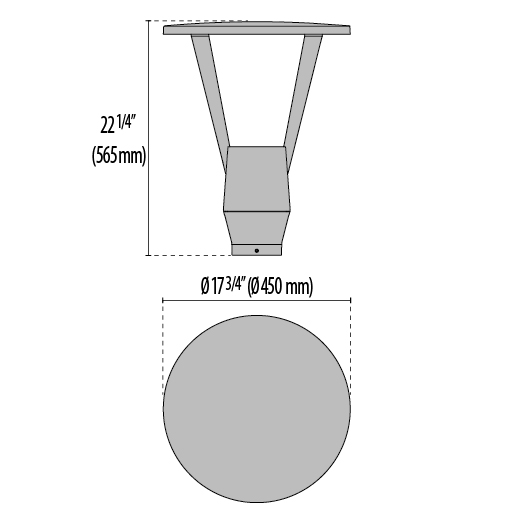

Technical drawings

Tech Design HEDO+ FT TYPE V 1++

OPTIONAL ACCESSORIES

HEDO+ FT

3111179

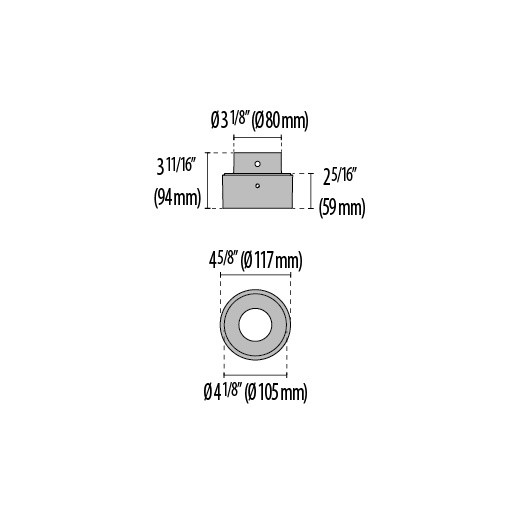

Pole adapter 4” HEDO+
Iron gray
71408403
Pole 8’ Ø4” in iron gray
Iron gray
71410403
Pole 10’ Ø4” in iron gray
Iron gray
71412403
Pole 12’ Ø4” in iron gray
Iron gray
71414403
Pole 14’ Ø4” in iron gray
Iron gray
71416403
Pole 16’ Ø4” in iron gray
Iron gray
