HEDO+ TYPE V

Description

• Area and site lighting series. Fixtures consist of:
• - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
• - Copper-free precision die-cast aluminum housing and top cap.
• - Custom molded, anti-aging gasket(s).
• - Micro-prismatic patterned, tempered, silk-screened, flat glass diffuser.
• - Stainless steel external hardware.
• - Custom MCPCB utilized to maximize heat dissipation and promote a long LED life.

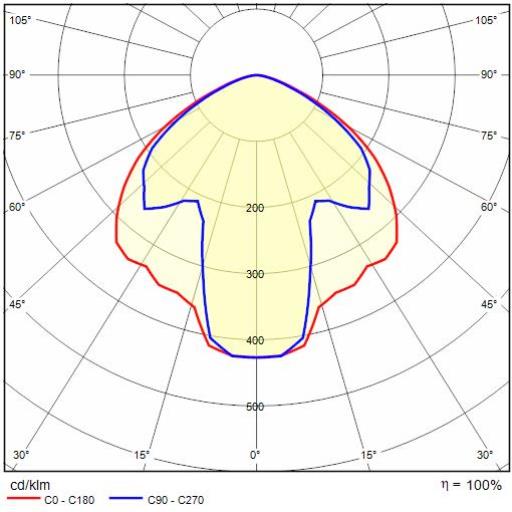

• - IESNA Type V light distribution.
• - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
• - Integral surge protector can withstand up to 10 kV transient line surge.
• - Pre-wired factory sealed cable for external electrical connection included.
• - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
• - Consult factory for custom pre-wired factory sealed cable length options.
• - Consult factory for pole information.
• - Consult factory for wall bracket accessory, multi-head pole top mounting, and other custom options.
• - Product meets Buy American Act requirements within ARRA.
• - 5-year warranty.
