KHA SLIM 7'2'' LED

IN
KHA SLIM 7'2'' LED
KHA SLIM 7'2'' LED - 1
Part number 076430
Lampholder: LED
Wattage: 14 W
Finish: BK-81 / BLACK / TEXTURED
Degree of protection: IP 66
CRI: 70
Kelvin: 5000
Optic: EXTRA WIDE CIRCLE REFLECTOR
Luminaire lumen output: 592 lm
L: L80
B: B10
Lifetime: 50000 h
cULus:
Voltage: 120/277V

Description

  • Slim area and site lighting series. Fixtures consists of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free aluminum extruded post.
  • - Copper-free precision die-cast aluminum housing and top cap.
  • - Corrosion-resistant AISI 316 stainless steel post and top cap.
  • - Clear UV-stabilized, high-impact resistant diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - High-efficiency COB combined with an optimized passive cooling system provides a long LED life.
  • - IESNA Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Anchor bolts available for bollards (to be ordered separately).
  • - Suitable for most coastal applications (stainless steel versions).
  • - Consult factory for dimming options, custom finishes and non-cataloged CCT (Kelvin) options.
  • - Consult factory for custom post height options.
  • - Product meets Buy American requirements within ARRA.
  • - 5-year warranty.

PHOTOMETRIC DATA

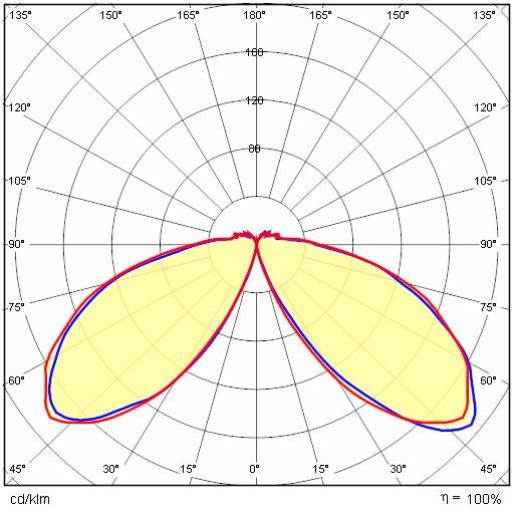

Photometric Lvk KHA SLIM 7'2'' LED 1

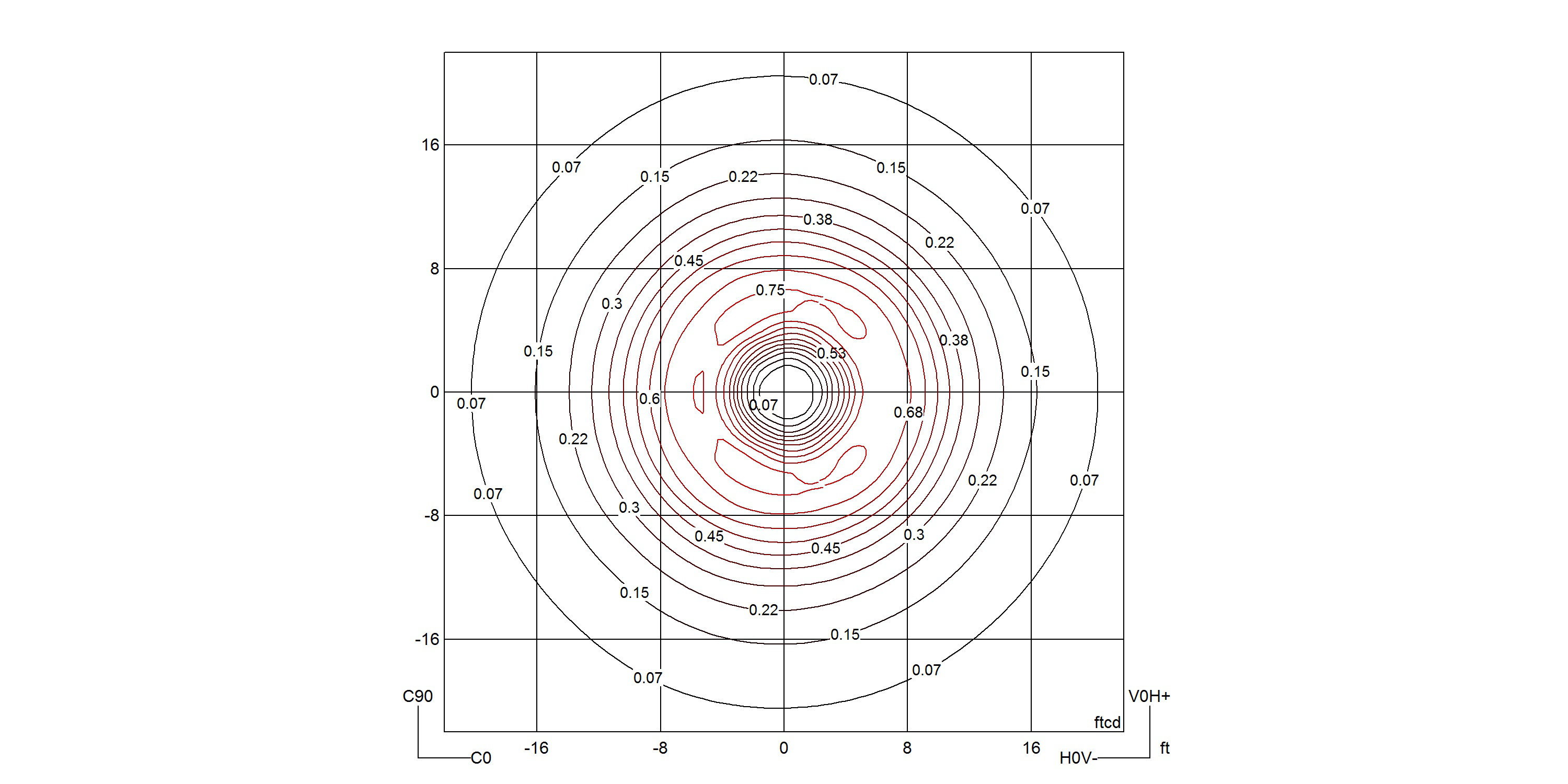

Photometric Lvk KHA SLIM 7'2'' LED 2

TECHNICAL DRAWINGS

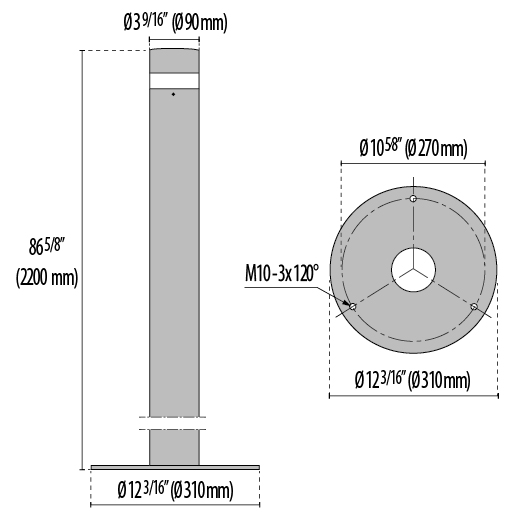

Tech Design KHA SLIM 7'2'' LED

OPTIONAL ACCESSORIES

KHA SLIM 7'2''

Anchor rods for in-ground concrete mounting stainless steel plate with galvanised steel rods (KHA SLIM H max 93 cm/36.61" only)
14071320
Anchor rods for in-ground concrete mounting stainless steel plate with galvanised steel rods (KHA SLIM H max 93 cm/36.61" only)
Frosted glass
14161420
Frosted glass
