KHA SLIM 50" LED

IN
KHA SLIM 50" LED
KHA SLIM 50" LED
KHA SLIM 50" LED - 1
KHA SLIM 50" LED - 2
Part number 076433-50
Lampholder: LED
Wattage: 50 W
Finishing: BK-81 / Black / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 3000
Optic: Circular Extra-Wide
IESNA Type: Type V
BUG Rating: B1-U5-G3
Luminaire lumen output [lm]: 4914 lm
L: L70
B: B10
Lifetime: 36000 h
Voltage: 120/277 V
Min. ambient temperature [°C]: -40
Max. ambient temperature [°C]: 25

Description

  • Slim area and site lighting series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free (<1%) aluminum extruded post.
  • - Copper-free (<1%) precision die-cast aluminum housing and top cap.
  • - Corrosion-resistant AISI 316 stainless steel post and top cap.
  • - Satin UV-stabilized diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - Diffuse light emission.
  • - Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Anchor bolts available for bollards (ordered separately).
  • - Suitable for most coastal applications (stainless steel versions).
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

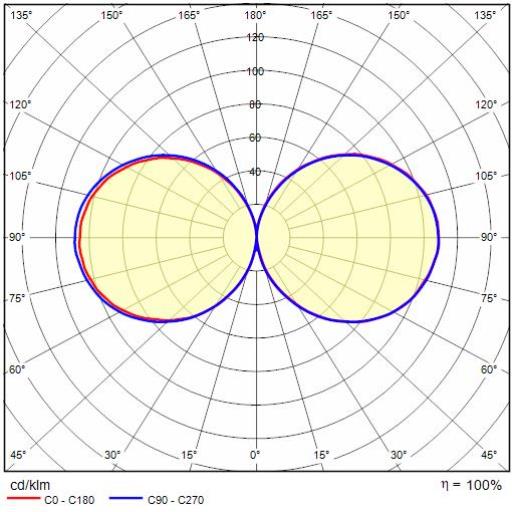

Photometric data

Technical drawings

Tech Design KHA SLIM 50" LED 1++
