KHA 5 LED

IN
KHA 5 LED
KHA 5 LED - 1
Part number 076443
Lampholder: LED
Wattage: 19 W
Finish: BK-81 / Black / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 4000
Optic: Extra wide circle reflector
Luminaire lumen output: 1356 lm
L: L70
B: B10
Lifetime: 50000 h
cULus:
Voltage: 120-277 V

Description

  • Pathway bollard series. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing and top cap.
  • - Copper-free aluminum extruded post.
  • - Corrosion-resistant AISI 316 stainless steel post and top cap.
  • - Clear UV-stabilized, high-impact resistant diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Internal specular reflector coated with 5-layers of PVD 99.98% pure aluminum providing >95% reflection.
  • - High-efficiency COB, combined with an optimized passive cooling system, provides a long LED life.
  • - IESNA Type V light distribution.
  • - Input voltage: 120-277 V (50 / 60 Hz), integral driver.
  • - Anchor bolts available for bollards (ordered separately).
  • - Suitable for most coastal applications (stainless steel versions).
  • - Consult factory for dimming options, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Consult factory for custom post height options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

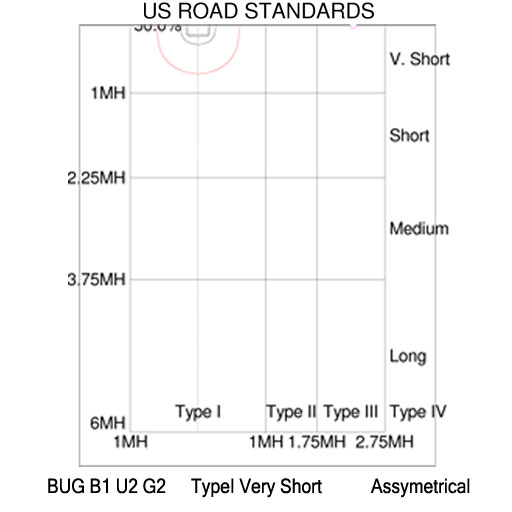

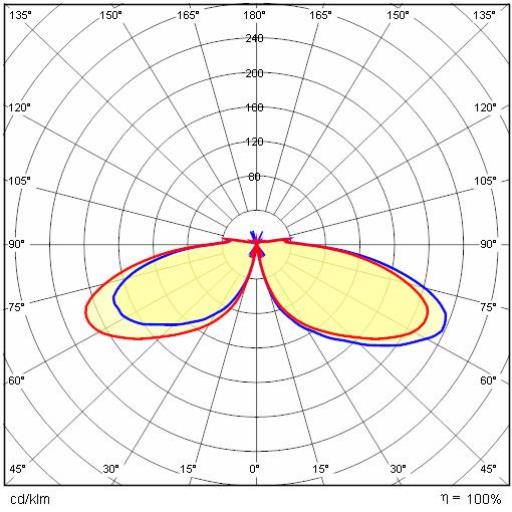

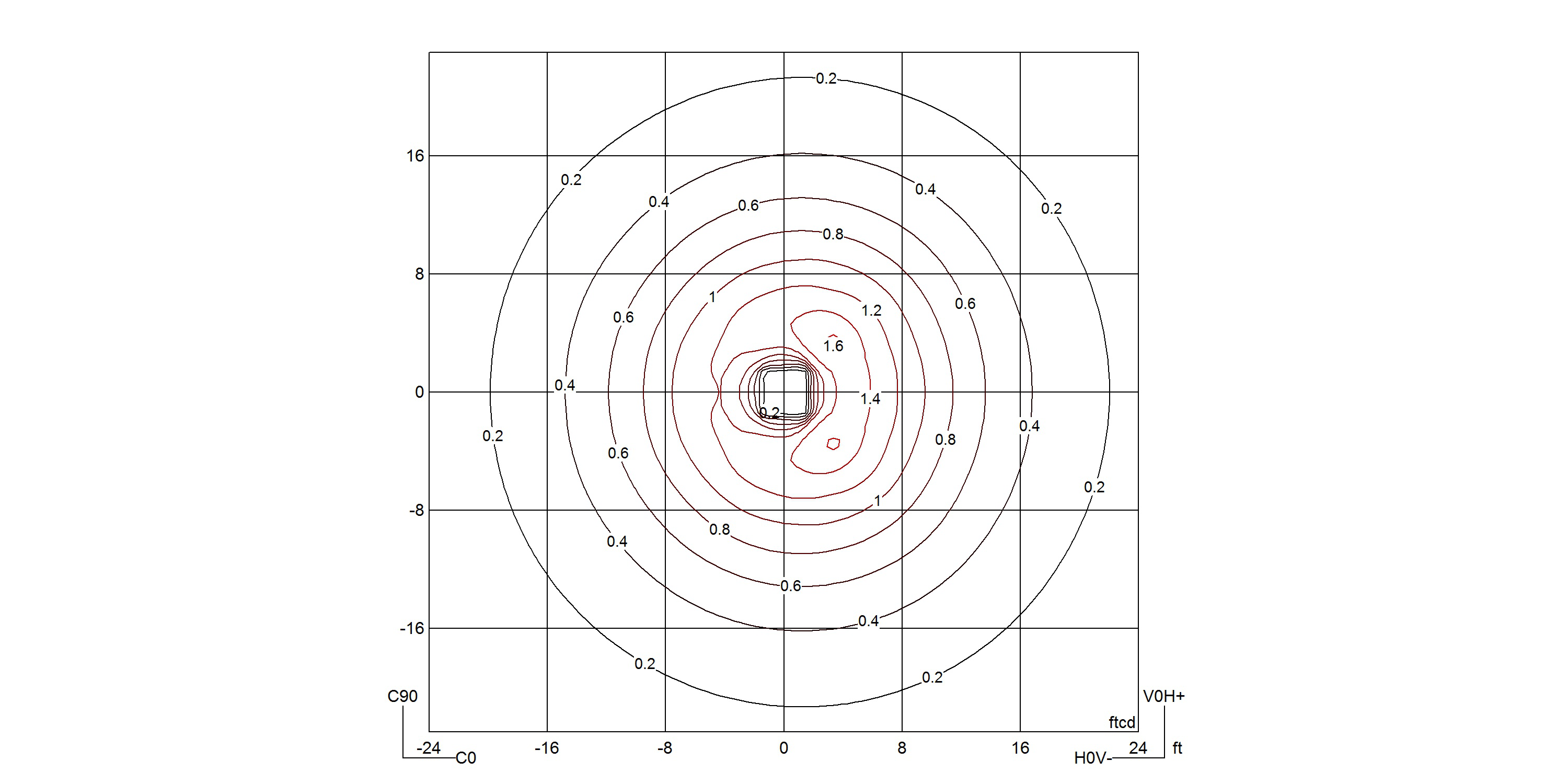

Photometric data

Photometric Lvk KHA 5 LED 1
Photometric Lvk KHA 5 LED 2
Photometric Lvk KHA 5 LED 3
Photometric Lvk KHA 5 LED 4

Technical drawings

Tech Design KHA 5 LED

OPTIONAL ACCESSORIES

KHA 5

Concrete mounting adaptor with stainless steel plate and galvanised steel rods
14049320
Concrete mounting adaptor with stainless steel plate and galvanised steel rods
Internal aluminium cowl limits horizontal light output to 200°
14049720
Internal aluminium cowl limits horizontal light output to 200°
