TYK+ 30 C/I

IN
TYK+ 30 C/I
TYK+ 30 C/I
TYK+ 30 C/I
TYK+ 30 C/I
TYK+ 30 C/I - 1
TYK+ 30 C/I - 2
TYK+ 30 C/I - 3
TYK+ 30 C/I - 4
Part number 078062
Lampholder: LED
Wattage: 85 W
Finishing: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 3000
Optic: Circular Intensive
Beam angle: 10°
Nema Type: 2H x 2V
IESNA Type: Type V
BUG Rating: B4-U0-G0
Luminaire lumen output [lm]: 6547 lm
L: L90
B: B10
Lifetime: 50000 h
cULus:
Voltage: 120/277 V

Description

  • Long-lasting floodlighting for landscape and any architecture, also applying dynamic color. Fixtures consist of:
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing, and adjustable stainless steel mounting bracket.
  • - Stainless steel graduated ferrules for aiming purposes on both sides of the fixture.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transparency polycarbonate optics for optimized light transmission.
  • - Circular Intensive optics (C/I).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Standard tear-proof nickel-plated brass cable gland M20x1.5 for cables Ø0.4” - Ø0.55”.
  • - The luminaire may be configured with numerous options and multiple standard finishes. Not all options are available in all configurations. Consult factory for more information about specification sheet details to build your light.
  • - Product meets Buy American Act (BAA) requirements within ARRA.
  • - 5-year warranty.

Photometric data

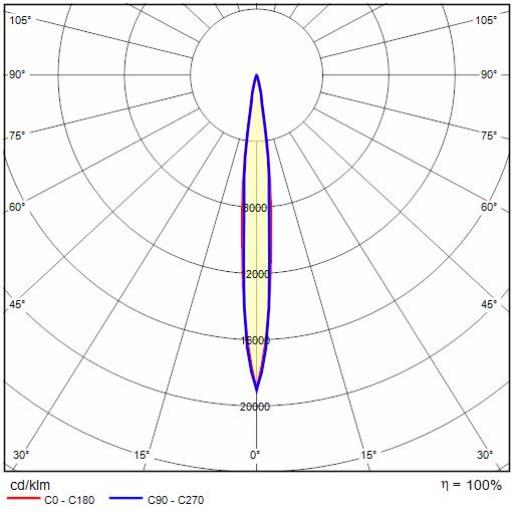

Photometric Lvk TYK+ 30 C/I 1

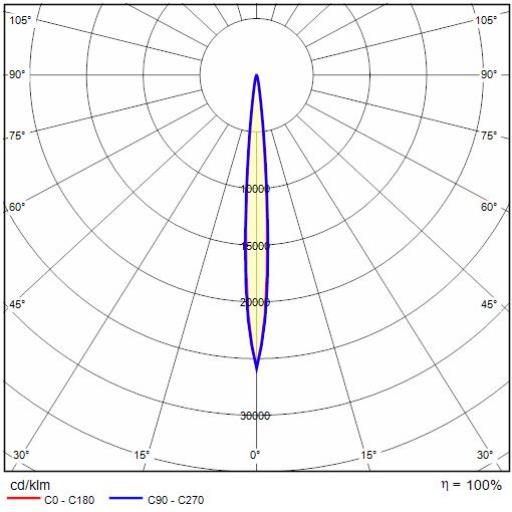

Photometric Lvk TYK+ 30 C/I 2

Technical drawings

Tech Design TYK+ 30 C/I

OPTIONAL ACCESSORIES

Optical accessories

Anti-glare snoot
3107469
Anti-glare snoot
Black

Wall mount

JBox cover plate - Iron gray
07959
JBox cover plate - Iron gray
Iron gray

Surface mount

Extra rotation bracket +55°/-90°
3108558
Extra rotation bracket +55°/-90°
Stainless steel

Pole mount

Two-axis rotation bracket for gliding support
3107473
Two-axis rotation bracket for gliding support
Stainless steel
Gliding support made of painted aluminium for the installation on Ø 3 9/16" / Ø 90 mm posts
14099696
Gliding support made of painted aluminium for the installation on Ø 3 9/16" / Ø 90 mm posts
Iron gray
Pole 8’ Ø 3.5”
71408353
Pole 8’ Ø 3.5”
Iron gray
Pole 10' Ø 3.5"
71410353
Pole 10' Ø 3.5"
Iron gray
Pole 12' Ø 3.5"
71412353
Pole 12' Ø 3.5"
Iron gray
Pole 14' Ø 3.5"
71414353
Pole 14' Ø 3.5"
Iron gray
Pole 16' Ø 3.5"
71416353
Pole 16' Ø 3.5"
Iron gray
