TYK+ 30 C/M

IN
TYK+ 30 C/M
TYK+ 30 C/M
TYK+ 30 C/M
TYK+ 30 C/M
TYK+ 30 C/M - 1
TYK+ 30 C/M - 2
TYK+ 30 C/M - 3
TYK+ 30 C/M - 4
Part number 078065
Lampholder: LED
Wattage: 85 W
Finish: AN-96 / Iron gray / Textured
Degree of protection: IP66
CRI: 80
Kelvin: 4000
Optic: Medium circle reflector
Beam angle: 34°
Nema Type: 4H x 4V
IESNA Type: Type V
BUG Rating: B4-U0-G0
Luminaire lumen output (lm): 7899 lm
L: L90
B: B10
Lifetime: 50000 h
cULus:
Voltage: 120/277 V

Description

  • - Long-lasting energy-efficient flood and accent light series for lighting landscapes, trees, columns, monuments, and architectural details.
  • - Multi-step powder-coat painting process, optimized against UV rays and corrosion.
  • - Copper-free precision die-cast aluminum housing, and adjustable stainless steel mounting bracket.
  • - Stainless steel graduated ferrules for aiming purposes on both sides of the fixture.
  • - Extra-clear, tempered, silk-screened, flat glass diffuser.
  • - Custom molded, anti-aging gasket(s).
  • - Stainless steel external hardware.
  • - Custom MCPCB utilized to maximize heat dissipation and promote long LED life.
  • - High-transmittance transparent optics.
  • - NEMA 4H x 4V light distribution (C/M).
  • - Input voltage: 120-277 V (50 / 60 Hz), integral 0-10 V dimming driver.
  • - Standard tear-proof nickelled brass cable gland M20x1.5 for cables Ø0,4” - Ø0,55”.
  • - Five optional finishes available. Add finish suffix to any part number for textured Black (BK-81), Iron gray (AN-96), Aluminum metallic (GR-94), White (WH-87), Iron rust (RB-10) when not standard.
  • - Consult factory for dimming options, marine-grade, custom finishes (please specify RAL color), and non-cataloged CCT (Kelvin) options including static colors.
  • - Consult factory for additional optic options.
  • - Product meets Buy American Act requirements within ARRA.
  • - 5-year warranty.

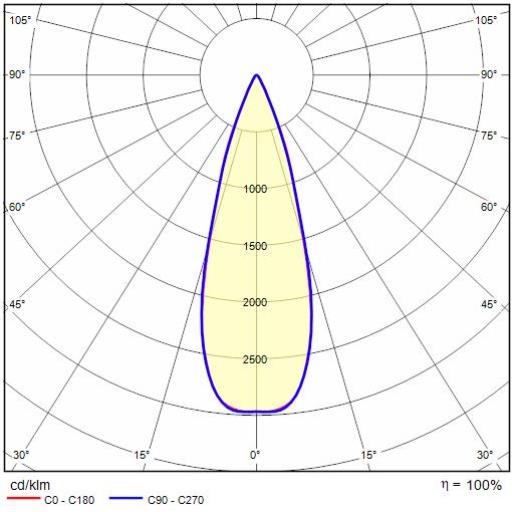

Photometric data

Photometric Lvk TYK+ 30 C/M 1

Technical drawings

Tech Design TYK+ 30 C/M

OPTIONAL ACCESSORIES

Wall mount

JBox cover plate - Iron gray
07959
JBox cover plate - Iron gray
Iron gray

Surface mount

Extra rotation bracket +55°/-90°
3108558
Extra rotation bracket +55°/-90°
Stainless steel

Pole mount

Two-axis rotation bracket for gliding support
3107473
Two-axis rotation bracket for gliding support
Stainless steel
Gliding support made of painted aluminium for the installation on Ø 3 9/16" / Ø 90 mm posts
14099696
Gliding support made of painted aluminium for the installation on Ø 3 9/16" / Ø 90 mm posts
Iron gray
Pole 8’ Ø 3.5”
71408353
Pole 8’ Ø 3.5”
Iron gray
Pole 10' Ø 3.5"
71410353
Pole 10' Ø 3.5"
Iron gray
Pole 12' Ø 3.5"
71412353
Pole 12' Ø 3.5"
Iron gray
Pole 14' Ø 3.5"
71414353
Pole 14' Ø 3.5"
Iron gray
Pole 16' Ø 3.5"
71416353
Pole 16' Ø 3.5"
Iron gray
